Summary of Contents for American Lifan QP150T-26

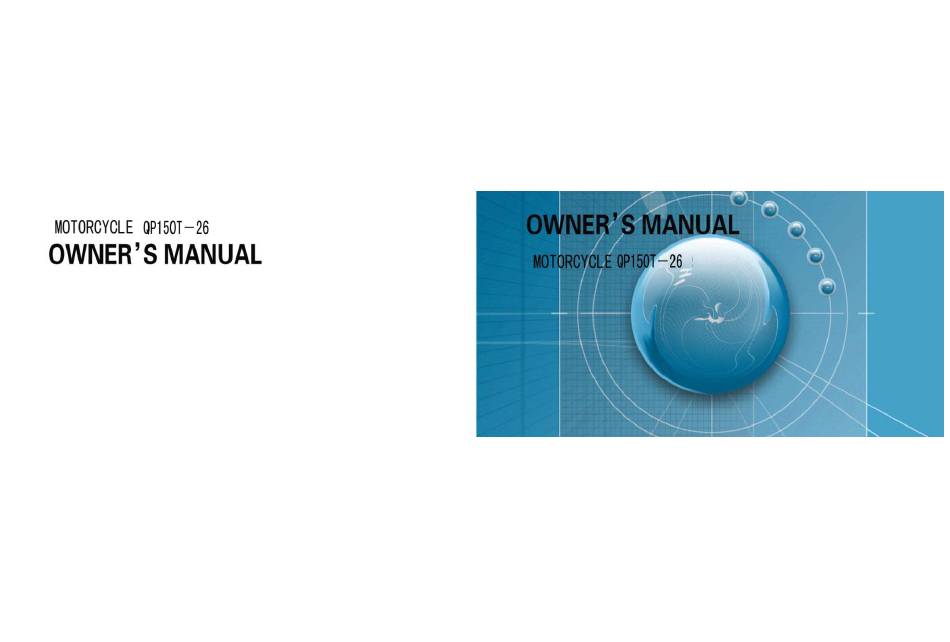

  • Page 1 IMPORTER American Lifan, Inc. 1930 S. Rochester Ave, Unit 107 Ontario, CA 91764 909-605-6999 tonysun218@gmail.com JIANGMEN QIPAI MOTORCYCLE CO., LTD.
  • Page 2: Important Notices

    PREFACE Thank you for choosing QIPQI motorcycle. May you enjoy riding all time. The manual contains the necessary instructions and guidance with respect to the operation and maintenance of the motorcycle, and BE SURE TO READ IT CAREFULLY BEFORE YOU RIDE THE MOTORCYCLE. Proper operation and maintenance can guarantee a safe riding to minimize troubles of the motorcycle and keep it in a sound condition, which can extend the engine service life.
  • Page 3: Table Of Contents

    CONTENTS MOTORCYCLE SAFE RIDING Safe Riding Rules ……… ………………………………………… 1 Clear away Carbon Deposit(EP)……………………………12 Protective Cloths……………………………………………………1 Spark Plug(EP)…………………………………………………12 Refitting……………………………………………………………1 Air Cleaner(EP)……………………………………………12 Loading……………………………………………………………2 Exhaust Muffler(EP)……………………………………………12 Accessories…………………………………………………………2 3-Way Catalytic Converter (Optional)(EP)…………………13 Operation of Throttle………………………………………………13 GENERAL INFORMATION Parts Location………………………………………………………3 Idle Speed of Carburetor (EP) ……………………………………13 VIN Record…………………………………………………………4 Check Leaks along Air Supply (...
  • Page 4: Motorcycle Safe Riding

    MOTORCYCLE SAFE RIDING SAFE RIDING RULES WARNING Motorcycle riding requires special efforts on your part to ensure safety. Know these requirements before you ride. ● Always make a pre-ride inspection before you start the engine. You may prevent accident or equipment damage. ●...
  • Page 5: Loading

    motorcycle, please write us. The refitment can be done with permission of the Co. Otherwise, the user will take the consequences. LOADING WARNING Addition of accessories and cargo may reduce the motorcycle’s stability, performance and safe operating speed. ●Keep cargo and accessory weight lower and close to the center of the motorcycle. Load weight equally on both sides to minimize imbalance. As weight is located further from the motorcycle’s center of gravity, handling is proportionally affected.
  • Page 6: General Information

    GENERAL INFORMATION PARTS LOCATION (Fig. 1-3) Fig. 1 (Right-view) Fig. 2 (Left-view) 1. Pillion handrail 2. Trunk 3. Pillion footrest 4. VIN 5. Rear 1. Rearview mirror 2. Helmet hook 3. Carburetor 4. Rider mat 5. Seat 6. Rear brake 7. Air cleaner 8.
  • Page 7: Vin Record

    Fig. 3 ①Rearview mirror ②Dimmer sw. ③Meter ④Emergency sw. ⑤Turn signal sw. ⑥Horn button ⑦Starter button ⑧Throttle grip VIN RECORD (Fig. 4-6) VIN: Engine Code: Please fill the VIN and engine code of your motorcycle in the blank below. They will help order spare parts and find out the vehicle when stolen Fig.
  • Page 8: Fuel And Engine Oil(Ep

    ③ The VIN is stamped on the plate of front trunk (Fig. 6). FUEL AND ENGINE OIL (EP) Fuel Selection Fuel is a key factor in deciding the exhaust emissions from the engine, so selection of fuel must follow the rules below. Selected fuel must be unleaded gasoline of 87 octane or higher.
  • Page 9: Right Handlebar Controls

    RIGHT HANDLEBAR CONTROLS (Fig. 9 Front Brake Lever Grasping in the lever will apply the front brake. Throttle Grip The grip is used to control the engine power. Turning toward in the grip will increase fuel supply, while turning toward out it will decrease fuel supply. Emergency Switch In an emergency, depressing the switch to “...
  • Page 10: Refueling And Cap

    REFUELING AND FUEL FILLER CAP Opening of Cap (Fig. 12) The fuel tank is located under the seat.  Open the seat with the ignition switch key.  Turn the fuel filler cap counterclockwise, and remove the cap.  To reinstall the cap, align the cap limit with that one of fuel tank mouth, then depress it onto the inlet in position.
  • Page 11: Operation Guide

    OPERATION GUIDE PRE-RIDE INSPECTION Inspect your motorcycle every time before you ride it. The items listed here will only take a few minutes to inspect, and in the long run they can save time, expense, and possibly your life. 1. Fuel level - fill fuel tank when necessary. Check for leaks. 2.
  • Page 12: Breaking-In

    4.Open the throttle a little by turning the throttle grip and then depress the start button. Release the button “ ” as soon as the engine starts up. NOTE Do not use the electric starter for more than 5 seconds at a time. Release the starter button “ ” for approximately 10 seconds before pressing it again.
  • Page 13: Braking And Parking

    2. Standing on the left side of the motorcycle, push it forwards with hands griping the handlebars, the motorcycle leaves the center stand’s support. 3. Mount the motorcycle from the left of it with at least one foot standing on the ground to keep balance. 4.
  • Page 14 ① Clean more frequently when riding in unusual wet or dusty areas. NOTES: ②At higher odometer readings, still follow the frequency intervals established in this manual. Regular service ODOMETER READING, km (Note ② ) I T E M Whichever 1,000km 4,000km 8,000km 12,000km...
  • Page 15: Clear Away Carbon Deposit(Ep

    CLEAR AWAY CARBON DEPOSIT(EP) Clear away carbon deposit around the spark plug and piston ring, on the piston top, in the piston ring slot and combustion chamber regularly. SPARK PLUG (EP) (Fig. 22) Spark Plug Type:A7RTC (BPR7HS) Check and Replace ...
  • Page 16: 3-Way Catalytic Converter (Optional)(Ep

    3-WAY CATALYTIC CONVERTER (Optional) (EP) 3-way catalytic converter is mounted on the exhaust system of motorcycle. It is designed to decrease contaminations such as CO, HC, NOx, etc. by redox reaction to catalyst when the exhaust gases flow through the device.
  • Page 17: Check Leaks Along Air Supply ( Ep

    3. Adjust idle speed with the throttle stop screw to set the idle speed at 1700r/min as follows: Turn the screw in the direction A will increase idle speed, while will decrease it in the direction B. WARNING Often check to see that no any impurity such as dirt blocks the balance pipe of carburetor to avoid an accident occurring.
  • Page 18: Rear Brake

    screws, remove the cover, add brake fluid up to UPPER level mark. If any doubt, see your dealer for help. WARNING Apply the specified brake fluid, or braking effectiveness and riding safety will be affected adversely. Brake fluid may case irritation.
  • Page 19: How To Check And Replace Brake Pad

    10~20mm. 2. Turning the adjusting nut in direction A will decrease the free play, and in direction B increase the free play. NOTE Make sure the curved slot in the adjusting nut corresponds to the circular surface of the brake arm pin after making final free play adjustment.
  • Page 20: Front Wheel

    may result in slipping wheel on the ground or coming off from the rim. When the tread depth in the middle section of tyres reached limits below, please replace them. Tread Depth Limits Front tyre 1.5mm Rear tyre 2.0mm FRONT WHEEL (Fig.
  • Page 21: Fuse

    For adjustment of the rear brake, refer to related items prescribed in the manual. FUSE (Fig. 34) The fuse will blow to protect the circuit automatically in the case of troubles such as a short circuit or an overload trouble. After the troubleshooting, fit a new fuse available in the fuse box.
  • Page 22: Troubleshooting, Storage And Optional Parts

    When storing the vehicle, the battery should be removed in following order: 1 . Open the battery box cover ①. 2 . First disconnect the negative lead “-” from the battery terminal ③, and then the positive lead “+” ④. 3 .
  • Page 23: Removal From Storage

    4. Start the engine, and allow it to run for several minutes. CAUTION Prevent the muffler from getting in water, the spark plug from being wetted down when washing the vehicle. Storage Take some measures as following when subjecting the vehicle to 60-day or more storage. 1.
  • Page 24: Electric Diagram

    ELECTRIC DIAGRAM 12V25/25W...
  • Page 25: Specifications

    SPECIFICATIONS Vehicle Model QP150T-26 Displacement, ml 149.5 1. DIMENSIONS & PERFORMANCE Compression ratio 9.5:1 Overall dim.(L× B× H), mm 1950× 720× 1150 Starting mode Electric starter/Kick-starter Steering bar angle, ° Ignition system Ground clearance, mm Max. net power, kW/r/min 5.8/7500 Turning circle dia., mm...
