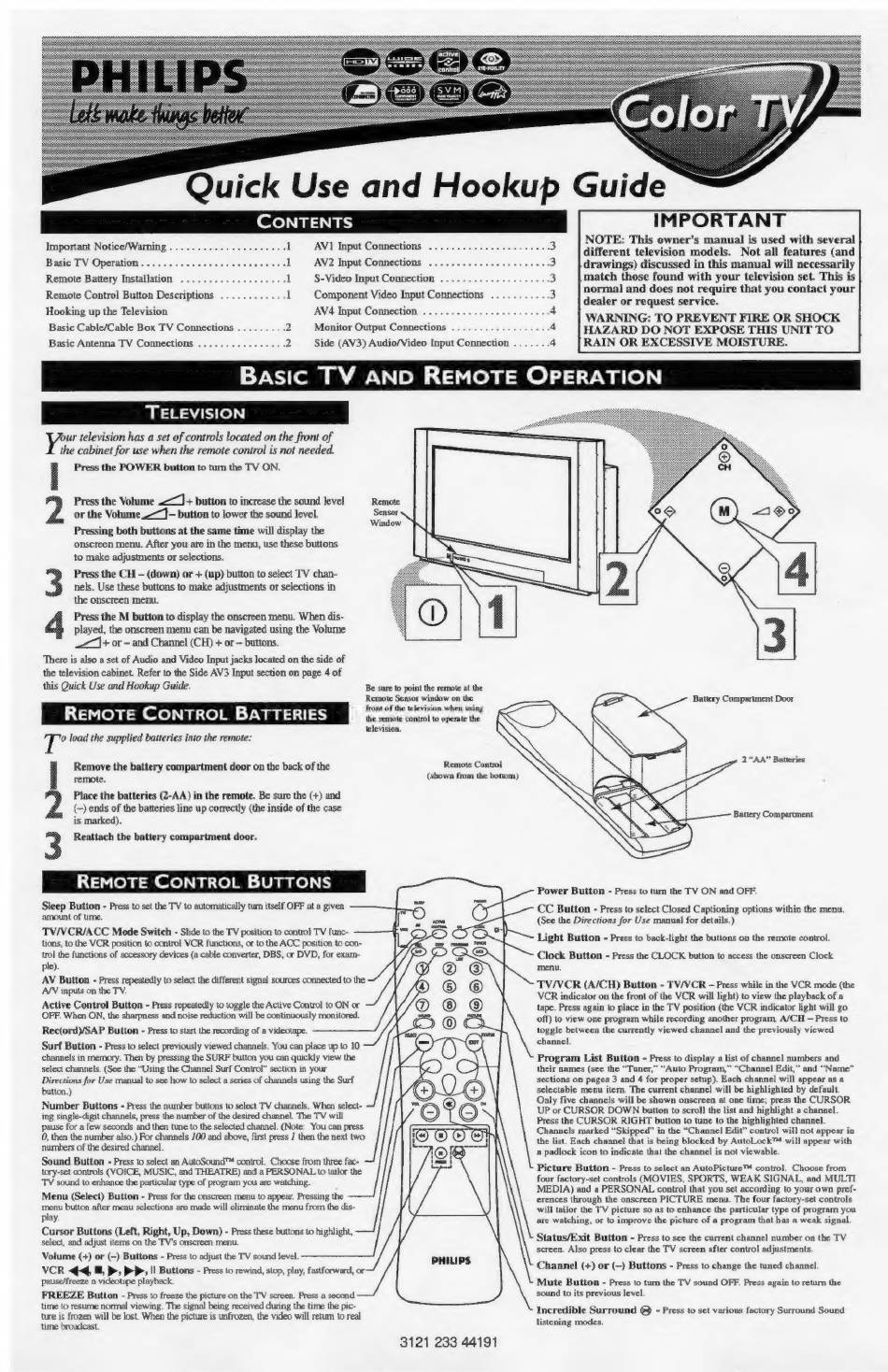

Quick Use and Hookup Guide
~
IMPORTANT
NOTE: This owner's manual is used with several
een
pocce! Waris '
AV1 Input Eorsectons Ae
er ye ee
3
different television models.
Not all features (and
Basic TV Operation
AV2 Input Connections
.............-....---- 3
drawings) discussed in this manual will necessarily
Remote Battery Installation ................055 1 —_ S-Video Input Connection ...........--..00055 3
match those found with your television set. This is
Remote Control Button Descriptions ............ 1
Component Video Input Connections
........... 3
normal and does not SEES. that you contact your
Hooki
erie
AVE Tonat
C
fi
4
dealer or request service.
ooking up
the Television
INE
CONMPCTIOE 5 /.sisiv yess so audivr ice waverd
WARNING: TO PREVENT FIRE OR SHOCK
Basic Cable/Cable Box TV Connections ........ . 2
Monitor Output Connections ..............++-- 4
HAZARD
DO NOT EXPOSE THIS UNIT vi
RAIN OR EXCESSIVE MOISTURE.
Basic Antenna TV Connections .
sia
Side (AV3) Audio/Video Input Connection . . .
sic TV AND REMOTE OPERATION
TELEVISION
b ged television has a set of controls located on the front of
the cabinet for use when the remote control is not needed.
| Press the POWER button to turn the TV ON.
or the Volume _—1J- button to lower the sound level.
Pressing both buttons at the same time will display the
onscreen menu. After you are in the menu, use these buttons
to make adjustments or selections.
Press the CH — (down) or + (up) button to select TV chan-
nels. Use these buttons to make adjustments or selections in
the onscreen menu.
Press the M button to display the onscreen menu. When dis-
played, the onscreen menu can be navigated using the Volume
1] + or - and Channel (CH) + or — buttons.
There is also a set of Audio and Video Input jacks located on the side of
the television cabinet. Refer to the Side AV3 Input section on page 4 of
this Quick Use and Hookup Guide.
Be sure to point the remote at the
Remote Sensor window on the
REMOTE CONTROL BATTERIES
acces
2? Press the Volume <<] + button to increase the sound level
Battery Compartment Door
television.
i fe load the supplied batteries into the remote:
2 "AA" Batteri
Remove the battery compartment door on the back of the
Remote Control
aoe
remote.
(shown from the bottom)
(-) ends of the batteries line up correctly (the inside of the case
is marked).
3
Reattach the battery compartment door.
REMOTE CONTROL
BUTTONS
Sleep Button - Press to set the TV to automatically tum itself OFF at a given
amount of time.
TV/VCR/ACC Mode Switch - Slide to the TV position to control TV func-
tions, to the VCR position to control VCR functions, or to the ACC position to con-
trol the functions of accessory devices (a cable converter, DBS, or DVD, for exam-
ple).
AV Button - Press repeatedly to select the different signal sources connected to the
A/V inputs on the TY.
Active Control Button - Press repeatedly to toggle the Active Control to ON or
OFF. When ON, the sharpness and noise reduction will be continuously monitored.
Rec(ord)/SAP Button - Press to start the recording of a videotape.
Surf Button - Press to select previously viewed channels. You can place up to 10
channels in memory. Then by pressing the SURF button you can quickly view the
select channels, (See the "Using the Channel Surf Control" section in your
Directions for Use manual to see how to select a series of channels using the Surf
button.)
Number Buttons - Press the number buttons to select TV channels. When select-
ing single-digit channels, press the number of the desired channel. The TV will
pause for a few seconds and then tune to the selected channel. (Note: You can press
O, then the number also.) For channels /00 and above, first press J then the next two
numbers of the desired channel.
Sound Button - Press to select an AutoSound™ control. Choose from three fac-
tory-set controls (VOICE, MUSIC, and THEATRE) and a PERSONAL to tailor the
TV sound to enhance the particular type of program you are watching.
Menu (Select) Button - Press for the onscreen menu to appear. Pressing the
menu button after menu selections are made will eliminate the menu from the dis-
Play.
Cursor Buttons (Left, Right, Up, Down) - Press these buttons to highlight,
select, and adjust items on the TV's onscreen menu.
Volume (+) or (—) Buttons - Press to adjust the TV sound level.
VCR <4<4, 8, >, PP, || Buttons - Press to rewind, stop, play, fastforward, or
pause/freeze a videotape playback.
FREEZE Button - Press to freeze the picture on the TV screen. Press a second
time to resume normal viewing. The signal being received during the time the pic-
ture is frozen will be lost. When the picture is unfrozen, the video will retum to real
time broadcast.
2
Place the batteries (2-AA) in the remote. Be sure the (+) and
Battery Compartment
Power Button - Press to tum the TV ON and OFF.
CC Button - Press to select Closed Captioning options within the menu.
(See the Directions for Use manual for details.)
Light Button - Press to back-light the buttons on the remote control.
Clock Button - Press the CLOCK button to access the onscreen Clock
menu.
TV/VCR (A/CH) Button - TV/VCR - Press while in the VCR mode (the
VCR indicator on the front of the VCR will light) to view the playback of a
tape. Press again to place in the TV position (the VCR indicator light will go
off) to view one program while recording another program. A/CH — Press to
toggle between the currently viewed channel and the previously viewed
channel.
Program List Button - Press to display a list of channel numbers and
their names (see the "Tuner," "Auto Program," "Channel Edit," and "Name"
sections on pages 3 and 4 for proper setup). Each channel will appear as a
selectable menu item. The current channel will be highlighted by default.
Only five channels will be shown onscreen at one time; press the CURSOR
UP or CURSOR DOWN button to scroll the list and highlight a channel.
Press the CURSOR
RIGHT button to tune to the highlighted channel.
Channels marked "Skipped" in the "Channel Edit" control will not appear in
the list. Each channel that is being blocked by AutoLock™ will appear with
a padlock icon to indicate that the channel is not viewable.
Picture Button - Press to select an AutoPicture™ control.
Choose from
four factory-set controls (MOVIES, SPORTS, WEAK SIGNAL, and MULTI
MEDIA) and a PERSONAL control that you set according to your own pref-
erences through the onscreen PICTURE menu. The four factory-set controls
will tailor the TV picture so as to enhance the particular type of program you
are watching, or to improve the picture of a program that has a weak signal.
Status/Exit Button - Press to see the current channel number on the TV
screen. Also press to clear the TV screen after control adjustments.
Channel (+) or (-) Buttons - Press to change the tuned channel.
Mute Button - Press to turn the TV sound OFF. Press again to return the
sound to its previous level.
Incredible Surround ® - Press to set various factory Surround Sound
listening modes.
3121 233 44191
