Summary of Contents for MARINE DATA MD77HRB
- Page 1 …navigation with innovation USER MANUAL MD77HRB F077058 - HEADING REPEATER MD77HRB-MA-v04r02 2015-09-04 ENGLISH...
-
Page 3: Table Of Contents
MD77HRB CONTENTS MD77HRB HEADING REPEATER ............5 DOCUMENT ..................6 About This Manual ..................6 NOTICE ....................7 Copyright ...................... 7 DESCRIPTION ..................8 PRINCIPLE OF OPERATION .............. 9 APPLICATION ................... 10 SPECIAL FEATURES ............... 10 MAJOR DIMENSIONS ..............11 INSTALLATION ................. - Page 4 12.2 Fault-Finding ....................19 12.2.1 MD77HRB does not operate ............19 12.2.2 MD77HRB aligns to 000° but does not follow the source heading .. 19 12.2.3 Display illumination not functioning ..........19 12.2.4 Display illumination flashing or Alarm indications present ....19 12.3 Technical Support ..................
-
Page 5: Md77Hrb Heading Repeater

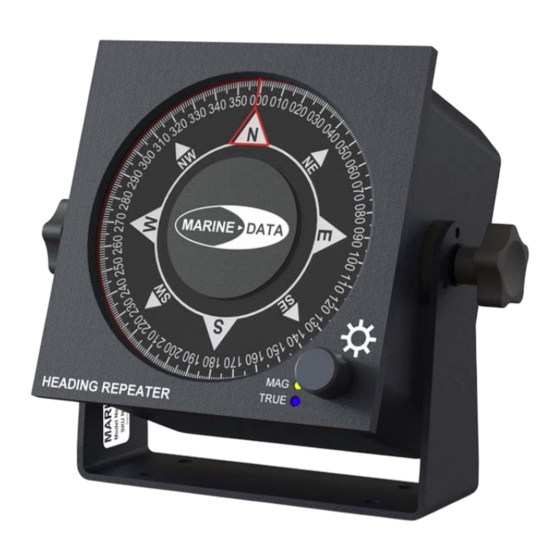

MD77HRB 1 MD77HRB HEADING REPEATER Front view: Bulkhead Bracket Mount (optional extra) Rear view: Panel mounting (supplied as standard) -
Page 6: Document
About This Manual This Manual provides installation, operating Instructions and fault-finding procedures for the MARINE DATA MD77HRB Heading Repeater. After installation, this manual should remain with the vessel to which it relates. This manual may also be made available in electronic Portable Document Format (PDF). -
Page 7: Notice
Vittlefields Technology Centre Forest Road NEWPORT Isle of Wight PO30 4LY UNITED KINGDOM tel: +44 (0)1983 822180 email: info@marine-data.co.uk fax +44(0)1983 822181 web: www.marine-data.co.uk MARINE DATA SYSTEMS LIMITED reserves the right to make changes to its products and specifications without notice... -
Page 8: Description
MD77HRB 4 DESCRIPTION The MD77HRB is a rotating dial Compass Heading Repeater. It is designed to display Ship’s heading as part of a Gyro-Compass or Transmitting Magnetic Compass System, receiving data via a NMEA 0183 digital transmission. The MD77HRB has a dial of 118mm diameter marked in 1 degree increments with numeric values every 10 degrees plus cardinal and inter-cardinal markers. -
Page 9: Principle Of Operation
MD77HRB 5 PRINCIPLE OF OPERATION The MD77HRB accepts serial azimuth data from a Gyro-Compass or Transmitting Magnetic Compass (TMC) in digital format using standard NMEA 0183 (IEC61162-1) True or Magnetic sentences. The input is processed by electronic circuitry contained within the Repeater enclosure, powered from 18 V to 32 V dc derived from the ship’s supply. -
Page 10: Application
MD77HRB 6 APPLICATION The MD77HRB displays True or Magnetic Heading Data transmitted from NMEA 0183 (IEC 61162-1) compatible marine equipment (Gyro-Compass, TMC, EMC, GPS Compass etc.) The following NMEA 0183 sentences (in priority order) may be used to display Heading:... -
Page 11: Major Dimensions
MD77HRB 8 MAJOR DIMENSIONS All dimensions mm • Panel Mount (supplied as standard) • Bulkhead Mount (optional) -
Page 12: Installation
Review the system cable conductors and their function. Identify the vessel’s wiring functions. It is recommended that a note be made of the vessel’s wiring functions for future reference. Connect the MD77HRB in accordance with table 9.3 - Pin Connections (by function). -
Page 13: Pin Connections (By Function)
MD77HRB Pin Connections (by function) Cable core Pin: Type: Function: Description: colour Positive Input +24 V dc Supply (Main) Input Negative 24 V dc Supply Return Optional External Dimmer Input. 0-24 V 0 V = Minimum Illumination; Rotary Input 24 V = Maximum Illumination... -
Page 14: Pin Identification
MD77HRB Pin Identification Pin Idents of the 15-pin fixed D-type socket connector (view looking on the rear panel of the MD77HRB): Typical Wiring Diagram (Shown with optional Junction Box F069103 and Remote Dimmer SS37120) -
Page 15: Commissioning The System
Ensure that the installation complies with section 9 - Installation. Apply system power (24 V dc) to the MD77HRB. The MD77HRB Heading Repeater will initially align to 000° degrees; it will then adopt the heading which is being transmitted from the heading source. -
Page 16: Operation
MD77HRB 11 OPERATION 11.1 Operator Controls A. Back-lit Dial 000° - 359° B. Lubber Line C. Magnetic Heading Indicator (Yellow) D. True Heading Indicator (Blue) E. Rotary Dimmer Control Knob and Self-Test Button... -
Page 17: Normal Operation
If the type of heading available changes from True to Magnetic or from Magnetic to True, the MD77HRB will automatically adjust to display the available Heading Type. If both True and Magnetic Heading data are available, True Heading will be displayed as a higher priority. -
Page 18: Alert: Loss Of Data
True and Magnetic Indicators will be illuminated. 11.5 Under Voltage Lock-out If the voltage of the power supply to the MD77HRB falls below a preset limit of 15 V, the operation of the MD77HRB is locked-out to prevent potential inaccurate display of heading. -
Page 19: Maintenance And Fault-Finding
12.1 Maintenance No scheduled maintenance is required. It is recommended to gently wipe away any accumulated dust periodically. Note: The MD77HRB is a sealed unit and has no user-serviceable parts inside. Breaking the factory seal will invalidate the warranty. 12.2 Fault-Finding 12.2.1... -
Page 20: Technical Support
MD77HRB 12.3 Technical Support If further technical support is required then please contact Marine Data Technical Support: • By email: support@marine-data.co.uk • Through our website: www.marine-data.co.uk All technical support enquiries must include the following basic equipment information: About your MARINE DATA Equipment: MARINE DATA Equipment Model number (e.g. -
Page 21: Specifications
MD77HRB 13 SPECIFICATIONS 13.1 Physical Weight: 1.25 kg (with bulkhead mounting bracket) (Bulkhead mounted): Width 200 mm; Height 166 mm; Dimensions: Depth 101 mm Fascia Dimensions: 144 x 144 x 6 mm Deep Mounting: Panel-mounted or optional bulkhead mounting bracket 15-way ‘D’... -
Page 22: Environmental
Supplied with 2.5 m of data cable terminated with a 15-pin D-sub type connector Illumination colour and relative brightness levels are factory adjustable. (subject to MOQ) If spare parts are required then please contact either your supplier or MARINE DATA. MARINE DATA reserves the right to makes changes to its products and specifications... -
Page 23: Spare Parts And Accessories
MD77HRB 14 SPARE PARTS AND ACCESSORIES MD Part No. Description: Illustration: MD77TB Bulkhead Mounting F0077100 Trunnion Bracket (Option) SS20001 Data Cable Assembly, 2.5 m MD01/PMD SS37120 Panel Mount Remote Dimmer Assembly MD69CBW F069103 8-Way Waterproof Junction Box IP65 MD96JB8 F096020... -
Page 24: Grounding And Shielding
MD77HRB 15 GROUNDING AND SHIELDING This repeater is designed to be grounded via an M4 earth stud provided on the rear panel. This earth stud provides the electrical contact for protective earth bonding. The power/data connector has a conductive outer casing which, when mated, connects to the unit enclosure. -
Page 25: Glossary Of Terms
MD77HRB 17 GLOSSARY OF TERMS Term Description Electro-Magnetically Compatibility specifically measured against MIL-SPEC-461 Electromagnetic Compass (fluxgate coil Compass) Maritime navigation and radio communication equipment and systems - EN60945 General requirements. Methods of testing and required test results. Minimum Order Quantity... -
Page 26: About Marine Data
In the leisure industry, MARINE DATA is the choice again; you will find our equipment on the liners of the world’s leading leisure operators - including P&O™ and Disney®. In the fishing industry, MARINE DATA is there to help the world’s fishing skippers harvest the... - Page 27 MD77HRB NOTES...
- Page 28 MARINE DATA SYSTEMS LIMITED Vittlefields Technology Centre Forest Road NEWPORT Isle of Wight PO30 4LY UNITED KINGDOM tel: +44 (0)1983 822180 fax +44(0)1983 822181 web: www.marine-data.co.uk email: info@marine-data.co.uk...
