ACE RC TG-6000 Instruction Manual

HEADING LOCK GYRO
INSTRUCTION MANUAL
INTRODUCTION
TG-6000 is designed for mini electric R/C helicopters.
Small-sized and light-weighted make it ideal and convenient
for installation on your mini electric R/C helicopter. Both
heading lock mode and normal mode are adopted. Also you
can use a digital servo for more precise tail control.
FEATURES
Heading lock mode and normal mode
Remote-controlled gain
Analog/digital servo compatible
Delay function
Simple wire connection for easy installation
Small and light weight
SPECIFICATIONS
Item No. 8072
Product Name TG-6000
Control
Digital Proportional Integration Control
Sensor
Piezoelectric Vibrating Gyroscope
Voltage
DC 4.8~6.0V
-5 ~ 50˚C
Operation Temperature
Dimension mm 25.9 × 24.9 × 7
Weight g
13.5
FUNCTION
AS/DS switch
TG-6000 is compatible with analog servo as well as
digital servo. The AS means Analog Servo while the
DS means Digital Servo. Be sure to set the switch at
AS position when using an analog servo, or the servo
will be easily destroyed.
Gyro operating direction
Switch the gyro operating direction. This setting
depends mostly on the helicopter, servo, and the
installation position of the gyro itself. Wrong
setting will result in a dangerous situation.
End point adjustment dial
Adjusting the rudder servo travel-
ing to the limit of mechanism and
make sure that the servo traveling
range is no greater than the
linkage.
Delay adjustment
With high speed servo such as
C0915, it is recommended to set
the delay to "0" position. For
slower servo, hunting occurs at
pirouette stop. Increase the delay
value until the hunting disappears.
With too much delay value, the tail
will easily drift and hard to control.
ACE RC
TG-6000
Product no. #8072

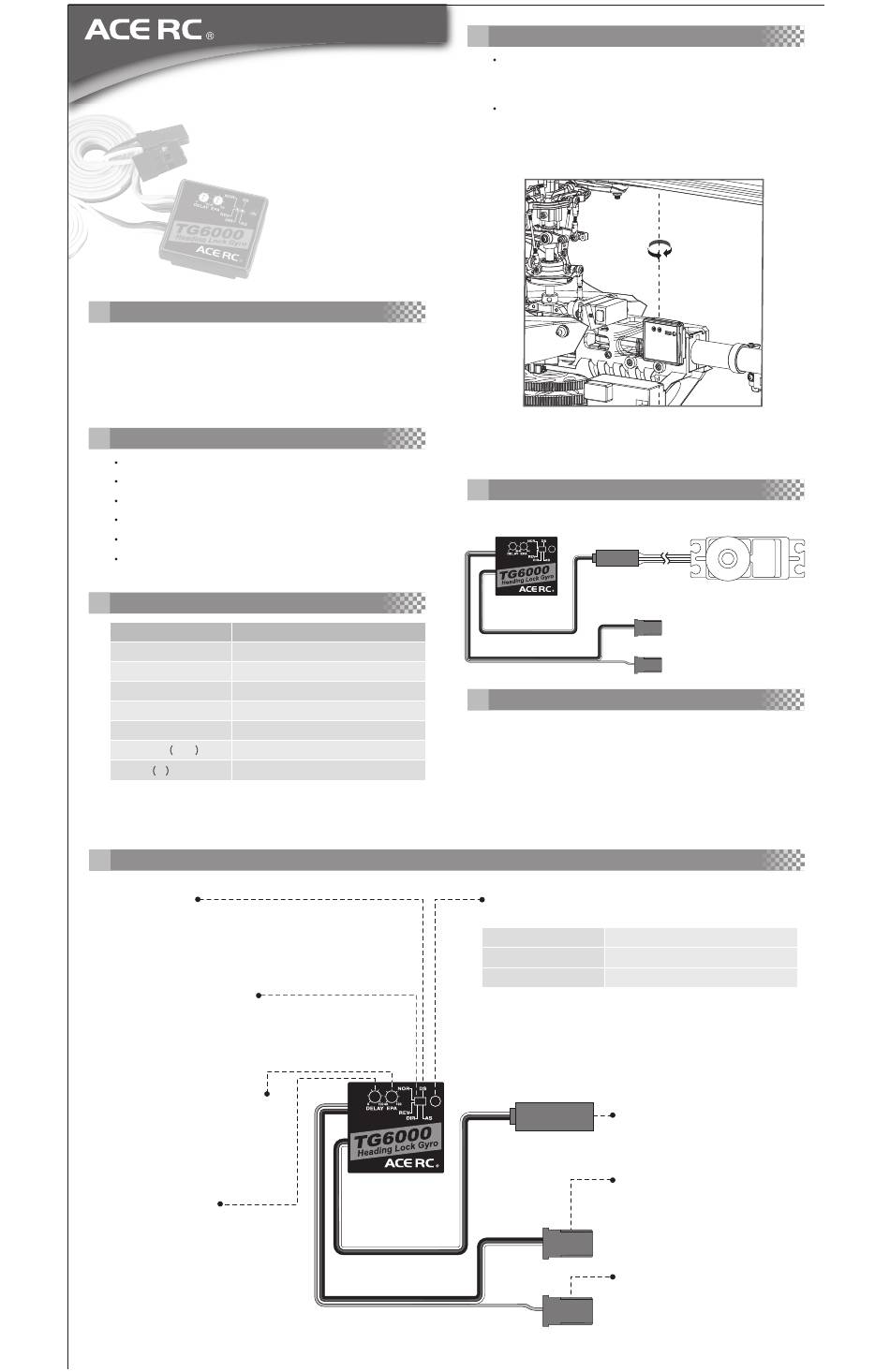

INSTALLATION
Before using the double-sided foam, be sure to clean the
bottom of the gyro and the fuselage where the gyro will
be attached.
Install the gyro as shown. Please note that the gyro must
be erected as the sensing direction is different from
others.
CONNECTION
Connect to rudder servo
SERVO SELECTION
TG-6000 is suitable for analog and digital rudder servo.
For analog servo, set the right switch to the AS position that
means Analog Servo. For digital servo, set the switch to the
DS position.
High brightness LED light
Indicates the status of the TG-6000.
Off Indicates that the power is off.
Red LED light Heading lock mode
Green LED light Normal mode
Rudder servo connector
It should be connected to the
rudder servo.
Rudder input connector
This connector is supposed to be
connected to the rudder channel
of the receiver.
Gyro gain connector
This connector is used to adjust
the gyro gain and switch between
the heading lock mode and normal
mode.
Connect to receiver
rudder channel
Connect to receiver
sensitivity switching channel
