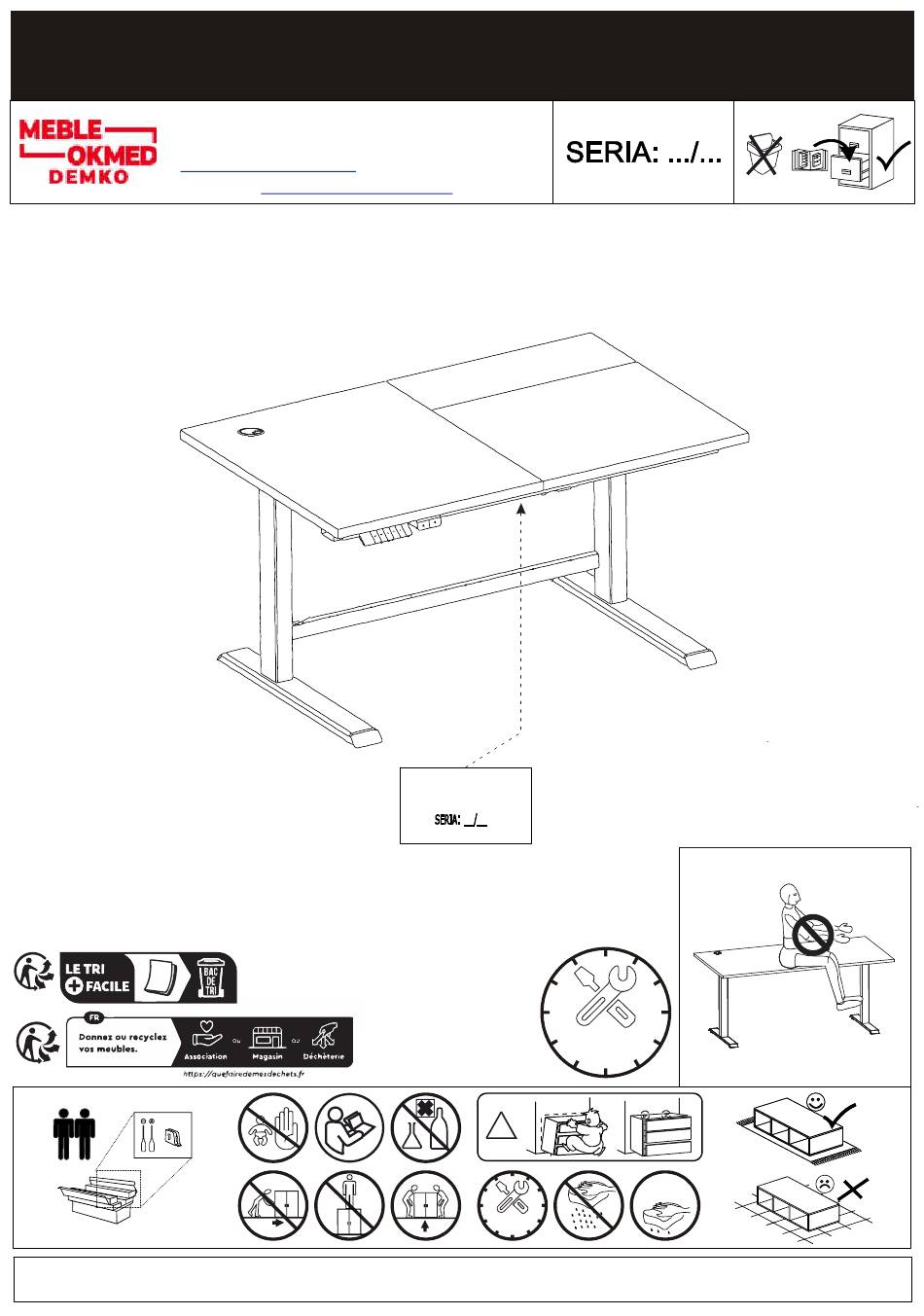

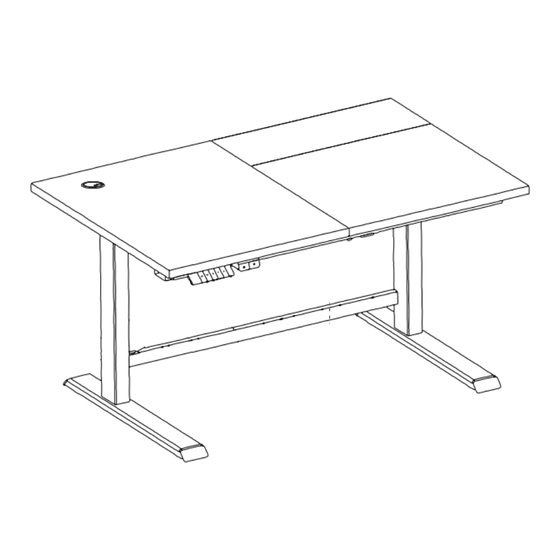

- Page 1 BEN 20 V210624 11/570/17/3 „MEBLE-OKMED” DEMKO - SPÓŁKA JAWNA ul. Kolejowa 13, 14-500 Braniewo, POLSKA (+48) 55 243 27 26 www.mebleokmed.pl firma@mebleokmed.pl BEN 20 60min 100% COTTON 60min...
- Page 2 BEN 20 Platte 11/570/17/3 11-570-17-3 [mm] [mm] [mm] 4x16...
- Page 3 BEN 20 Gestell 11/525/18 11-525-18-N 11-525-18-N M6x12 4x16...
- Page 4 BEN 20 Platte 11/570/17/3...
- Page 5 Electric Height Adjustable Desk 3-Leg User Guide MAKE SURE NO OBSTACLES ARE IN THE DESK′SPATHAND ALLCORDSAREOFAPPROPRIATELENGTHFORDESK TRAVEL.FAILURETOCOMPLYWITHOROBSERVEALL CAUTION ASSEMBLY,SAFETY,ANDOPERATIONINSTRUCTIONSAND WARNINGSREGARDINGTHEUSEOFTHISPRODUCTMAY RESULTINSERIOUSPROPERTYDAMAGEORBODILYINJURY. IMPORTANT Any user or installer of desk base must study this manual carefully. If this desk is sold,please provide the manual to the buyer.
-
Page 6: Safety And Warnings
CAUTION: SAFETY AND WARNINGS ·Inappropriate use of this product may cause property or bodily injury. Make sure that children, pets, etc. stay away from the product when the desk is in operation. ·Check the surroundings on all sides before using the desk. Make sure the desk does not touch the wall. -
Page 7: Setup And Installation
SETUP AND INSTALLATION Once the desk has been assembled, adjust the feet so that the desk is level and does not shift its position. After this, connect the desk to the 110v or 240v outlet and the desk is ready for use. Check that no cables can get jammed. - Page 8 Connec on Strap Qty 4 Frame Qty 1 Cross Bar Qty 1 Cable Tray Qty 1 Leveling Studs Qty 4 Steel Plate Cover Qty 2 Control Box Qty 1 Adapter Qty 1 Handset 1 Qty 1 Handset 2 Qty 1 Qty 8 M6*16mm Screw Qty 16 M6*8mm Screw Qty 12 M6*8mm Screw...
- Page 9 A ach each foot with qty 8 Screws(Part#A)
- Page 10 A ach Connec on Strap with qty 8 Screws(Part#C)
- Page 11 A ach the steel plate cover onto the Frame. the screw E should go trough the holes on the frame into the table top. Notice: Please leave 2mm at this place.
- Page 12 A ach Leg with qty 8 Screws(Part#B) onto the frame.
- Page 13 A ach control box &connect cables Qty 5 Cable Clips Power Cord Qty 1 Connecting Cables...
- Page 14 Carefully turn...
- Page 15 For Up and down function ThreeMemoryHeight Setting DeskHeight UpandDown Before Plugging the table into the outlet, make sure that The lift columns are level and set at the lowest position. All the screws are tightened, to avoid the desk making noise and wobbling. Activate the desk by following the next steps.
- Page 16 For tilting function The up and down handset is for plate tilting. Please press up or down to tilt the table top.
