Summary of Contents for HDL MZLR.10

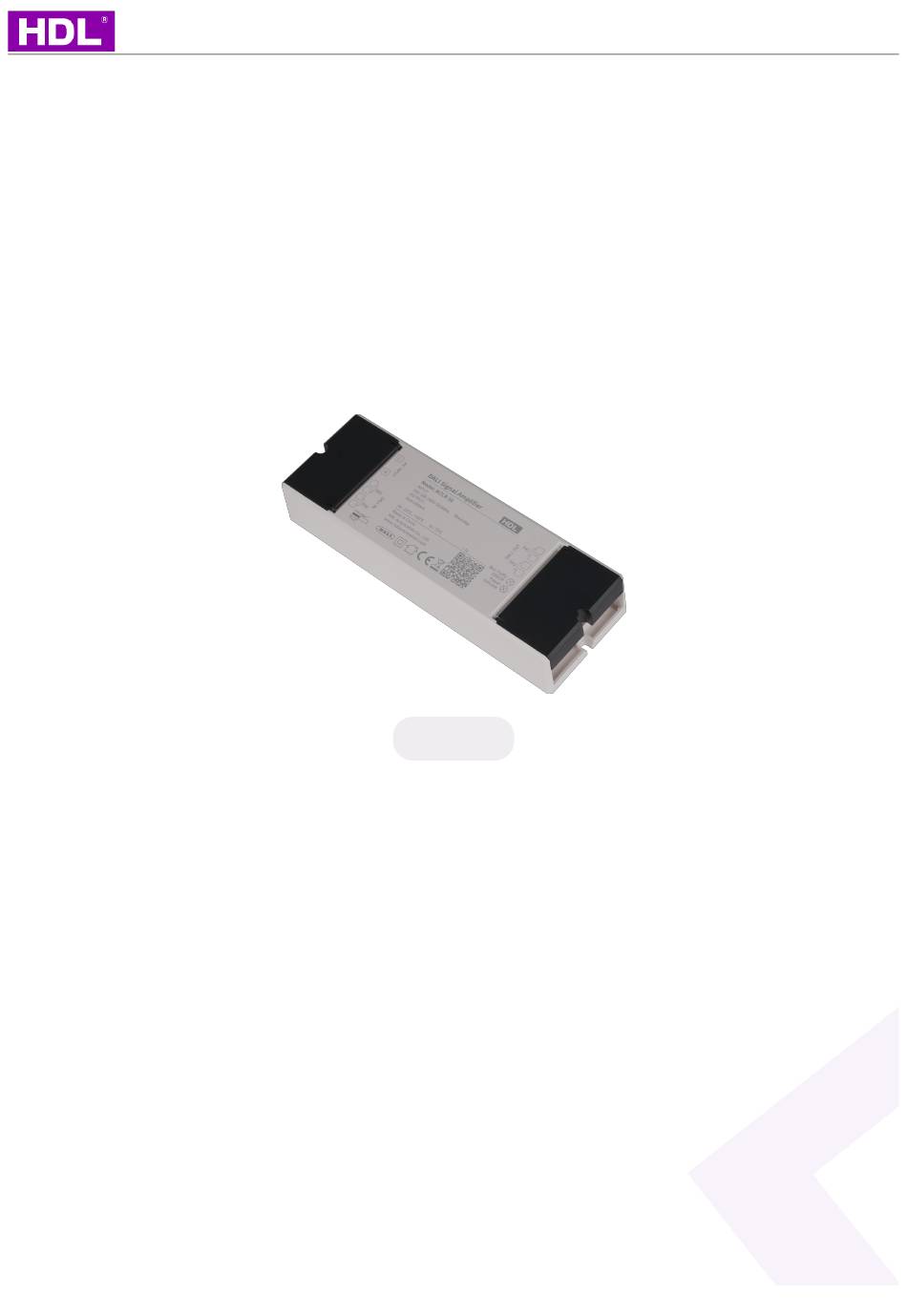

- Page 1 DALI Signal Amplifier Instruction Manual MZLR.10 Before using this product, please read this manual carefully and keep it properly！ Document Version：C...
-
Page 2: Technical Data

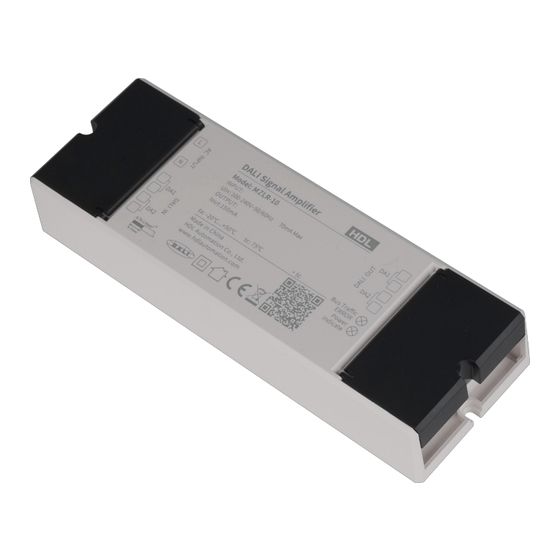

◇◆ Overview DALI Signal Amplifier (Model:MZLR.10 hereinafter referred to as "the product" or "the device") is a DALI signal amplifier with integrated bus power supply that increases the maximum line length from 300 to 600 metres. Note: The pictures and illustrations provided in this instruction manual are for reference purposes only, and the actual product may differ. -
Page 3: Specifications
Wire cross section 0.5~1.5 mm² Mounting Remote ceiling Ambient temperature -20℃ ~ +50℃ Protection class IP20 Lifetime 50,000h@25°C ◇◆ Specifications 170×59×29mm（See Figure 2 ） Dimensions (W X H X D) Net weight 125g±5%/PCS Housing material Nylon, PC Installation Flat surface placement, screw fixing IP degree (compliant with EN 60529) IP20 Approved... - Page 4 The device can be placed on a flat surface or mounted with screws. HDL will not be responsible for any consequence caused by the inexpert or faulty installation and wiring methods, which are not in accordance with the instructions contained in this datasheet.
-
Page 5: Installation
Note: • Typical application: Dali commands from any control are transmitted in all DALI-lines, on the output of a DALI Repeater with integrated PS no DALI PS is needed. • Further DALI devices may be connected to the DALI control unit, e.g. DALI ECG or further repeaters. For maximum number of DALI devices please refer to the instructions of the control unit. -
Page 6: Warranty
Note: After unpacking, please check if the product and the parts are complete. ◇◆ Warranty HDL has all the intellectual property rights to this document and contents thereof. Reproduction or distribution for third parties are prohibited without written authorization from HDL. Any infringement of HDL’s intellectual property rights will be investigated the legal liability.
