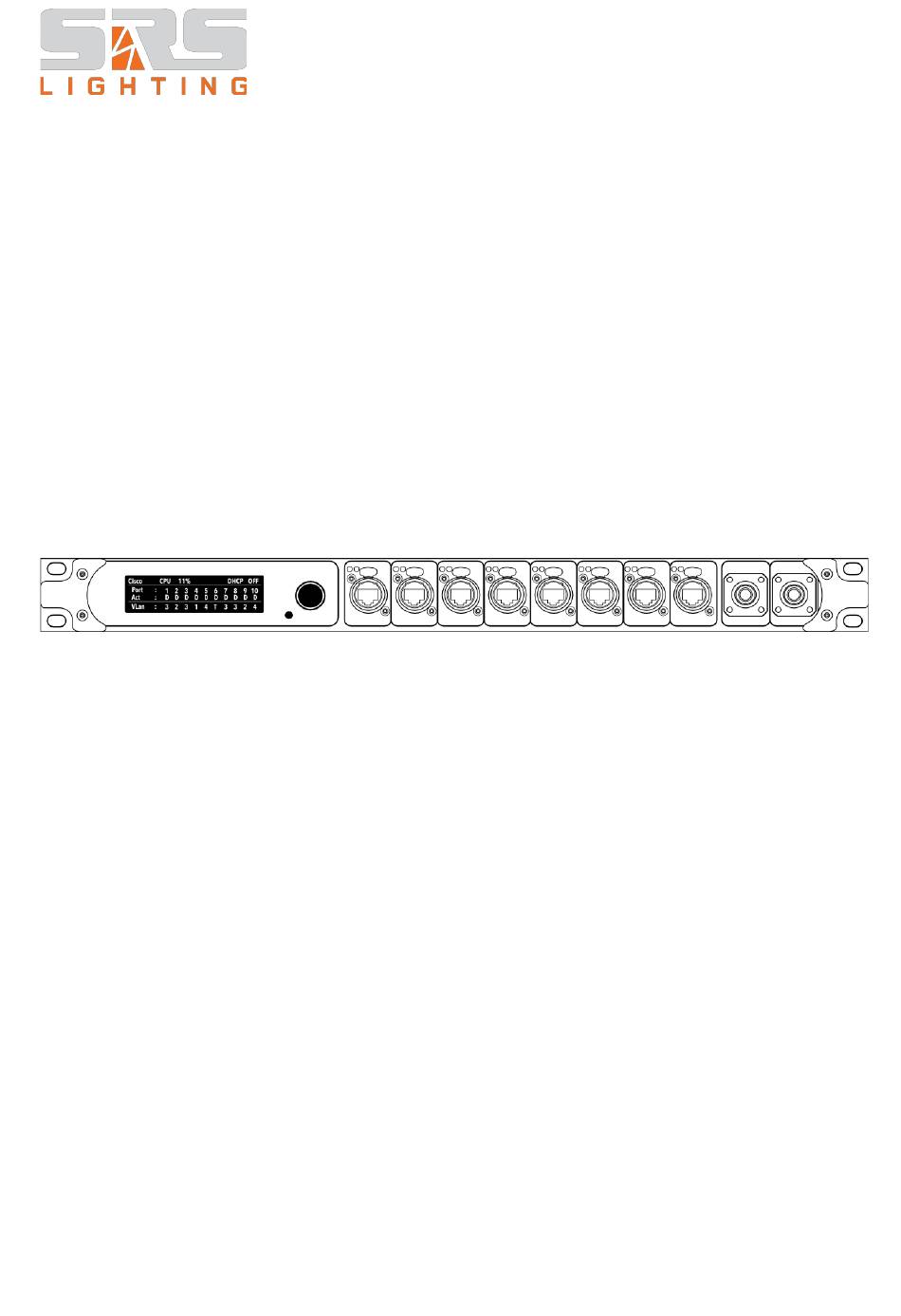

- Page 1 Quick guide SRS Lighting VLAN-toolbox Version 1.0 SRS Lighting VLAN-toolbox 8 - 2 Quick guide SRS VLAN-toolbox 8-2 - V1.0 - August 2024...
-
Page 2: Table Of Contents
Assign DHCP server IP range to VLAN ..................... 13 Request port information ........................15 Feedback (notifications)......................... 17 Initialize ..............................18 Appendix ............................... 19 Table IP range fixed location ....................... 19 Tabel IP-range visting company ......................20 Quick guide SRS VLAN-toolbox 8-2 - V1.0 - August 2024... -
Page 3: Introduction
• Standalone use; no laptop or other external equipment required to make settings. • Monitor for power consumption when applying Power over Ethernet (PoE) • Monitor for port load • Cable tester Quick guide SRS VLAN-toolbox 8-2 - V1.0 - August 2024... -
Page 4: Start Up
Once the VLAN-toolbox receives power, the boot procedure begins. Please note that this procedure takes ±4 minutes. The progress bar at the bottom of the display shows that the process is progressing. Quick guide SRS VLAN-toolbox 8-2 - V1.0 - August 2024... -
Page 5: Controls
The escape key can be pressed and the VLAN-toolbox will go back one step in the process you are doing. If you have changed a value, it will be reset to the original value. Quick guide SRS VLAN-toolbox 8-2 - V1.0 - August 2024... -
Page 6: Vlan-Preset
Ethernet 1Gb/s Trunk Ethernet 1Gb/s LAG 1-4 (group1-4) Trunk Fiber 1Gb/s LAG 5-6 (group5-6) When the VLAN-toolbox is reset to factory defaults, the VLAN assignment from the table above applies. Quick guide SRS VLAN-toolbox 8-2 - V1.0 - August 2024... -
Page 7: Assigning Vlan's To A Port
100Mbit/s and port 3 at 1Gbit/s. Trunking (T) has been selected for port When resetting the VLAN-toolbox to factory settings, all Ethernet ports are routed to VLAN 10 (1) and the fiber connections are routed to trunking (T). Quick guide SRS VLAN-toolbox 8-2 - V1.0 - August 2024... -
Page 8: Using Trunking (T)
An advantage of trunks, for example, is that the cabling can be simplified and multiple VLAN’s (separate data) can be transported over one cable and, in the case of fiber optic connections, can be moved at high speeds over considerable distances. Quick guide SRS VLAN-toolbox 8-2 - V1.0 - August 2024... -
Page 9: Trunk-Groups (Lag's)
The VLAN-toolbox uses LAG’s (Link Aggregation Group) for this. Trunk Ethernet 1Gb/s Trunk Ethernet 1Gb/s LAG 1-4 Trunk Fiber 1Gb/s LAG 5-6 Quick guide SRS VLAN-toolbox 8-2 - V1.0 - August 2024... - Page 10 In the VLAN-toolbox 8 – 2 you can assign the ports with fiber connections (9 and 10) to LAG group 5 or 6. The advantage of the fiber ports is that with two ports a data speed of 2Gb/s can be achieved over a distance of 10 kilometers. Quick guide SRS VLAN-toolbox 8-2 - V1.0 - August 2024...
-
Page 11: Lag's In Between Switches
LAG group 1 between two switches and then want to transfer the data to a third switch, use LAG group 2 for this. Trunk Ethernet 1Gb/s Trunk Ethernet 1Gb/s LAG 1-4 (group 1-4) Trunk Fiber 1Gb/s LAG 5-6 (group 5-6) Quick guide SRS VLAN-toolbox 8-2 - V1.0 - August 2024... -
Page 12: Enable Dhcp Server
Rotate the data knob to move the cursor in the display to DHCP (top line). Press the data button to select DHCP function. Rotate the data button to turn DHCP function ON or OFF. Quick guide SRS VLAN-toolbox 8-2 - V1.0 - August 2024... -
Page 13: Assign Dhcp Server Ip Range To Vlan
Press the data knob to move the cursor to the value you want to change. Rotate the data knob to adjust the value. Each time you press the data knob, the cursor jumps to the next value you can adjust. Quick guide SRS VLAN-toolbox 8-2 - V1.0 - August 2024... - Page 14 Make sure that the DHCP pool ranges of the different VLAN’s do not overlap. Quick guide SRS VLAN-toolbox 8-2 - V1.0 - August 2024...
-
Page 15: Request Port Information
Cable okay - cable okay + display cable length (m) No cable - no cable connected Impedance - impedance error Open cable - interrupted connection Short cable - short circuit (wire pair) Not tested - test not performed Quick guide SRS VLAN-toolbox 8-2 - V1.0 - August 2024... - Page 16 For the fiber optic ports (9 and 10), the port information screen also shows the power that the respective port is outputting and receiving. Quick guide SRS VLAN-toolbox 8-2 - V1.0 - August 2024...
-
Page 17: Feedback (Notifications)
The original value is reset. • OVERLAP: there is an overlap in the IP range just set for the DHCP server and a previously set range. The original value is reset. Quick guide SRS VLAN-toolbox 8-2 - V1.0 - August 2024... -
Page 18: Initialize
The Reconfig switch and Factory setting functions can take some time. Reconfig switch has a downtime of ±4 minutes as a result. Please take this into account. Quick guide SRS VLAN-toolbox 8-2 - V1.0 - August 2024... -
Page 19: Appendix
Appendix Table IP range fixed location Quick guide SRS VLAN-toolbox 8-2 - V1.0 - August 2024... -
Page 20: Tabel Ip-Range Visting Company
Tabel IP-range visting company Quick guide SRS VLAN-toolbox 8-2 - V1.0 - August 2024...
