SEB INTERNATIONAL SERVICE
Edition November 2017
SEB INTERNATIONAL SERVICE
1

Advertisement

Table of Contents
loading
Need help?

Need help?

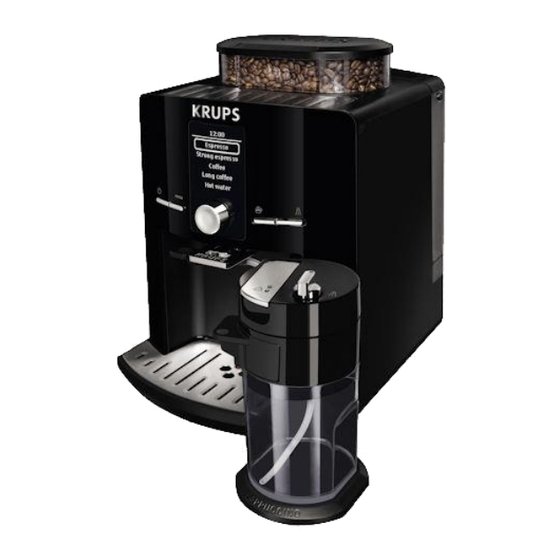

Do you have a question about the KRUPS Latt'Espress EA8298 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SEB KRUPS Latt'Espress EA8298

  • Page 1 SEB INTERNATIONAL SERVICE Edition November 2017 SEB INTERNATIONAL SERVICE...
  • Page 2: Table Of Contents

    5 ASS Modes ................. 19 5.1 ASS Mode 1 : ................... 19 5.2 ASS Mode 2 : ................... 22 6 ASS defect description ............23 6.1 Defects recorded: ..................23 6.2 Other Defects possible: ................24 Edition November 2017 SEB INTERNATIONAL SERVICE...
  • Page 3: General Data

    2 Technical Data 2.1 Reference values:  Expresso temperature (50ml – strong coffee) 1st coffee : 68°C mini  Temperature increase by steam with 125ml of water after 45s : 42°C  Cake thickness : 12-14mm Edition November 2017 SEB INTERNATIONAL SERVICE...
  • Page 4: Hydraulic And Wiring Diagrams

    3 Hydraulic and wiring diagrams 3.1 Wiring diagram Edition November 2017 SEB INTERNATIONAL SERVICE...
  • Page 5: Hydraulic Diagram

    3.2 Hydraulic diagram: Edition November 2017 SEB INTERNATIONAL SERVICE...
  • Page 6: Dismantling

    Remove the grinding fineness setting button Unscrew the screws from the coffee bean container Unscrew the 3 screws from the cover of Remove the cover by pulling upward with your hand in place of cleaning tablet pipe Edition November 2017 SEB INTERNATIONAL SERVICE...
  • Page 7 Remove the front cover Remove the 2 clips with a screwdriver Disconnect the plug Unscrew the 2 screws of the front Edition November 2017 SEB INTERNATIONAL SERVICE...
  • Page 8 Unscrew the 2 screws of from the rear and remove the protection. Unscrew the 4 screws in the bottom and the 2 screws of bottom right and bottom left Take away the coffee pipe Edition November 2017 SEB INTERNATIONAL SERVICE...
  • Page 9 Unscrew the 2 screws on top of front cover Open the panel on the rigth Edition November 2017 SEB INTERNATIONAL SERVICE...
  • Page 10: Grinder

    Tools : torx screwdriver (T15) Remove the protection Remove the crown who is on the grinder as the picture. A screwdriver can help Unscrew the 2 screw of the grinder Disconnect the plug of grinder (it’s black wires) Edition November 2017 SEB INTERNATIONAL SERVICE...
  • Page 11 Before putting back the crown, check the following points : A – Grinding adjustment bracket should be placed on “Coarser” B – White mark on the grinder should be place aligned with the black rib Edition November 2017 SEB INTERNATIONAL SERVICE...
  • Page 12 Connect the new grinder. The cables must be in good position Put back all protections Edition November 2017 SEB INTERNATIONAL SERVICE...
  • Page 13: Subassembly Switch Ejection

    4.3 Subassembly switch ejection Tools: torx screwdriver (T15) Remove the protection Disconnected all wires of the power board Removed the subset grinder Edition November 2017 SEB INTERNATIONAL SERVICE...
  • Page 14 Unscrew the 3 screws of thermobloc and tip up in back Edition November 2017 SEB INTERNATIONAL SERVICE...
  • Page 15 Unscrew the 2 screws of switch Slide up the switch Change the switch and make the same actions to reassemble all the parts Perform calibration Edition November 2017 SEB INTERNATIONAL SERVICE...
  • Page 16: Switch Ejection Disassembly

    4.4 Switch ejection disassembly Tools: torx screwdriver (T15 & T10) Remove the protection Disconnected all wires of the power board Removed the subset grinder Edition November 2017 SEB INTERNATIONAL SERVICE...
  • Page 17 Unscrew the screw with the Tip over on the right the right side of swich bracket Edition November 2017 SEB INTERNATIONAL SERVICE...
  • Page 18 Removed the switch (help you of a screwdriver) Make the same actions to reassemble all the parts BE CARFULL : put the switch in the good position (wire in the down) Edition November 2017 SEB INTERNATIONAL SERVICE...
  • Page 19: Ass Modes

    Remove cake tank + Put tray + Put water tank + Press OK + Plug the appliance 1 - Information : On this mode, you’ll find the information listed on the table below. Turn the OK button for changing the page. Edition November 2017 SEB INTERNATIONAL SERVICE...
  • Page 20 Nb cycles hot water and steam since the last descaling NCDESCAL Nb cycles Descaling NCRINSIN Nb rinse NCCLEANA Nb alarms cleaning differed NCDESCAA Nb alarms descaling differed VAAUTOFF Setting Auto Off NCRINSEMILK Nb rinse milk Edition November 2017 SEB INTERNATIONAL SERVICE...
  • Page 21 No used in ASS SCOFDRA No used in ASS SHCMV No used in ASS NCAFEON No used in ASS DEBITCAFE No used in ASS DEBITCAFE-1 No used in ASS DEBITCAFE-2 No used in ASS Edition November 2017 SEB INTERNATIONAL SERVICE...
  • Page 22: Ass Mode 2

    « information » is available. Note: The symbol means disconnect / reconnect the machine. If the icon appears several times to sharpen you have to go ASP and go to the ASS mode to watch the recorded defects. Edition November 2017 SEB INTERNATIONAL SERVICE...
  • Page 23: Ass Defect Description

    Heating resistor issue: Thermobloc 0A-10 The heating has been actuated and the Fuse wires red and/or blue temperature has not change 0C-0D- Comunication issues between Display and Both boards are not power boards compatible Edition November 2017 SEB INTERNATIONAL SERVICE...
  • Page 24: Other Defects Possible

    Check that all components are correctly assembled Perform cleanup following the instructions of the machine Disassemble all components of auto cappuccino and wash with water Quality of foam Clean the air cap (see below) Edition November 2017 SEB INTERNATIONAL SERVICE...
