- Page 1 INSTRUCTION MANUAL Approvals ETH-ROUTER Industrial ethernet router Part Number: ETH-ROUTER1V4CAI-4G REV012725...
- Page 2 To download the digital version of this instruction manual and to check other available languages scan the following QR code. Para descargar la versión digital de este manual de instrucciones y consultar otros idiomas disponibles, escanee el siguiente código QR. Para baixar a versão digital deste manual de instruções e verificar outros idiomas disponíveis, escaneie o seguinte código QR.
-
Page 3: Table Of Contents
TABLE OF CONTENTS CUSTOMER SAFETY RESPONSIBILITIES ..................4 PRODUCT OVERVIEW ........................7 DIMENSIONS ..........................8 INSTALLATION ..........................8 SPECIFIC CONDITIONS OF USE ....................10 ELECTRICAL CONNECTION ......................10 TESTING AND MAINTENANCE ....................13 PRODUCT WARRANTY ......................... 15 3 of 16... -
Page 4: Customer Safety Responsibilities
CUSTOMER SAFETY RESPONSIBILITIES 4B appreciates your business and is pleased you have chosen our products to meet your needs. Please read in its entirety and understand the literature accompanying the product before you place the product into service. Please read the safety precautions carefully before operating the product. - Page 5 Correct installation of the product is important for safety and performance. If you have not asked 4B to perform the installation of the unit on your behalf, it is critical for the safety of your operation and those who may perform work on your operation that you select a qualified and competent electrical installer to undertake the installation.
-
Page 6: Service Request
4B and have them readily available for people servicing your 4B equipment. Should you have any questions, please call the 24- hour hotline number 309-698-5611, contact your local distributor, or use one of the contact ways available in our website www.go4b.com/usa. -
Page 7: Product Overview

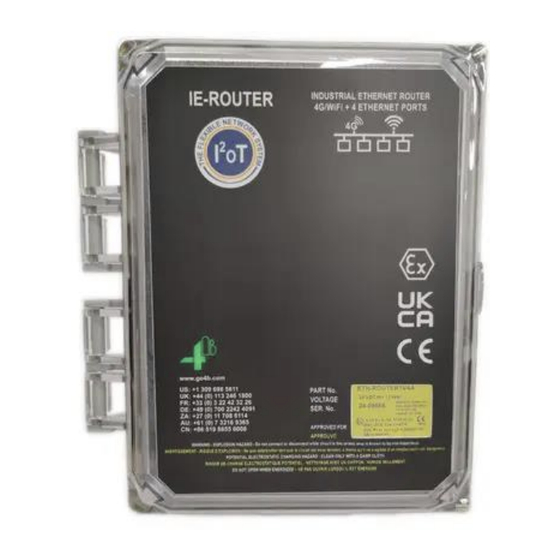

PRODUCT OVERVIEW 4G Router to connect 4B’s Hazard Monitoring Systems to Hazardmon via 4G Data SIM or Wi-Fi Features include: • 4G/LTE up to 150 Mbps Download and 50 Mbps Upload. 4G/LTE (Cat 4), 3G, 2G • 4 RJ45 Ports (3 x LAN, 1 x WAN) •... -
Page 8: Dimensions
DIMENSIONS INSTALLATION ENCLOSURE INSTALLATION - 1. Use the correct cable, glands and sealing arrangement in accordance to local installation codes. 2. Where other certified components are used as part of the assembly or installation procedure, the user must take in to account any limitations which might be listed on the relevant certificates. 3. -
Page 9: Environmental Conditions
(I/O) wiring shall be in accordance with Class II wiring methods per the National Electrical Code (NFPA70) for installations within the US and per the Canadian Electrical Code (CEC) for installations in Canada. ATEX/IECEx need to consider EN/IEC 60079-14. 6. The voltage, current and maximum power dissipation on the units label must not be exceeded. -
Page 10: Specific Conditions Of Use
Additional wire used during the installation must have a temperature rating of 158° F (70° C) or above, and be at least 24 AWG. 4B recommends using shielded cable to reduce electromagnetic interference (EMI) to maintain signal integrity. Never run low voltage cables in the same conduit as three phase motor cables. - Page 11 Input Power Image 1 11 of 16...
- Page 12 Image 2 – LAN & WAN Ports Image 3 12 of 16...
-
Page 13: Testing And Maintenance
TESTING AND MAINTENANCE Below is the procedure that the end user must adhere to in order to maintain the system in a safe state. Inspect that all the cabling is in good state and that all the electrical connections, including the terminal blocks in the junction boxes are secure and in good order. Make sure there is no water damage to the inside of the enclosure or any junction boxes used. - Page 14 NOTES 14 of 16...
-
Page 15: Product Warranty
(1) year after date of purchase from 4B. Any product determined by 4B at its sole discretion to be defective in material or workmanship and returned to a 4B branch or authorized service location, as 4B designates, shipping costs prepaid, will be, as the exclusive remedy, repaired or replaced at 4B’s option. - Page 16 P.O Box: SHJ-0., UAE reg. no. 23784 Jiangsu Province Tel: +971 (0) 6 5212 044 Tel: +86-136 0160 9266 Copyright © 2023 4B Group - All Rights Reserved go4b.com 4B Group reserves the right to change the contents of this document without prior notice.
