Nordmende Globetraveler II Circuit Diagram

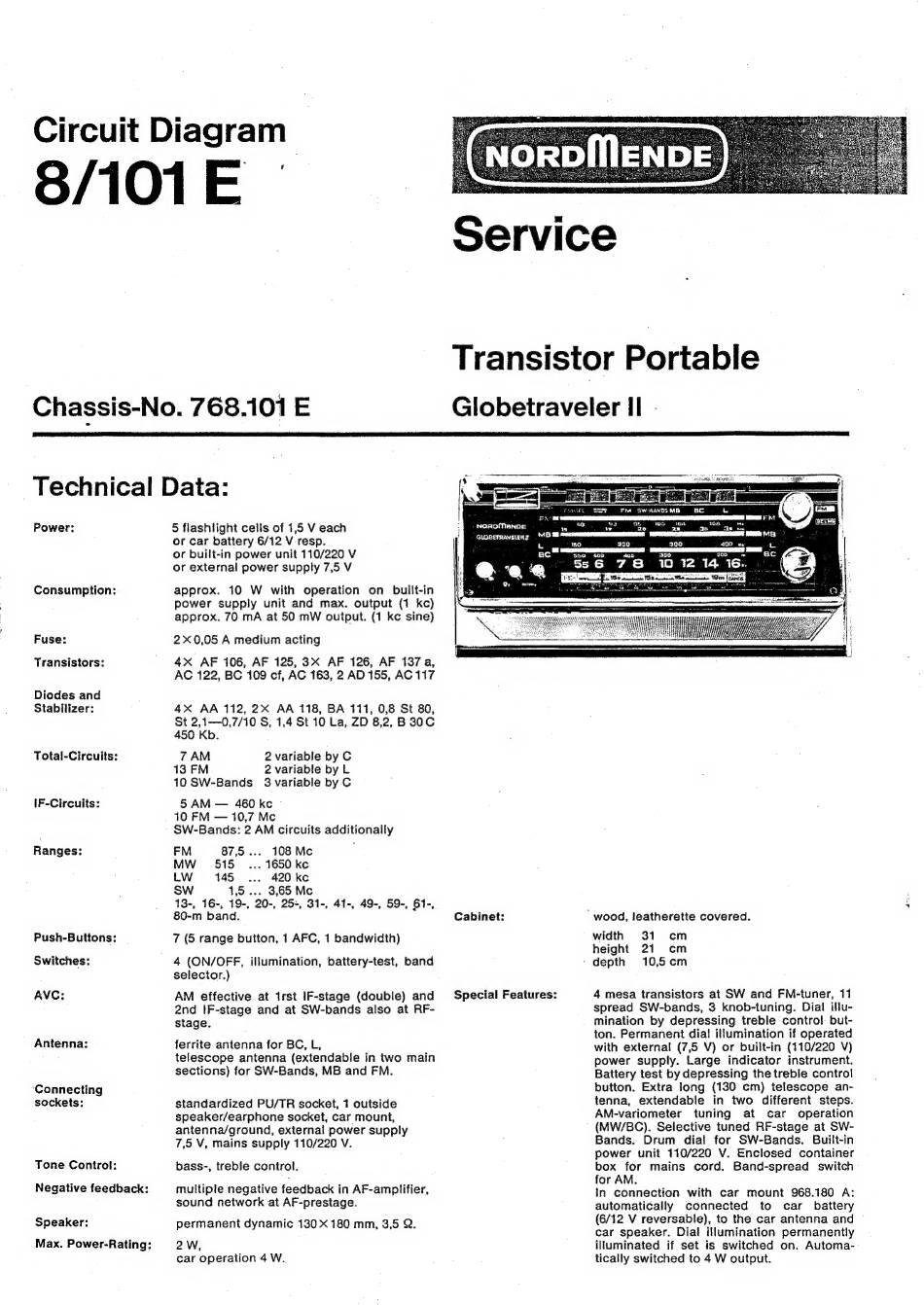

Circuit Diagram
S/101E |
Service
Transistor Portable
Chassis-No. 768.101 E Globetraveler Il -
Technical Data:
Power:
Consumption:
Fuse:
Transistors:
Diodes and
Stabilizer:
Total-Circuits:
IF-Circuits:
Ranges:
Push-Buttons:
Switches:
AVC:
Antenna:
'Connecting
sockets:
Tone Control:
Negative feedback:
Speaker:
Max. Power-Rating:
PN
5 flashlight cells of 1,5 V each NoROMANDE
or Car battery 6/12 V resp.
or built-in power unit 110/220 V
or external power supply 7,5 V
uw
approx. 10 W with operation on built-in
power supply unit and max. output (1 kc)
approx. 70 mA at 50 mW output. (1 ke sine)
20,05 A medium acting
4X AF 106, AF 125, 3X AF 126, AF 137 a,
AC 122, BC 109 cf, AC 163, 2 AD 155, AC 117
4X AA 112, 2X AA 118, BA 111, 0,8 St 80,
St 2,1-—-0,7/10 S, 1,4 St 10 La, ZD 8,2, B 30C
450 Kb.
7AM 2 variable by C
13 FM 2 variable by L
10 SW-Bands 3 variable by C
5 AM — 460 kc
10 FM — 10,7 Mc
SW-Bands: 2 AM circuits additionally
FM 87,5... 108 Mc
MW 515... 1650 ke
LW 145 420 kc
Sw 1,5... 3,65 Mc
13-, 16-, 19-, 20-, 25+, 31-, 41-, 49-, 59-, 61-,
80-m band. Cabinet:
7 (5 range button, 1 AFC, 1 bandwidth)
4 (ON/OFF, illumination, battery-test, band
selector.)
AM effective at irst IF-stage (double) and
2nd IF-stage and at SW-bands also at RF-
stage.
ferrite antenna for BC, L,
telescope antenna (extendable in two main
sections) for SW-Bands, MB and FM.
standardized PU/TR socket, 1 outside
speaker/earphone socket, car mount,
antenna/ground, external power supply
7,5 V, mains supply 110/220 V.
bass-, treble control.
multiple negative feedback in AF-amplifier,
sound network at AF-prestage.
permanent dynamic 130 X 180 mm, 3,5 Q.
2w,
car operation 4 W.
Ss6 7
bs
' depth
Special Features:
nu Ww J 23 CY ean
GLOerRAVE RZ VOSA SA A 113
aoc 200 400 ee
ES
10 12 14 16
'wood, leatherette covered.
width 31 cm
height 21 cm
10,5 cm
4 mesa transistors at SW and FM-tuner, 11
spread SW-bands, 3 knob-tuning. Dial illu-
mination by depressing treble control. but-
ton. Permanent dial illumination if operated
with external (7,5 V) or built-in (110/220 V)
power supply. Large indicator instrument.
Battery test by depressing the treble control
button. Extra long (130 cm) telescope an-
tenna, extendable in two different steps.
AM-variometer tuning at car operation
(MW/BC). Selective tuned RF-stage at SW-
Bands. Drum dial for SW-Bands. Built-in
power unit 110/220 V. Enclosed container
box for mains cord. Band-spread switch
for AM.
in connection with car mount 968.180 A:
automatically connected to car battery
(6/12 V reversable), to the car antenna and
car speaker. Dial illumination permanently
illuminated if set is switched on, Automa-
tically switched to 4 W output.
