Husqvarna RALLY Series Manual

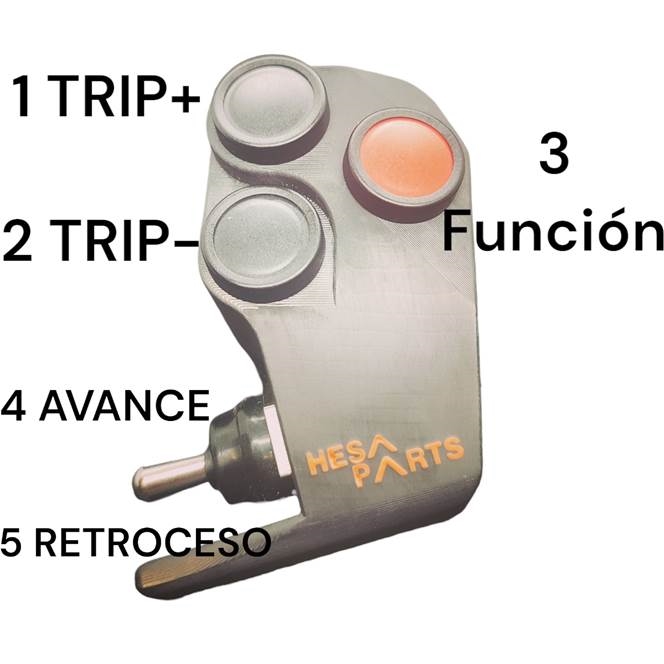

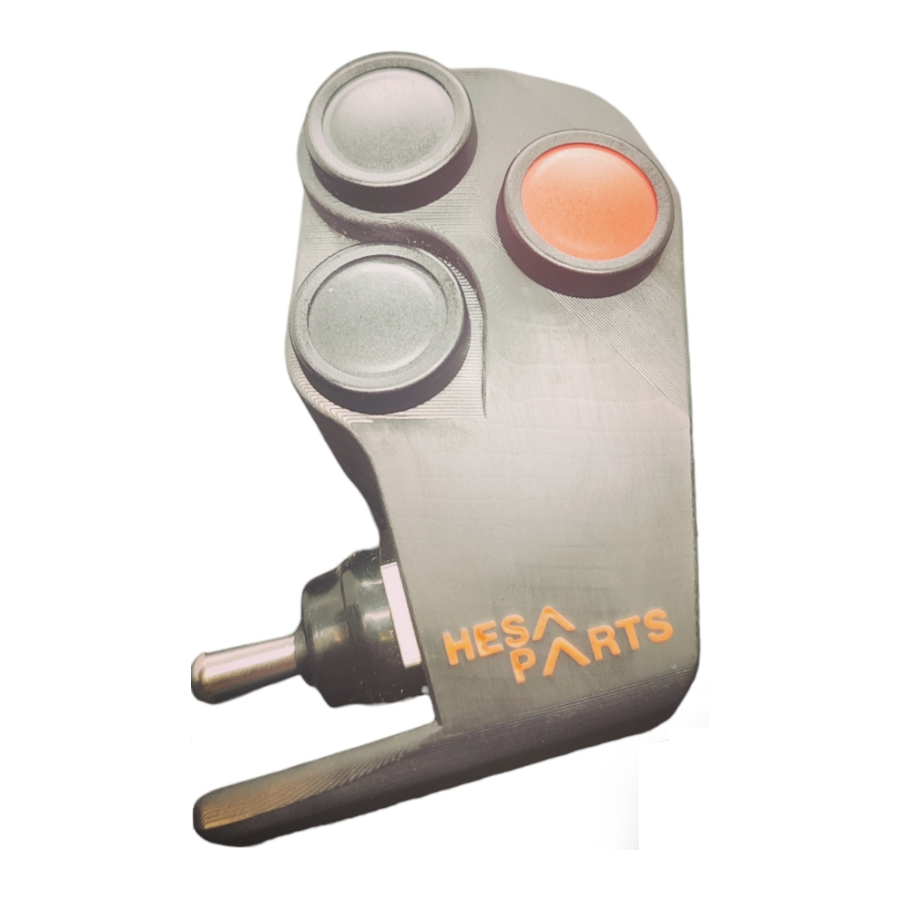

DESCRIPTION

INSTALLATION

• RALLY Series are designed for installation on standard 22mm handlebars.
• You must create an adequate space (depending on the model 20-40mm) between the grip and the pineapple of your motorcycle.
• Depending on your driving style (standing or sitting), rotate the RALLY Series until you find a comfortable position to access all controls.
• Use the provided flange and the two M4 screws (M5 in RALLY PRO) to fix it to the handlebar. Requires an allen key (not provided)
• Position the power cable correctly (if it is a 12V or USB model), passing it along with the cables of the original pineapple. Replace the handlebar clamps. Do not leave the cables too taut. Make sure you can turn the handlebar in both directions as far as it will go.
• Make sure that the power connection is made to a socket with an ignition key. Never install directly to the battery.

USE

FIRST CONNECTION

• Once the device has been installed, we will proceed to make the first connection. For this we will provide power through the ignition key.
• The upper LED will flash blue and red. This indicates that the RALLY Series is searching for a device to pair with.
• We will perform a search in the Bluetooth menu on available devices, and RALLYPRO, RALLYLITE OR RALLYV3 will appear. depending on the control model chosen. Click on it for pairing. If you ask for confirmation, we will accept.
• Once paired, the RALLY Series will flash red. This indicates mode 1 (roadbook)
• After the first connection, RALLY Series will automatically connect to the previously linked device without needing to do anything, just have the device's Bluetooth connected and RALLY Series turned on.

USER MODES

RALLY Series has 3 Modes.

Mode 1 ---------------- led red ---------------------ROADBOOK

Mode 2 ---------------- led red-blue-red ---------TERRA PIRATA

Mode 3 ---------------- led blue --------------------GPS NAVIGATION

To change mode, press and hold button 1 and press the lever forward (4). The LED will change color flashing to indicate the new mode.

During normal operation, the LED will flash slowly with the color corresponding to the mode in which it is selected.

ROADBOOK MODE

• Forward lever (4), advances roadbook
• Back lever (5), goes back roadbook
• Button 3, RESET trip (if the application in use allows it)
• Button 1, TRIP +
• Button 2, TRIP -

TERRAPIRATA MODE

• Forward lever (4), advances roadbook
• Back lever (5), goes back roadbook
• Button 1, TRIP +
• Button 2, TRIP -
• Button 3 one press, partial trip reset
• Button 3 long press, total trip reset
• Button 3 double press, lock screen

GPS NAVIGATION MODE

• Forward lever (4), zoom +
• Back lever (5), zoom -
• Button 3... a short press centers the map. Long press changes map orientation
• Button 1, short press uploads map. Double press right map
• Button 2, short press lowers map. Double click left map

Recommendations for use

• Never exceed the parameters specified in Specifications section of this user manual, otherwise RALLY Series may be totally or partially damaged and exempt from any warranty.
• In the model with a 12V connection, the device has a protection system against reverse polarity, however, before making the connection, make sure of the correct polarity of the power cables.
• If you are not sure that you can correctly carry out the installation explained in INSTALLATION chapter, consult a qualified professional.
• Never pull the power cord coming out of the RALLY Series outwards.
• Never bend or pinch the power cord.
• Never connect the RALLY Series if you detect any part of it in poor condition. It is advisable not to leave the RALLY Series exposed in hot places to direct sunlight for hours; if you do, cover the RALLY Series with a piece of clothing.
• Do not apply the pressurized water lance directly on the RALLY Series, even though it is waterproof, it is not designed to withstand high pressures.

Specifications

• Voltage: 5V to 30V (battery connection model)
• Approximate consumption of 80mAh at full capacity
• Approximate consumption of 1mAh at rest
• No official waterproof package testing has been performed, so an official overall IP rating cannot be assured. However, RALLY Series is designed to withstand water and dust, with top quality IP67 components.

Disclaimer

• HESAPARTS is not responsible for damage caused to the vehicle's electrical installation in case of incorrect installation. Likewise, there will be no possible warranty on the device.
• All manuals will be distributed electronically. They will never be delivered on paper
