1
ASSEMBLY
AND OPERATION MANUAL

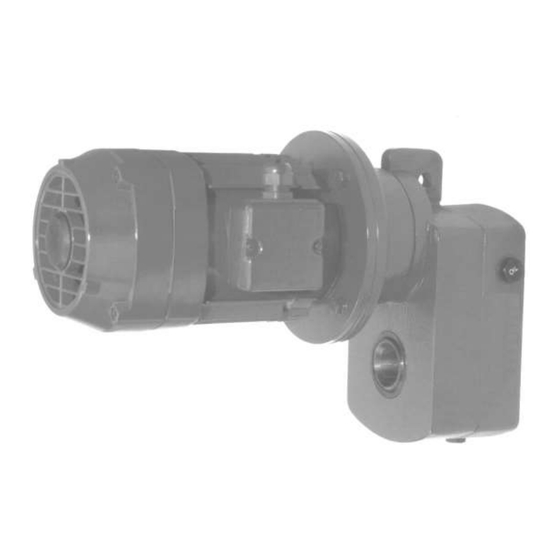

Geared Motor, type TP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TP and is the answer not in the manual?

Questions and answers

Summary of Contents for BCP TP

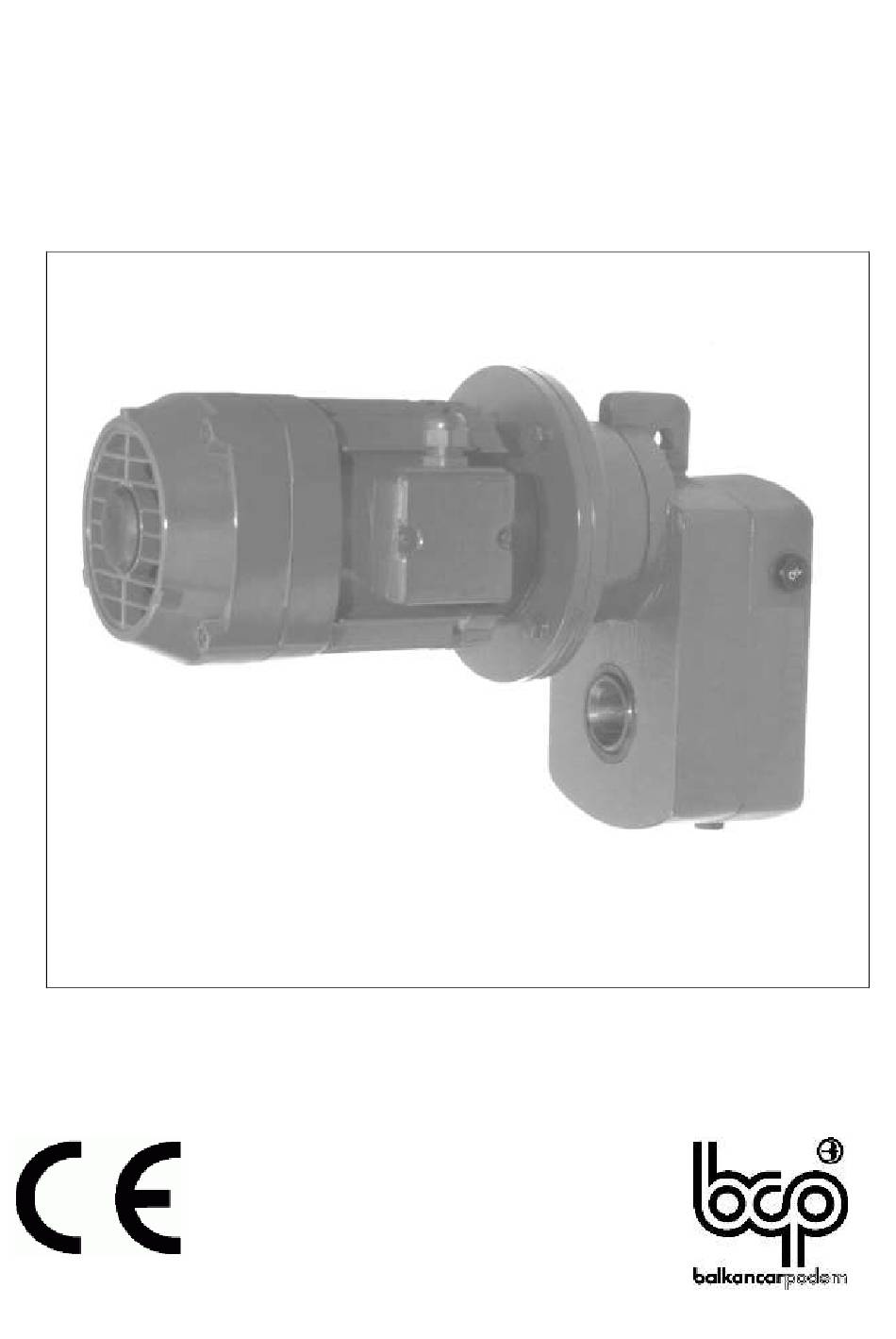

  • Page 1 ASSEMBLY AND OPERATION MANUAL Geared Motor, type TP...

  • Page 3: Technical Description And Designation

    The geared motors are available in four sizes: TP1160; TP1200; TP1250 and TP1315. Designation of the geared motors: Type Size Gear ratio Electric motor 1200 T80B - 12/4R BRII 2. GEAR RATIO VALUES Table 1 TP 1160 TP 1200 TP 1250 TP 1315 Actual Rated Actual Rated Actual Rated...

  • Page 4: Technical Data

    3. TECHNICAL DATA The geared motors are equipped with three phase, asynchronous electric motors series T with height of the rotation axis 71, 80, 90, 100 and 112, and built in brake type BRII. 3.1. Electric motors designation 80 A 12/4 Type designation Size...

  • Page 5: Service Factor

    380V; 50Hz; 500/1500min ; 20/40%; 180 h Table 3 Starting Starting Maximum Brake current moment moment Rotation fre- Current Power moment quency at 380V factor Direct start as multiplicity of rated Output Type Weight current moment small large 0.08/0.25 T80A-12/4R BRII 450/1440 1.3/1.2 0.72/0.65...

  • Page 6: Main Parameters

    5. MAIN PARAMETERS 5.1. Geared motors Fig. 1 Table 4 Type T80A-12/4R TP 1160 T80B-12/4R 33.3 T90S-12/4R T80B-12/4R TP 1200 T90S-12/4R 38.3 T90L-12/4R T90S-12/4R T90L-12/4R TP 1250 43.3 T100LA-12/4R T100LB-12/4R T100LB-12/4R TP 1315 T112M-12/4R 5.2. Elastic bumpers TP1160 TP1200 TP1250...

  • Page 7: Data For The Geared Motors With Electric Motors 500/1500 Min

    6. DATA FOR THE GEARED MOTORS WITH ELECTRIC MOTORS 500/1500 min 6.1. TP 1160; M = 250 Nm; 50 Hz Table 5 Outlet turning Outlet revolutions Service factor moment 0.08/0.25 5.69/18.21 128/125 1.95/2.00 0.08/0.25 6.44/20.60 113/100 2.21/2.27 0.08/0.25 7.06/22.60 103/100 2.43/2.50...
  • Page 8 6.3. TP 1250; M = 800 Nm; 50 Hz Table 7 Outlet turning Outlet revolutions Service factor moment 0.25/0.75 5.14/16.22 441/419 1.81/1.91 0.25/0.75 6.22/19.64 364/346 2.19/2.31 0.25/0.75 6.84/21.57 332/315 2.41/2.54 0.25/0.75 6.57/23.00 307/292 2.60/2.74 0.37/1.1 7.36/25.75 456/387 1.75/2.07 0.37/1.1 7.70/26.93 436/370 1.83/2.16...

  • Page 9: Assembly And Commissioning

    Remark: If the gear unit has a name plate "not filled with oil", use suitable oil: SHELL OMALA 320; SHELL OMALA 460; SHELL OMALA 680; MOBILE CERD 632; ULITA EP90 or their analogue, in the following quantities: TP 1160 TP 1200 TP 1250 TP 1315 0.5l...

  • Page 10: Spare Parts

    8. SPARE PARTS State the following data for prompt delivry of spare parts: - gear unit designation (overall dimensions) - position number (Fig. 3) - part denomination Positions 12 and 23 and 13 and 15 are supplied complete and you have to state the gear ratio in this case.
  • Page 11 Table 9 TP 1160 TP 1200 TP 1250 TP 1315 Description Clutch 71-80-90 71-80-90-100 80-90-100 90-100 Flange /mm/ dia.160-200 dia.160-200 dia.200-250 dia.200-250 Key DIN 6885 4x4x18 5x5x20 5x5x25 6x6x20 Shaft seal DIN 3760 12x24x7 15x28x7 17x30x7 20x32x7 Bearing DIN 625...

  • Page 12: Troublershooting

    9. TROUBLERSHOOTING Table 10 Problem Possible cause Troubleshooting steps The motor does not The brake is stuck Switch off the motor, remove the seal and run when switched push the shaft. The motor is blocked Dismount and repair the motor The motor drones The motor operates at two Check the supply voltage...

  • Page 13: Lubricating

    10. LUBRICATING The geared motor is delivered wilhout oil. Attention! Regular and correct greasing is of prime importance for every gear operating in oil bath It is convenient to attach a label "NO OIL" to the machine. After mounting it should be filled with appropriate oil and lubricated according to the following scheme (seeTable 11) Schedule for geared motor lubricating Table 11...

  • Page 14: Table Of Contents

    CONTENTS 1. TECHNICAL DESCRIPTION AND DESIGNATION 2. GEAR RATIO VALUES 3. TECHNICAL DATA 4. SERVICE FACTOR 5. MAIN PARAMETERS 6. DATA FOR THE GEARED MOTORS WITH ELECTRIC MOTORS 500/1500 min 7. ASSEMBLY AND COMMISSIONING 8. SPARE PARTS 9. TROUBLERSHOOTING 10. LUBRICATING 11.
  • Page 15 BALKANCARPODEM AD 1040 Sofia, Bulgaria 18, Kliment Ohridski Blvd. Tel. (+359 2) 975 33 95 Fax (+359 2) 975 30 89 e-mail: mail@bcp.bg http://www.bcp.bg...
