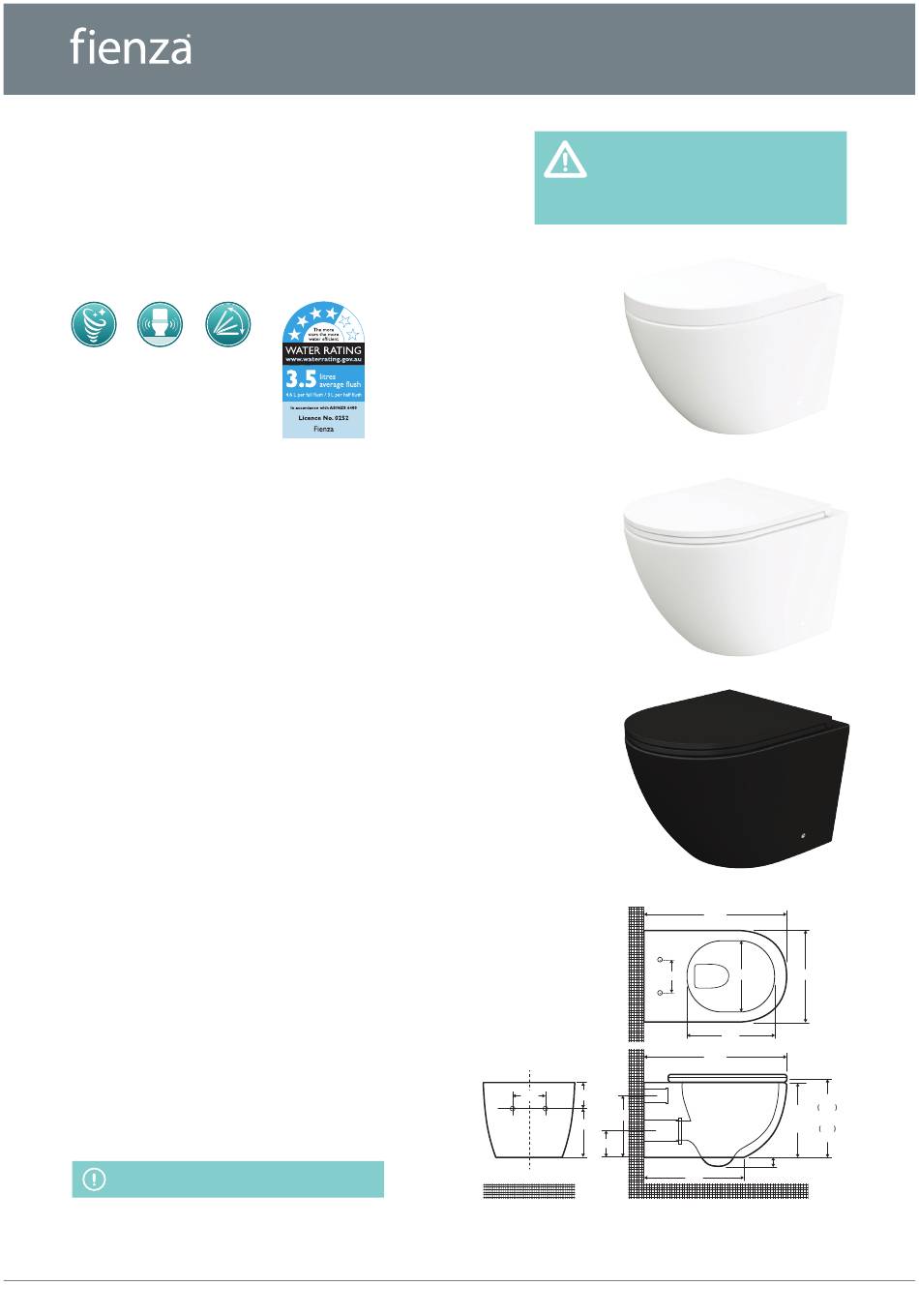

Fienza Koko K2376 Installation Manual

K oko
®
W A L L- H U N G
T O I L E T S U I T E S
K2376
Tornado Ultra Quiet Soft Close
Rimless Flush
Gloss White
Standard Seat · K2376W-PS
Slim Seat · K2376W-PS-2
Matte White
Standard Seat · K2376MWU-PS
Slim Seat · K2376MW-PS
Matte Black
Slim Seat · K2376MB-PS
WELS 4 Star rated, 4.6L/3L (3.5L average flush)
when used with R&T cistern
Tornado rimless ultra quiet flush
●
Concealed pan for easy cleaning
●
UF quick release, soft close seat
●
(for matte white model, seat is gloss)
Stainless steel hinges
●
Available as P-Trap only
●
Wall mounting screws included
●
Installation Notes
Please consult the installation guide supplied with
your chosen in-wall cistern to install this toilet suite.
The technical drawings below provide relevant
dimensions for installation.
IMPORTANT:
When marking inlet positions, please note that
dimensions provided are from finished floor and
wall levels (e.g. finished tile surfaces).
PLEASE LEAVE THIS GUIDE WITH THE OWNER
All installations should be carried out by a qualified tradesman in compliance with the National Plumbing & Drainage Code and any State or Local Authority Regulations, in accordance
with AS/NZS 3500 series of standards and AS/NZA 6400. All measurements are in millimetres and are subject to change without notice. For ceramic products, please allow +/- 10 mm
tolerance for manufacturing variance. Please refer to fienza.com.au for the latest product specification.
F IEN ZA .COM. AU
I N S TA L L AT I O N G U I D E
C H EC K G O O D S T H O R O U G H LY
B EF O R E I N S TA L L AT I O N
Installation of received goods that are damaged,
warped or faulty will void warranty. Ensure all
items meet your plumbing requirements.
180
WALL BOLT HOLES
(back view)
180 95
275
235
140
KOKO | Item Code:
Gloss White
Matte White
Matte Black
490
275 365
330
490
350
SLIM
330
PAN 365
ONLY
STD
PAN & SEAT
45
320
K2376 | Updated: 26/11/2024
