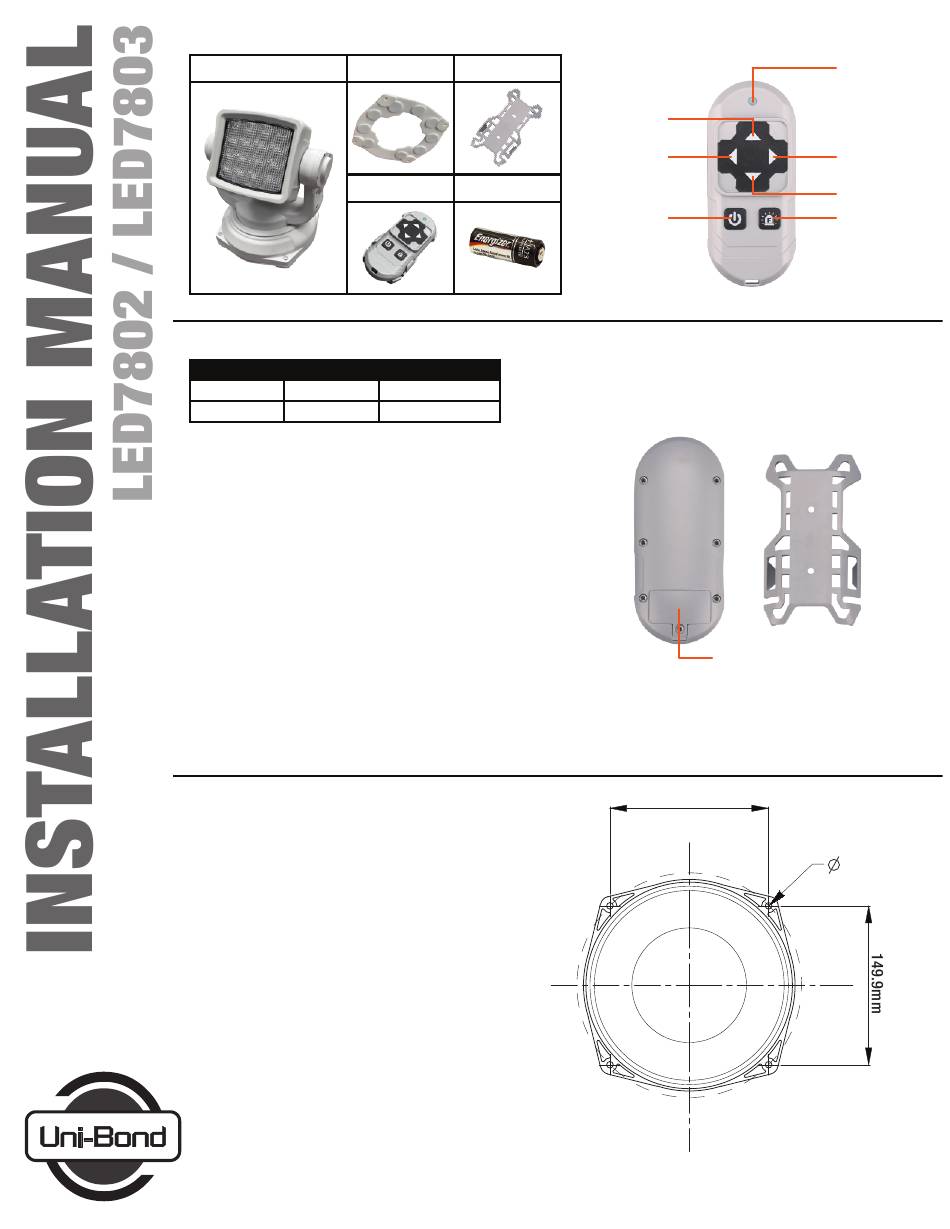

Uni-bond LED7802 Installation Manual

Last Updated: 07/10/2024
Hardware List
LED7802 / LED7803
Remote Control
Wiring Information
Wire Colour Function
Red Power
Black Ground
Light should be fused with 10 Amp Fuse (
Remote Control Programming
1) Connect the lamp to a 10 to 30 VDC power source.
2) The lamp will now turn ON.
3) Insert a 23A battery into the remote control.
4) Press the ON-OFF button on the remote control, and
hold for 30~45 seconds until the lamp does delayed
long flashes 3 times.
5) Release the button. Programming Successful.
To release programming, also known as un-pairing, follow the same
steps above. Only difference is step 4, where the lamp does quick
short flashes 3 times to indicate the lamp has been released.
NOTE: The controller comes pre-programmed with the lamp via default
factory settings. It is recommended that the user reprograms the
remote to prevent cross-communication with other lamps within
the area of close proximity.
Mounting Instructions
Determine your desired location to mount. Please ensure that the
[ ]
surface is flat. The ULTRA logo determines the default forward
direction of the lamp. The lamp is capable of the following;
• 360 degrees to the LEFT
• 360 degrees to the RIGHT
• 110 degrees UPWARD
• 110 degrees DOWNWARD
Please ensure to choose hardware (not included) that is appropriate
to your surface.
1)
Drill holes in mounting surface. Refer to the
2)
Place the Rubber Pad under the lamp and mount the
lamp with preferred hardware.
NOTE: As the lamp weighs 3.2kg, it is recommended to use longer
screws for better support.
NOTE: Disassembling lamp or cutting the wires voids the warranty
Rubber Pad Rear Bracket
23A Battery
Connect To
+10 to 30 VDC
(Ground)
)
ATM10 sold separately
Diagram 1.
For more products visit our website @ www.unibondlighting.com
Remote Control Info
UPWARD
LEFT
ON-OFF
Rear Bracket
Battery Compartment
149.9mm
Diagram 1
Guiding Light
RIGHT
DOWNWARD
SOS Flash
Mounting Hole
Dimension
6.3mm
