Summary of Contents for Serial Cables PCI5-AD-x439-01V-U2

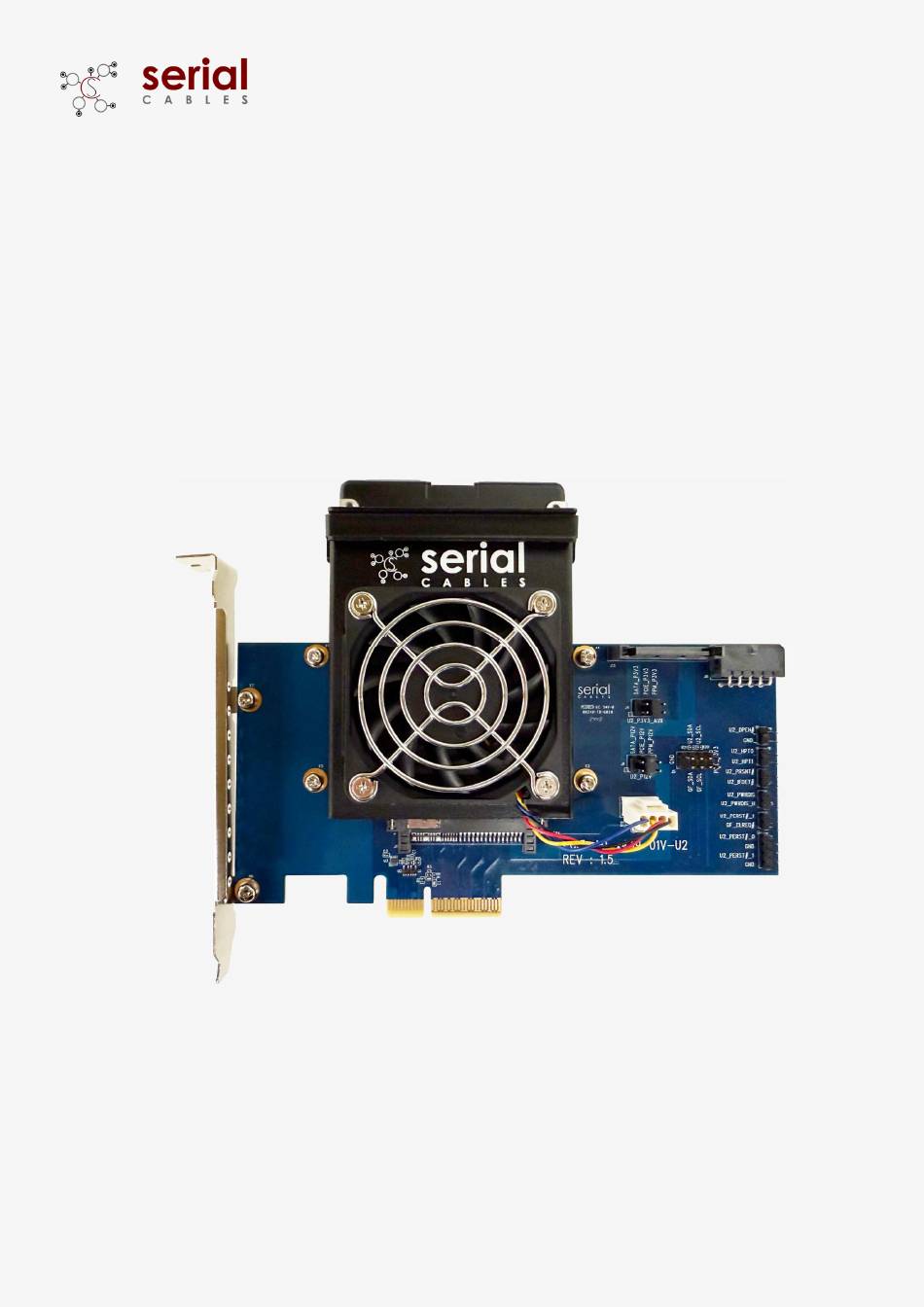

- Page 1 PCIe Gen5 X4 Slot To U.2 Adapter Card Part Number: PCI5-AD-x439-01V-U2 User’s Manual REV: 1.0 Nov. 2024...
-
Page 2: Change History
Change history Change history Date of Release New created for REV1.5 PCBA design Nov. 2024... -
Page 3: Product Brief
Product Brief 140mm 82mm 162mm Hardware Specifica2on Model PCI5-AD-x439-01V-U2 82mm(H) x 162mm(L). PCBA Physical Dimension PCI Express add-in card standard, Thickness .063" +/- 0.008" (1.6mm +/- 0.2mm) Host PCIe slot Power source SATA 15P Power connector Selectable Quarch PPM connector U.2 SSDs support... - Page 4 Func2ons of Headers Headers Descrip2ons For U.2 SMBus accessing. Pin3&4, Pin5&7 ON: connect the SMBus of U.2 to host in pins of golden finger. Or SMBus accessing from external I2C analyzer via pins 1, 3 5 and 7. Pins in Pins in U.2 Pins in Pins in Golden finger...
- Page 5 Headers Descrip2ons U.2 P12V Power Selec2on Pin1&2 ON=Select U.2 P12V sourced from SATA power connector J13. Pin3&4 ON=Select U.2 P12V sourced from PCIe slot of host server. Pin5&6 ON=Select U.2 P12V sourced from Quarch PPM connector J8. Pins in Signals Signals Pins in Header Header...
- Page 6 Headers Descrip2ons Pins in Pins in U.2 Signals Header connector U2_PRSNT# U2_IFDET# ON: Set U2 PWRDIS to be “H” state. OFF: Set U2 PWRDIS to be “L” state. Pins in Pins in U.2 Signals Header connector U2_PWRDIS P3V3 PU 1K ON: Connect CLKREQ# of Golden finger to U.2 OFF: Disconnect CLKREQ# of Golden finer to U.2 Pins in...
- Page 7 Mechanical Hinge down for 15mm SSD support Hinge up for 7mm SSD support...
