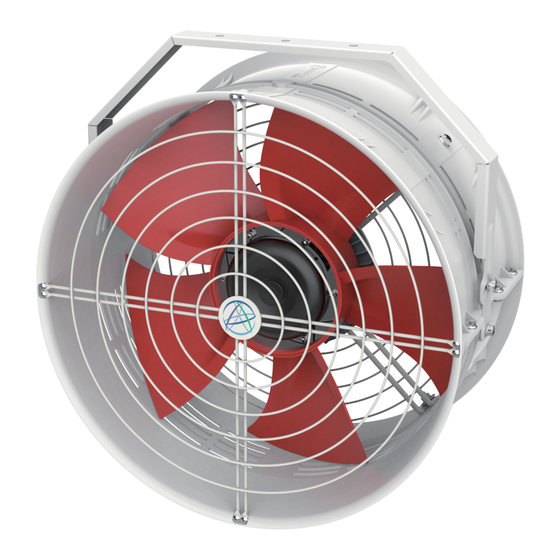

20 Inch High Velocity Fan Pro Model (HE-20M)
OVERVIEW

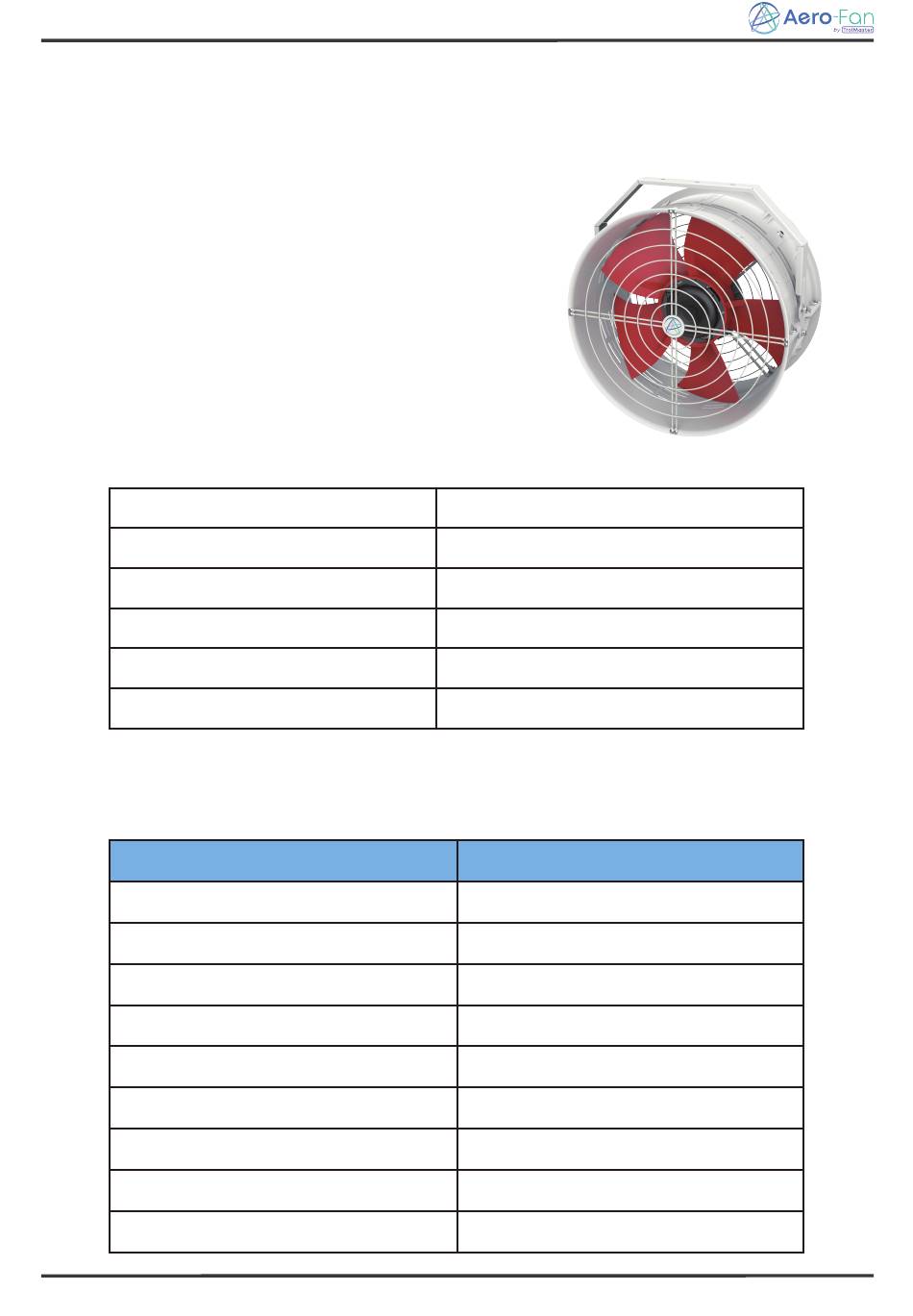

T h e 2 0 I n c h H i g h V e l o c i t y F a n P r o M o d e l i s a c o m p a c t
and efficient fan designed to improve air circulation and
ventilation in indoor spaces. W i t h i t s p o w e r f u l m o t o r , i t
moves a significant volume of air, removing stale air, and
humidity. Its versatile design allows easy i n s t a l l a tion in
various duct systems, ensuring a fresh and comfortable
environment. Multiple fans can be connected and speed
controlled together by using our FRC-1 fan controller.
GENERAL INFORMATION
Brand
Model
Exterior Dimension
Net Weight
No. of Blades
Rotating Direction
SPECIFICATIONS
Operating voltage range
Rated current
Rated input power
Maximum air flow
Maximum static air pressure
Operating temperature
Mean Time To Failure (MTBF)
Cells Lightning Protection
IP Rating
ITEMS
Aero-Fan
HE-20M
310*Φ560*594mm
13.5KG/29.76lbs
5
CCW
SPECIFICATIONS
200-277VAC
3.0A (Max.)
610W (Max.)
4980 cfm
150 Pa
-4-140°F
50000H (25°C)
470VAC
IP54
01
