Summary of Contents for AOK EM1010

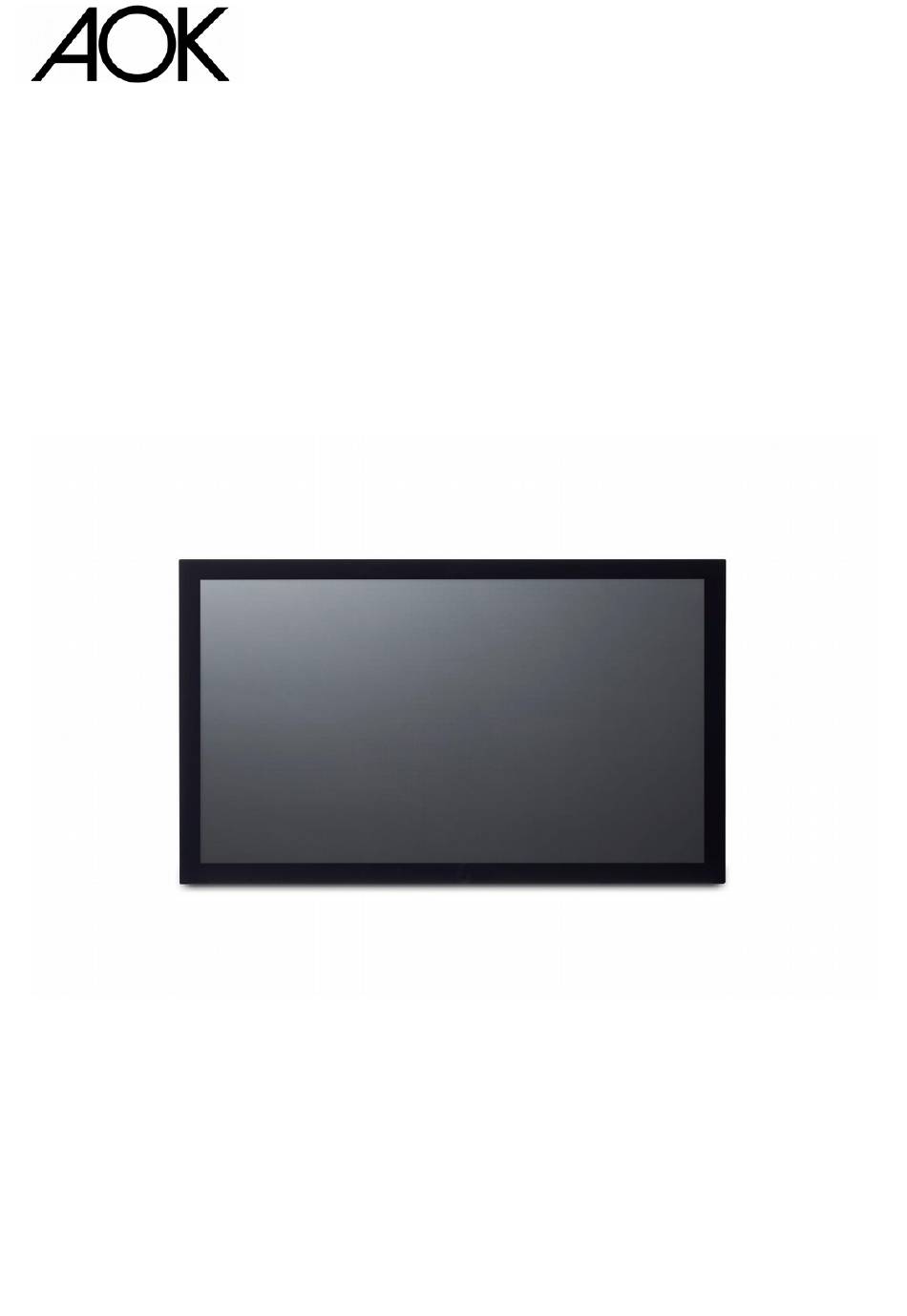

- Page 1 Custom Display Solutions Industrial/Open-Frame Monitor User’s Manual Manual Rev.: Revision Date: March 28, 2023 Mother Board Part No: AT1100-V2.0...
-
Page 2: Revision History
Custom Display Solutions Revision History Revision Description Date Initial release 2023-07-06 Add information for larger models & mechanical details 2023-09-14 Preface... -
Page 3: Preface
European Union's Restriction of Hazardous Substances (RoHS) directive and Waste Electrical and Electronic Equipment (WEEE) directive. Environmental protection is a top priority for AOK. We have enforced measures to ensure that our products, manufacturing processes, components, and raw materials have as little impact on the environment as possible. - Page 4 Custom Display Solutions Conventions Take note of the following conventions used throughout this manual to make sure that users perform certain tasks and instructions properly. Additional information, aids, and tips that help users perform tasks. Information to prevent minor physical injury, component damage, data loss, and/or program corruption when trying to complete a task.
-
Page 5: Table Of Contents
Custom Display Solutions Table of Contents Revision History ......................... ii Preface ..........................iii List of Figures ........................vi List of Tables ........................vii Introduction ........................ 1 1.1. Features ........................1 1.2. Applications ........................1 1.3. I/O of Driver Board & Board Specifications ..............2 1.4. -
Page 6: List Of Figures
List of Figures Figure 1: Enclosed Frame Line I/O Connectors….................. 8 Figure 2: Open Frame Line I/O Connectors .................... 8 Figure 3: EM1010 Mechanical Dimensions .....................12 Figure 4: EM1330 Mechanical Dimensions .....................12 Figure 5: EM1560 Mechanical Dimensions .....................13 Figure 6: EM2150 Mechanical Dimensions ..................…13 Figure 7: OM1330 Mechanical Dimensions ....................14... -
Page 7: List Of Tables
Custom Display Solutions List of Tables Table 1: EM Line Enclosed Frame Monitor Specifications ..............4 Table 2: EM Line Enclosed Frame Monitor Specification EM2150 ............5 Table 3: Open Framed Series Specifications ................... 6 Table 4: OM Line - OM3150, OM4300 Specifications ..............………..7 Table 5: Monitor OSD Button Functions ..................………..22 Table 6: OSD Menu Overview ..................…………………..23 Preface... -
Page 8: Introduction
Custom Display Solutions 1. Introduction EM/ OM is AOK’s new industrial framed( enclosed ) and open-frame touch monitor designed for quick and easy integration with a variety of industrial applications, such as public signage, self-service kiosks, medical displays, and point-of- sale terminals, HMI panel & automation controllers. - Page 9 Custom Display Solutions 1.3. I/O of Driver Board For full technical specification of the driver board, please click the following link: AT1100-V2.0 Monitor Driver Board Technical Specification Introduction...
-
Page 10: Package Contents
Custom Display Solutions 1.4. Package Contents Please check that your package contains the items below. If you discover damaged or missing items, please contact our support team. Non-touch versions: 1x DC power adapter 4x Screw M3/M4 (to secure VESA mounts) Besides the above, for touch version,the following is included: ... -
Page 11: Specifications
Custom Display Solutions 2. Specifications 2.1. EM Line Table 1: EM Line Enclosed Frame Monitor Specifications Model EM1010 EM1330 EM1560 Display Size 10.1” 13.3” 15.6” Resolution 1280x800 1920x1080 Aspect Ratio 16:10 16:9 Color 16.7M Brightness (Nits w/touch) Backlight Life (Hours) -
Page 12: Table 2: Em Line Enclosed Frame Monitor Specification Em2150
Custom Display Solutions 2. Specifications 2.1. EM Line Table 2: EM Line Enclosed Frame Monitor Specification EM2150 Model EM2150 Display Size 21.5” Resolution 1920x1080 Aspect Ratio 16:9 Color 16.7M Brightness (Nits w/touch) Backlight Life (Hours) 30,000 View Angle (U/D/R/L) 89/89/89/89 Contrast Ratio 1000:1 Touchscreen... -
Page 13: Table 3: Open Framed Series Specifications
Custom Display Solutions 2.2. OM Series Table 3: Open Framed Series Specifications Model OM1010 OM1560 OM2150 OM2380 OM2700 Display Size 10.1” 15.6” 21.5” 23.8” 27.0” Resolution 1280x800 1920x1080 Aspect Ratio 16:10 16:9 Color 16.7M Brightness (w/touch) 300 nits 250 nits 250 nits Backlight Life (Hours) 50,000... -
Page 14: Table 4: Om Line - Om3150, Om4300 Specifications
Custom Display Solutions Table 4: OM Line - OM3150, OM4300 Specifications Model OM3150 OM4300 Display Size 31.5" 43" 1920 x 1080 Resolution Aspect Ratio 16:9 Color 16.7M 400 nits Brightness (w/ touch) 50,000 Backlight Life (Hrs) Viewing Angle (U/D/R/L) 89/89/89/89 4000:1 Contrast Ratio Touchscreen... -
Page 15: Mechanical Layout
3. Mechanical Layout 3.1. I/O Connectors Figure 1: Enclosed Frame Line I/O Connectors In most cases, only the specific needed I/O is mounted on board Figure 2: Open Frame Line I/O Connectors This View Shows All the display I/O are mounted on board, In most cases, only the specific needed I/O is mounted on board. - Page 16 Custom Display Solutions DVI (when it is specified by project) A DVI connector is provided to connect the monitor to a computer. Pin No. Signal Pin No. Signal TMDS Data2- Hot Plug Detect TMDS Data2+ TMDS Data0- TMDSData0+ DDC Clock [SCL] DDC Data [SDA] Analog vertical sync 23 TMDS Clock +...
- Page 17 Custom Display Solutions HDMI Connector An HDMI Type-A socket is provided to connect the monitor to a computer. Pin No. Pin Name Signal Type Pin Assignment TMDS Data2+ TMDS Data2 Shield TMDS Data2- TMDS Data1+ TMDS Data1 Shield TMDS Data1- TMDS Data0+ TMDS Data0 Shield TMDS Data0-...
-
Page 18: Usb Connector
Custom Display Solutions USB Connector A USB 2.0 Type-B connector is provided for touch support. Pin No. Pin Name Signal Type Pin Assignment USB-Data- USB2.0 for touch UDB-Data+ USB2.0 for touch DC Power Connector A 2.1mm center pin DC barrel jack connector is provided for power input. ... -
Page 19: Mechanical Dimensions
Custom Display Solutions 3.2. Mechanical Dimensions All dimensions are in mm. EM Line 3.2.1.1. EM1010 Figure 3: EM1010 Mechanical Dimensions 3.2.1.2. EM1330 Figure 4: EM1330 Mechanical Dimensions Mechanical Layout... -
Page 20: Figure 5: Em1560 Mechanical Dimensions
Custom Display Solutions 3.2.1.3. EM1560 Figure 5: EM1560 Mechanical Dimensions 3.2.1.4. EM2150 Figure 6: EM2150 Mechanical Dimensions Mechanical Layout... -
Page 21: Figure 7: Om1330 Mechanical Dimensions
Custom Display Solutions 3.2.1.5. OM1330 Figure 7: OM1330 Mechanical Dimensions 3.2.1.1. OM1560 Figure 8: OM1560 Mechanical Dimensions Mechanical Layout... -
Page 22: Figure 9: Om1730 Mechanical Dimensions
Custom Display Solutions 3.2.1.1. OM1730 Figure 9: OM1730 Mechanical Dimensions Figure 9: OM1730 Mechanical Dimensions 3.2.1.2. OM1850 Figure 10: OM1850 Mechanical Dimensions Mechanical Layout... -
Page 23: Figure 11: Om2150 Mechanical Dimensions
Custom Display Solutions 3.2.1.1. OM2150 Figure 11: OM2150 Mechanical Dimensions 3.2.1.1. OM3150 Figure 12: OM3150 Mechanical Dimensions Mechanical Layout... -
Page 24: Figure 13: Om4300 Mechanical Dimensions
Custom Display Solutions 3.2.1.1. OM4300 Figure 13: OM4300 Mechanical Dimensions Mechanical Layout... -
Page 25: Mounting
Custom Display Solutions 3.3. Mounting This section includes details for VESA and panel mounting options. Risk of physical injuries and / or property damage: When mounting the device, use four M4 x 4mm screws (max 6mm) or four M6 x 7mm (OM3150 and OM4300) to mount the VESA bracket to the rear of the device. -
Page 26: Om1330 Cut Out Dimensions Figure 16: Om1560 Cut Out Dimensions
Custom Display Solutions Panel Mounting (OM Line only) The OM line units can be panel-mounted with 14 mounting clips (not included). Make sure there is adequate space behind the panel for ventilation, and that the panel material and thickness can support the weight of the device. Step 1: Cut the panel opening using the appropriate cutout dimensions. -
Page 27: Figure 20: Om3150 Cut Out Dimensions
Custom Display Solutions Figure 20: OM3150 Cut Out Dimensions Figure 21: OM4300 Cut Out Dimensions Step 2: If rear access will be limited after installation, attach I/O cables to the device before installing into the panel (see I/O Connectors on page 8). Step 3: Place the device into the panel cutout. -
Page 28: Figure 23: Secure Monitor With Mounting Clips
Custom Display Solutions Step 4: Insert the mounting clips into the slots on the sides of the device as shown. Hand-tighten the mounting clips with a Phillips-head screwdriver to secure it to the panel. Do not overtighten the clips to avoid damaging the device enclosure. Figure 23: Secure Monitor with Mounting Clips Panel Mounting (project only) The OM3200, OM4300 can be panel-mounted using the screw holes on the back of the device. -
Page 29: On-Screen Display (Osd)
Custom Display Solutions 4. On-screen Display (OSD) This chapter describes the OSD features of our industrial monitors 4.1. OSD Buttons OSD buttons are located on the rear panel of the monitor. Figure 24: Rear Panel OSD Buttons Table 5: Monitor OSD Button Functions Button Function Remark... -
Page 30: Osd Menus
Custom Display Solutions 4.2. OSD Menus The table below lists the OSD menu structure and items. Table 6: OSD Menu Overview Main Menu Submenu Item Value/Range Default Value Comment Backlight Slider 0-100 Adjust luminance Brightness Slider 0-100 Adjust brightness Picture Contrast Slider 0-100 Adjust contrast... -
Page 31: Troubleshooting
Custom Display Solutions 5. Troubleshooting In the event that you experience trouble with your monitor, check the following items before contacting the dealer from whom the monitor was purchased. The most common problems usually involve an incorrect connection from the graphics card to the monitor. We recommend that you also consult your graphics card user's manual during the troubleshooting procedure. -
Page 32: Safety Instructions
Custom Display Solutions Safety Instructions Read and follow all instructions marked on the product and in the documentation before you operate your system. Retain all safety and operating instructions for future use. Please read these safety instructions carefully. Please keep this User‘s Manual for later reference. ...
