Summary of Contents for Cklite CK-403

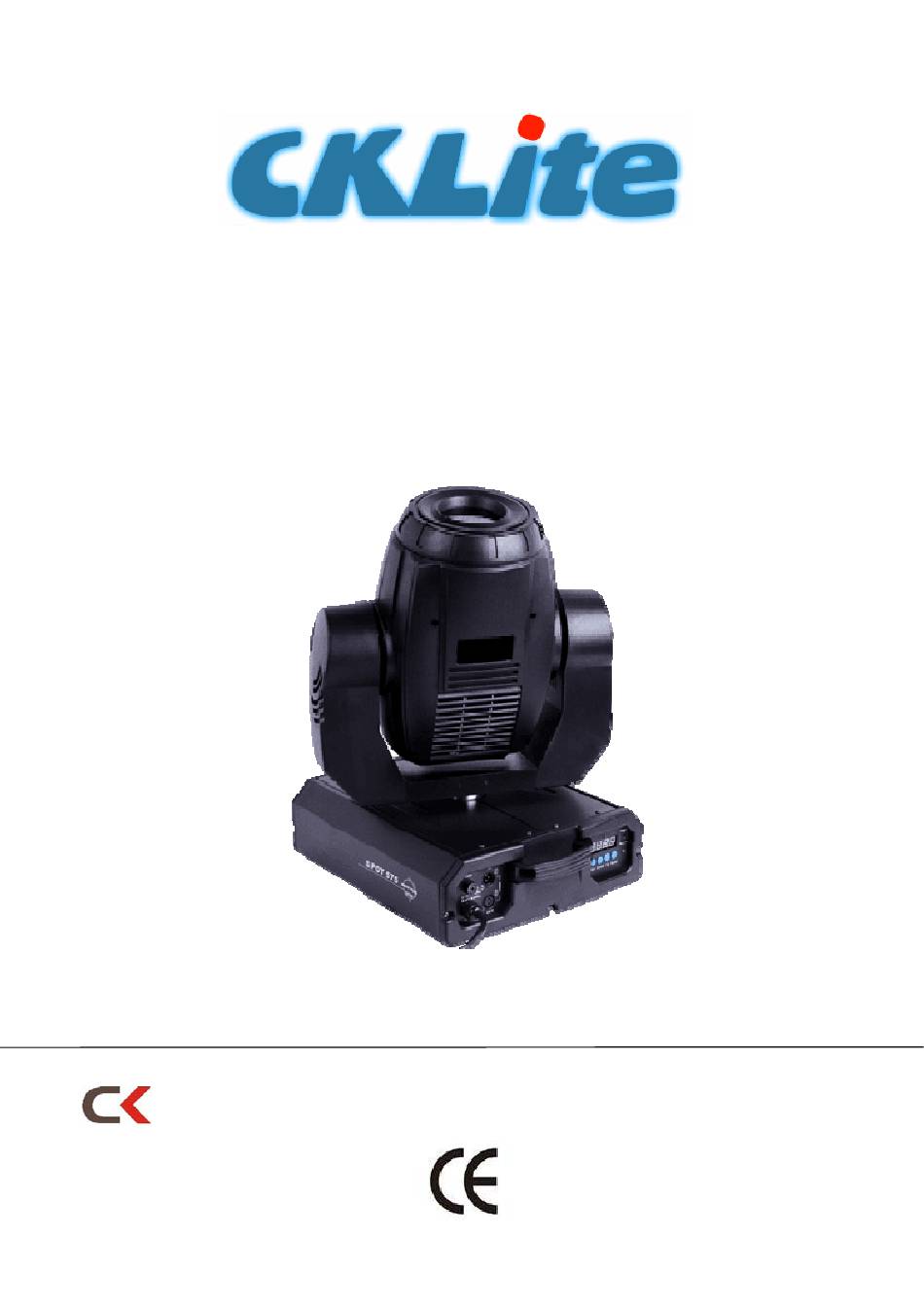

- Page 1 12CH MOVING HEAD LIGHT Item No： CK-403 USER MANUAL www.cklight.com.cn ©Copyright...
- Page 2 Note: This instructions include the important information how to safely install and use. After reading carefully, please operate it as required. At the same time, please keep a proper record of this specification in case of necessary. Firstly, thanks for buying our professional light products! This moving head light is just the perfect combinations of excellent human nature and industrial design, beautiful and elegant.
- Page 3 Warning Before your first using, please check whether it has any damages caused by the transportation. If occuring, Please don’t use and contact with the dealer or manufacturer as soon as possible. This product only apply to indoor places and the defend level is IP20. Keep it dry, avoiding moisture, overheating or dusty environment.
- Page 4 Keep bulbs clean, do not directly contact with the glass bulb by hands. There is a insurance rope connecting hole at the bottom of the lamps. Based on the safety reason, please connecte the insurance rope through the hole to have a auxiliary intallment. This product use discharge lamp, based on the characteristics of the discharge lamp, please restart it after turning off lamps for 15 minutes untill full-cooling.
- Page 5 Opened two light bulbs screw nut, remove out the old bulb.When removing, it is recommended to remove one side at first. Fitted with new light bulbs, tighten two bulbs nut. Note: When loading a new light bulb, the hands can not directly contact the spherical body of the lamp so as not to affect luminous efficiency;...
- Page 6 shielding. Please use 3-core (random incidental) or 5-core XLR plug / Block DMX512 output connected to the lamp / entrance. XLR plug / Block and wire connection between the list such as shown in the figure above. It should be noted that, when connected to XLR Plug / Block 3 of the core or core-5 should not in contact with the inner shell and core and between cores can not touch.
- Page 7 Channel Features 0-25 White 26-51 Purple 52-76 Yellow 77-103 Cyan 1 Colour Wheel 104-129 Orange 130-154 Blue 155-181 Green 182-199 200-255 Fast to slow 0-25 white 26-51 Gobo1 52-76 Gobo 2 77-103 Gobo 3 2 Rotating Gobo 104-129 Gobo 4 130-154 Gobo 5 155-181...
- Page 8 Control Panel LED Display Signal Description Green: light - DMX signal OK or from the machine; Out - no DMX signal; Flashover - DMX signal error; Red lights: Medium-speed flash - menu setting mode; Express flash - software, cpu failure; Traffic lights at the same time-liang: Address setting mode;...
- Page 9 Lamp cleaning In order to ensure reliable use of lamps to maintain clean the lamp is very necessary. Cooling fan should be clean once every 15 days. Internal and external optical lenses, reflectors and filter cleaning coating must be carried out periodically to optimize light output efficiency.
- Page 10 Main technical parameters According to your first product model, you only need to refer to the " " sign project. CM575 Input Voltage: 220V AC，50Hz Consume Power: 750W Lamp: HMI575 discharge Color: Basic color 7 color + white, adjustable speed rainbow effect Gobo / rotation: rotating gobo wheel: 7 gobos + white, bi-directional rotary at variable speed Prism: prism, Variable speed rotation.
