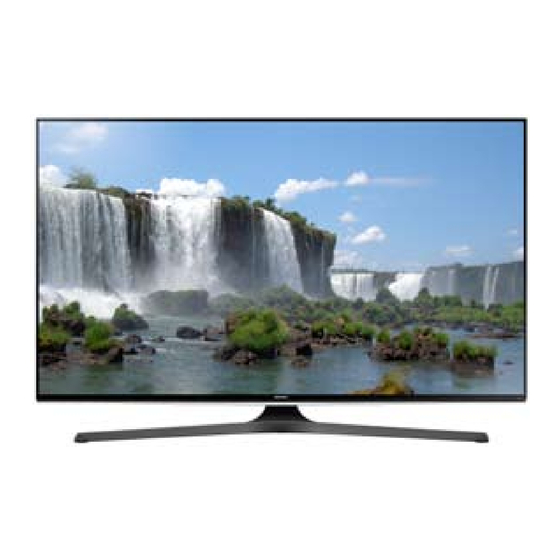

LED TV Chassis : UWK50 Model : UE40J6240AW UE50J6240AW UE55J6240AW UE60J6240AW SERVICE Manual LED TV Contents 1. Precautions 2. Product specifications 3. Disassembly and Reassembly 4. Troubleshooting 5. Wiring Diagram UE**J6240AW...
Page 2
Contents 1. Precautions ........................1-1 1-1. Safety Precautions ......................1-1 1-1-1. Warnings ........................1-1 1-1-2. Servicing the LED TV ....................1-1 1-1-3. Fire and Shock Hazard .....................1-1 1-1-4. Product Safety Notices .....................1-2 1-2. Servicing Precautions ......................1-3 1-2-1. General Servicing Precautions .................1-3 1-3. Static Electricity Precautions ....................1-4 1-4.
Page 3
5. Wiring Diagram ......................5-1 5-1. Wiring Diagram ........................5-1 5-2. Connector ..........................5-2 5-3. Connector Functions ......................5-6 5-4. Cables and Module ......................5-7 ANNEX. Exploded View & Part List [UE40J6240AWXXH FA01] ......ANNEX-1 1-1. Exploded View ......................ANNEX-1 1-1-1. Parts List ......................ANNEX-2 2-1.
3. Disassembly and Reassemble 3. Disassembly and Reassembly This section of the service manual describes the disassembly and reassembly procedures for the LED TV. This LED TV contains electrostatically sensitive devices. Use caution when handling these components. WARNING 3-1. Disassembly and Reassembly Disconnect the LED TV from the power source before disassembly.
Page 6
3. Disassembly and Reassemble Description Picture Description Screws Remove the screws of ASSY COVER P-REAR.. • 40" : 15 EA / 1 EA 6001-002755 • 50" : 18 EA / 2 EA • 55" : 20 EA / 2 EA •...
Page 7
3. Disassembly and Reassemble Description Picture Description Screws Remove the ASSY COVER P-REAR. Remove the Electric tapes shown on the image. • EMI Point : After removing release paper from the LVDS Cable bottom, attach the LVDS Cable to the C/ Chassis and rub the attatched surface.
Page 8
3. Disassembly and Reassemble Description Picture Description Screws Remove the Power Cables and Speaker Power Cable Cables. Power Cable Speaker Cable Remove the LVDS Cable, Panel Wire Cable and ASSY BOARD P-FUNCTION Panel Wire Cable ASSY Cable. LVDS Cable LVDS Cable ASSY BOARD P-FUNCTION ASSYCable Remove the NETWORK (BT/WIFI) Cable.
Page 9
3. Disassembly and Reassemble Description Picture Description Screws Remove the cables and 2 screws from the ASSY T CON. Finally carefully remove the ASSY T CON. 6001-003075 Cables Remove the NETWORK (BT/WIFI). Remove the JOG/IR unit. Completed disassembly. • Panel NOTE Reassembly procedures are in the reverse order of disassembly procedures.
Page 19
ANNEX. Exploded View & Part List Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark ...4 BN81-09752A A/S-POLARIZER TFT;V500HK3-PS1,4102B0001C ...4 BN81-09769A A/S-ASSY PCB SOURCE RIGHT;V500HK3-PS1,6B ...4 BN81-09770A A/S-ASSY PCB SOURCE LEFT;V500HK3-PS1,6B0 TCON BN96-30067B ASSY T CON P;V500HK3-PS1,10,16:9,1920x10 TC01A BN96-30643C ASSY CHASSIS FRONT P;H5500 50",PC+ABS+GF ...4...
Page 20
ANNEX. Exploded View & Part List ANNEX. Exploded View & Part List [UE60J6240AWXXH EA01] 1-1. Exploded View ANNEX-1...
Page 21
ANNEX. Exploded View & Part List 1-1-1. Parts List Code No. Description & Specification Q’ty SA/SNA Remark BN95-01333A PRODUCT LCD-SHARP; LQ600D3HD6K,CY-HH060 BN96-30743B ASSY CHASSIS FRONT P; 60H6300,PC+ABS+GF1 BN95-01460A ASSY DECORATION SMT; 6000,60,LIGHT TITAN BN96-30218F NETWORK-BLUETOOTH; WIBT40A,34.79x28x7.7m BN96-30334M ASSY SPEAKER P-FRONT; TV-SPK,J6200,6ohm,1 BN44-00705C DC VSS-PD BOARD;...
Page 22
ANNEX. Exploded View & Part List 2-1. Electrical Parts List Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE) Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark UE60J6240AWXXH (EA01) BN90-06520F ASSY W/I;LED_J6K BN81-08159Z A/S PART SET-ELEC W/I;LED TV ELEC spec-C BN81-11260P A/S PART SET-MECH W/I;UJ6L,U60JL* R001A...
1. Precautions 1. Precautions 1-1. Safety Precautions Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as electrical shock. 1-1-1. Warnings For continued safety, do not attempt to modify the circuit board. Disconnect the AC power and DC power jack before servicing.
1. Precautions 1-1-4. Product Safety Notices Some electrical and mechanical parts have special safetyrelated characteristics which are often not evident from visual inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage, wattage, etc.
1. Precautions 1-2. Servicing Precautions An electrolytic capacitor installed with the wrong polarity might explode. WARNING Before servicing units covered by this service manual, read and follow the Safety Precautions section of this manual. CAUTION If unforeseen circumstances create conflict between the following servicing precautions and any of the safety precautions, always follow the safety precautions.
1. Precautions 1-3. Static Electricity Precautions Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly called Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some field-effect transistors. The following techniques will reduce the incidence of component damage caused by static electricity. Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your body by touching a known earth ground.
1. Precautions 1-4. Installation Precautions For safety reasons, more than a people are required for carrying the product. Keep the power cord away from any heat emitting devices, as a melted covering may cause fire or electric shock. Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal temperature may cause fire.
2. Product specifications 2. Product Specifications 2-1. Product information Model UE**J6240AW Front View * W : Width H : High D : Depth Detail View Design Front Color : Black / Stand Type : V-Shape Body 907.2 x 536.5 x 63.1 mm 40"...
2. Product specifications 2-2-2. Detailed Specifications NOTE Design and specifications are subject to change without prior notice. Item UE40J6240AWXXH General Information Product Series Country HUNGARY Display Screen Size 40" Screen Size (cm) 101 cm Resolution 1920 x 1080 Quantum Dot Display Ultra Black Screen Curvature 10 bit Support...
Page 54
2. Product specifications Item UE40J6240AWXXH Smart TV Samsung SMART TV Apps Games Cloud Game Billing Yes(PL, HU, GR) Automated Content Recognition (ACR) Web Browser Smart Interaction Voice Recognition Convergence TV to Mobile - Mirroring Mobile to TV - Mirroring, DLNA...
Page 55
2. Product specifications Item UE40J6240AWXXH Design Design Wavy Line Bezel Type Slim Type Slim Front Color Black Light Effect (Deco) Stand Type V-Shape Swivel (Left/Right) Additional Feature Instant On Processor Quad Accessibility Enlarge/ High contrast Digital Clean View One Connect (Jack) Auto Channel Search Auto Power Off BD Wise Plus...
Page 56
2. Product specifications Item UE50J6240AWXXH General Information Product Series Country HUNGARY Display Screen Size 50" Screen Size (cm) 125 cm Resolution 1920 x 1080 Quantum Dot Display Ultra Black Screen Curvature 10 bit Support Video Picture Engine Hypereal Motion Rate PQI (Picture Quality Index) HDR (High Dynamic Range) Dynamic Contrast Ratio...
Page 57
2. Product specifications Item UE50J6240AWXXH Smart TV Samsung SMART TV Apps Games Cloud Game Billing Yes(PL, HU, GR) Automated Content Recognition (ACR) Web Browser Smart Interaction Voice Recognition Convergence TV to Mobile - Mirroring Mobile to TV - Mirroring, DLNA...
Page 58
2. Product specifications Item UE50J6240AWXXH Design Design Wavy Line Bezel Type Slim Type Slim Front Color Black Light Effect (Deco) Stand Type V-Shape Swivel (Left/Right) Additional Feature Instant On Processor Quad Accessibility Enlarge/ High contrast Digital Clean View One Connect (Jack) Auto Channel Search Auto Power Off BD Wise Plus...
Page 59
2. Product specifications Item UE55J6240AWXXH General Information Product Series Country HUNGARY Display Screen Size 55" Screen Size (cm) 138 cm Resolution 1920 x 1080 Quantum Dot Display Ultra Black Screen Curvature 10 bit Support Video Picture Engine Hypereal Motion Rate PQI (Picture Quality Index) HDR (High Dynamic Range) Dynamic Contrast Ratio...
Page 60
2. Product specifications Item UE55J6240AWXXH Smart TV Samsung SMART TV Apps Games Cloud Game Billing Yes(PL, HU, GR) Automated Content Recognition (ACR) Web Browser Smart Interaction Voice Recognition Convergence TV to Mobile - Mirroring Mobile to TV - Mirroring, DLNA...
Page 61
2. Product specifications Item UE55J6240AWXXH Design Design Wavy Line Bezel Type Slim Type Slim Front Color Black Light Effect (Deco) Stand Type V-Shape Swivel (Left/Right) Additional Feature Instant On Processor Quad Accessibility Enlarge/ High contrast Digital Clean View One Connect (Jack) Auto Channel Search Auto Power Off BD Wise Plus...
Page 62
2. Product specifications Item UE60J6240AWXXH General Information Product Series Country HUNGARY Display Screen Size 60" Screen Size (cm) 152 cm Resolution 1920 x 1080 Quantum Dot Display Ultra Black Screen Curvature 10 bit Support Video Picture Engine Hypereal Motion Rate PQI (Picture Quality Index) HDR (High Dynamic Range) Dynamic Contrast Ratio...
Page 63
2. Product specifications Item UE60J6240AWXXH Smart TV Samsung SMART TV Apps Games Cloud Game Billing Yes(PL, HU, GR) Automated Content Recognition (ACR) Web Browser Smart Interaction Voice Recognition Convergence TV to Mobile - Mirroring Mobile to TV - Mirroring, DLNA...
Page 64
2. Product specifications Item UE60J6240AWXXH Design Design Wavy Line Bezel Type Slim Type Slim Front Color Black Light Effect (Deco) Stand Type V-Shape Swivel (Left/Right) Additional Feature Instant On Processor Quad Accessibility Enlarge/ High contrast Digital Clean View One Connect (Jack) Auto Channel Search Auto Power Off BD Wise Plus...
Page 65
2. Product specifications 2-3. Accessories NOTE • The items’ colors and shapes may vary depending on the model. • Cables not included in the package contents can be purchased separately. • The part code for some accessories may differ depending on your region. Product Code.
2. Product specifications 2-4. Viewing the Functions The Remote Control The Remote Control Displays and selects available video Turns the TV on/off. sources. Turns the Sports Mode on or off. Gives direct access to channels. Alternately selects Teletext ON, Double, Mix or OFF.
2. Product specifications 2-5. NEW Key Features 2-5-1. 15" New UI SMART HUB START After Smart HUB setup <Videos contents> <My Apps> <Web browser> <My contents> 2-17...
Page 68
2. Product specifications 2-5-2. Instant On Enabling the TV to Boot Faster MENU > System > General > Samsung Instant On Set Fast Boot on to have the TV boot up faster. <Cold Boot> Detachable power <Instant On> Remocon on...
4. Troubleshooting 4. Troubleshooting 4-1. Troubleshooting 4-1-1. Previous Check Check list for initial operation Power Board Main Board Power Cable Panel Connectors LVDS Cable T-CON Board Speaker Bluetooth Module JOG Function/IR Sensor/WIFI Module...
Page 72
4. Troubleshooting 4-2. How to Check Fault Symptom 4-2-1. Video Customer Picture Test Main Board Pre FRC Post FRC Problem Pass Pass Pass Check Signal Source and other inputs Fail Pass Pass Main Board or LVDS Cable Fail Fail Pass T-Con or Board Fail...
Page 73
4. Troubleshooting Troubleshooting Video Test Power TV ON. Verify initial Start Up Screens with Power On. Press Mute 147 Mute to view Pattern from the MAIN Board. Press Mute 369 Mute to view Pattern from T-CON Board. Start Up Screens Mute 147 Mute Mute 369 Mute MAIN Board...
Page 74
4. Troubleshooting 4-2-2. Bluetooth / WIFI Module Bluetooth Module Troubleshooting Check Bluetooth Address at Contact Samsung. BT Address Check BT Version at Factory Mode screen. Might require upgrade. Check GSPN. T-HKMFDEUC-xxxxx T-HKMFDEUS-xxxx tztv-2.2.1-hawk-m-fhd_2015***** BT Version BT Version : xxxx...
Page 75
4. Troubleshooting WIFI Module Troubleshooting Check Wired MAC Address and Wireless MAC Address at Contact Samsung. Wired MAC Address Wireless MAC Address Check Wired MAC and Wireless MAC at Factory Mode screen. (Success/Failure) Wired MAC errors : Main Board is defective.
Page 76
4. Troubleshooting 4-3. Factory Mode Adjustments 4-3-1. Detail Factory Option NOTE If you replace the main board with new one, please change the factory option as well. The options you must change are "Type". UE40J6240AWXXH 40" Inches FA01 Vendor PANEL Code BN95-01316N...
Page 77
4. Troubleshooting UE50J6240AWXXH 50" Inches DA01 Vendor PANEL Code BN95-01321D Spec. CY-GH050CSNV4V Vendor HANSOE SMPS BOARD Code BN44-00704E Spec. L55S1_FHS Chassis Ass'y BN91-17291D MAIN BOARD PBA Ass'y BN94-10814D Byte Item Factory Reset Type 50D1AF0V Local set SW Model UJ6240 BOM Model 6240 Tuner...
4. Troubleshooting 4-3-2. Entering Factory Mode To enter ‘Service Mode’ Press the remote -control keys in this sequence : • If you do not have Factory remote control Power OFF INFO MENU MUTE Power On • If you have Factory remote control INFO Factory •...
4. Troubleshooting 4-3-3. Factory Data Option Factory Menu Name Data Range Factory Reset Type 40A6AF0VK 50D1AF0V 60H1AF0S Local Set SW Model UJ6240 BOM Model 6240 TUNER Ch Table NONE MRT Option Front Color U-R-C-55 U-T-CL-M68 LVDS FORMAT JEIDA Language_Arabic Region PnP Language ENG_US...
Page 81
4. Troubleshooting Factory Menu Name Data Range BT Support BT ADDRESS Not support HP LINE LineOut Resolution Sel Multiview Support Local Dimming Panel Wifi Vendor FAN Vendor Voice Recog Motion Recog TTV Support (21_9) PC Mode Dimming Support PX Support No Glass 3D support MLS Support MBR Support SmartView Support...
Page 82
4. Troubleshooting Factory Menu Name Data Range Number of Network Stream BT_AUDIO_ON_OFF Config_AV_PATH USING_PSI_UPDATE Fast Logo Delay JP Tuner Reset Delay Num of PANEL KEY Panel lnit Time Tcon lnit Time Write MAC Address data sync lnit Common Source Support OVD Support EcoSensor Location BENDABLE PEQ Inx...
Page 83
4. Troubleshooting Factory Menu Name Data Range TTX Group UserOSD Visual Test OPTION_SWU OTN Server Type operating OTN Test Server SWU Reset SWU Duration SWU Fail Test RF Remocon Support CDD mode DPMS Support T-CON Device Server Type Operating RTS Mode LMN 1ST THRESHOLD LMN 2ST THRESHOLD LMN 3ST THRESHOLD...
Page 84
4. Troubleshooting Factory Menu Name Data Range External Source … Eco Solution … Cloning … Shop Option Shop Mode Exhibition Mode 3D Cube Asia Option Unbalance AF Level adjust TX Power Level Mono Last Memory H Shaking SOUND High Devi Carrier_Mute Pilot Level High Thld 0x70h...
4. Troubleshooting Factory Menu Name Data Range AudioDock BT Delay 3D_Glass BT Delay Mic Scale India Sound Specker Delay Normal NTV CU Delay Lipsync Inx Lipsync CheckSum OK:0x9631 Lipsync USB Test Ready LipSync BT CheckSum OK:0x696A Debug Factory Menu Name Data Range Spread Spectrum...
Page 86
4. Troubleshooting Factory Menu Name Data Range FRC LVDS SSC ON/OFF FRC LVDS SSC MRR FRC LVDS SSC MFR FRC DDR SSC ON/OFF FRC DDR SSC MRR FRC DDR SSC MFR FRC DDR SSC Period FRC DDR SSC Modulation DDR Margin A CTRL_OFFSET_0_3 A CTRL_OFFSET_D B CTRL_OFFSET_0_3...
Page 87
4. Troubleshooting Factory Menu Name Data Range RM_BIST_ATV RM_BIST_CABLE SerDES_Check EU_CIS Stress Mode Log Analyzer Error Popup On/off DeadLock KILL CES mode on/off NONE CES Option CES convergence Option TCON Demura Bypass Factory Menu Name Data Range Self Test(for HW) Loop Back LAN Test AV Audio Test...
Page 88
4. Troubleshooting Factory Menu Name Data Range LVDS LVDS2 T-CON/FRC … PCB Test … MOIP EcoSensor Voltage Chip Test Module Test ATV CH Inspection DTV CH Inspection Satellite CH Inspection EXT Sound Inspection Woofer Sound Inspection Tweeter Sound Inspection DP TESt DP CRC Result Voltage Result Aging line test...
Page 89
4. Troubleshooting Factory Menu Name Data Range PANEL FHASH UPGRADE Logic Usb D/L SUBMICOM UPGRADE SUBMICOM JP USB UPGRADE BT UPGRADE Failure BT FREEPAIRING Function Upgrade Failure FRC3D FW Upgrade FRC3D LD UPGRADE FRC3D FW UPGRADE Camera Upgrade Mic Upgrade Failure Jump Upgrade IR Blaster Upgrade...
4. Troubleshooting Factory Menu Name Data Range UNSTABLE BAN CNT 5000ms HDMI ROBIN HDMI Callback HDMI CTS THLD HDMI CTS Cnt1 HDMI EQ AUTO HDMI Write Type Combine HDMI Switch NONE DVI SET TIME 300ms H Write HDMI Sync HDMI 3D DET HOT PLUG OFF HOLD TIME HDMI MUTE TIME REPEA AUDIO PKT...
4. Troubleshooting Factory Menu Name Data Range FRC OSD Post Pattern FRC2 Pre Pattern FRC2 Post Pattern SOC TCON2 Pattern SOC TCON2 Pattern Level Other Setting Delete S/N IPERF Stopped Expert CAL Data Backup … CaL Data Restore MICOM POWER OFF NTV RF Region NTV CU FW VER ATV IF AGC SPEED...
Page 92
4. Troubleshooting Factory Menu Name Data Range HDMI Calibration ADC Result 1st_Y_GH 1st_Y_GL 1st_Cb_BH 1st_Cb_BL 1st_Cr_RH 1st_Cr_RL 2nd_R_L 2nd_G_L 2nd_B_L 2nd_R_H 2nd_G_H 2nd_B_H White Balance R-Offset G-Offset B-Offset R-Gain G-Gain B-Gain WB_W2_R_Offset WB_W2_B_Offset WB_W2_R_Gain WB_W2_B_Gain WB_N_R_Offset WB_N_B_Offset WB_N_R_Gain WB_N_B_Gain MGA On/Off R1_Gain …...
4. Troubleshooting 4-4. White Balance 4-4-1. Calibration Into the Factory Mode. Select ADC/WB menu. Select menu. AV Calibration Option Comp Calibration Control HDMI Calibration Debug ADC/WB 4-4-2. Service Adjustment You must perform Calibration in the Lattice Pattern before adjusting the White Balance. Color Calibration ...
Page 97
4. Troubleshooting Method of Color Calibration (AV) Apply the NTSC Lattice (N0. 3) pattern signal to the AV IN 1 port. Press the Source key to switch to “AV1” mode. Enter Service mode. Select the “ADC” menu. Select the “AV Calibration” menu. In “AV Calibration Off” status, press the “► ” key to perform Calibration.
Page 98
4. Troubleshooting 4-4-3. Adjustment Into the Factory Mode. ADC/WB Select menu. White Balance Select menu. Option Control Debug (Low Light) (Hight Light) Sub Brightness Sub Contrast White Balance ADC/WB R offset R gain G offset G gain B offset B gain 4-28...
4. Troubleshooting 4-5. AV Control Tabe Control Item Cmd1 Cmd2 Cmd3 Value General Power Power 0x00 0x00 0x00 0x00 0x01 0x02 Volume Direct 0x01 0x00 0x00 (0~100) 0x01 0x00 Down 0x02 0x00 Mute 0x02 0x00 0x00 0x00 Direct 0x04 Continuous 0x01 0x00 0x03...
Page 100
4. Troubleshooting Control Item Cmd1 Cmd2 Cmd3 Value PICTURE Mode Natural 0x03 CAL-NIGHT 0x04 CAL-DAY 0x05 BD Wise 0x06 Relax New function of 12" 0x07 (only PDP TV) BackLight 0~20 0x01 0x00 (0~20) (CellLight) Contrast 0~100 0x02 0x00 (0~100) Brightness 0~100 0x03 0x00...
Page 101
4. Troubleshooting Control Item Cmd1 Cmd2 Cmd3 Value PICTURE Advanced Edge Enhancement 0x0f 0x00 Not support Settings 0x01 xvYCC 0x10 0x00 0x01 Motion Lighting 0x11 0x00 0x01 Color Space Custom 0x12 0x00 Color Green 0x01 Blue 0x02 Only for active Color Space Custom Yellow 0x03...
Page 102
4. Troubleshooting Control Item Cmd1 Cmd2 Cmd3 Value PICTURE Picture HDMI Black Level Normal 0x04 0x00 Option 0x01 Film Mode 0x05 0x00 Auto1 0x01 Auto2 0x02 Cinema New function of 12" 0x03 Smooth (only PDP TV) Auto Motion Plus 0x06 0x00 Clear 0x01...
Page 103
4. Troubleshooting Control Item Cmd1 Cmd2 Cmd3 Value PICTURE 3D View Point 0x02 (-5~5) Depth 0x03 (1~10) 3D Auto View 0x05 0x00 Message 0x01 Notice 0x02 Control Item Cmd1 Cmd2 Cmd3 Value Sound Sound Mode Standard 0x0c 0x00 0x00 0x00 Music 0x01 Movie...
Page 104
4. Troubleshooting Control Item Cmd1 Cmd2 Cmd3 Value Sound Auto Volume Night 0x02 Speaker TV Speaker 0x07 0x00 0x00 Select External Speaker 0x01 Sound Main 0x08 0x00 0x00 Select 0x01 Sound Sound Reset 0x09 0x00 0x00 Reset 3D Audio 0x0a 0x00 0x00 0x01...
4. Troubleshooting 4-6. Updating the TV’s Software • MENU/123 MENU Support Software Update You can view your TV’s software version and update it if necessary. Updating the TV’s software to the latest version • MENU/123 MENU Support Software Update Update now You can update your TV’s software by downloading the update from the Internet directly to your TV or copying the update from a USB device that contains it to your TV.
5. Wiring Diagram 5-3. Connector Functions Connector Function CN201 ↔ CNM803 Supply main power and dimming signal from IP Board to Main Board. CN1401 ↔ CON3 The LVDS signal transfered from Main Board to Panel .
Page 112
5. Wiring Diagram 5-4. Cables and Module Cables Main IP (Power) Main - TCON (LVDS) LEAD CONNECTOR ASSY CABLE P-FFC CABLE 40" BN39-02036A BN96-36274G 50" BN39-02036D BN96-36274J Code 55" BN39-02036D BN96-36274K 60" BN39-02036G BN96-36274L Photo LEAD (IP - PANEL) Function-Main LEAD CONNECTOR LEAD CONNECTOR-FUNCTION...
