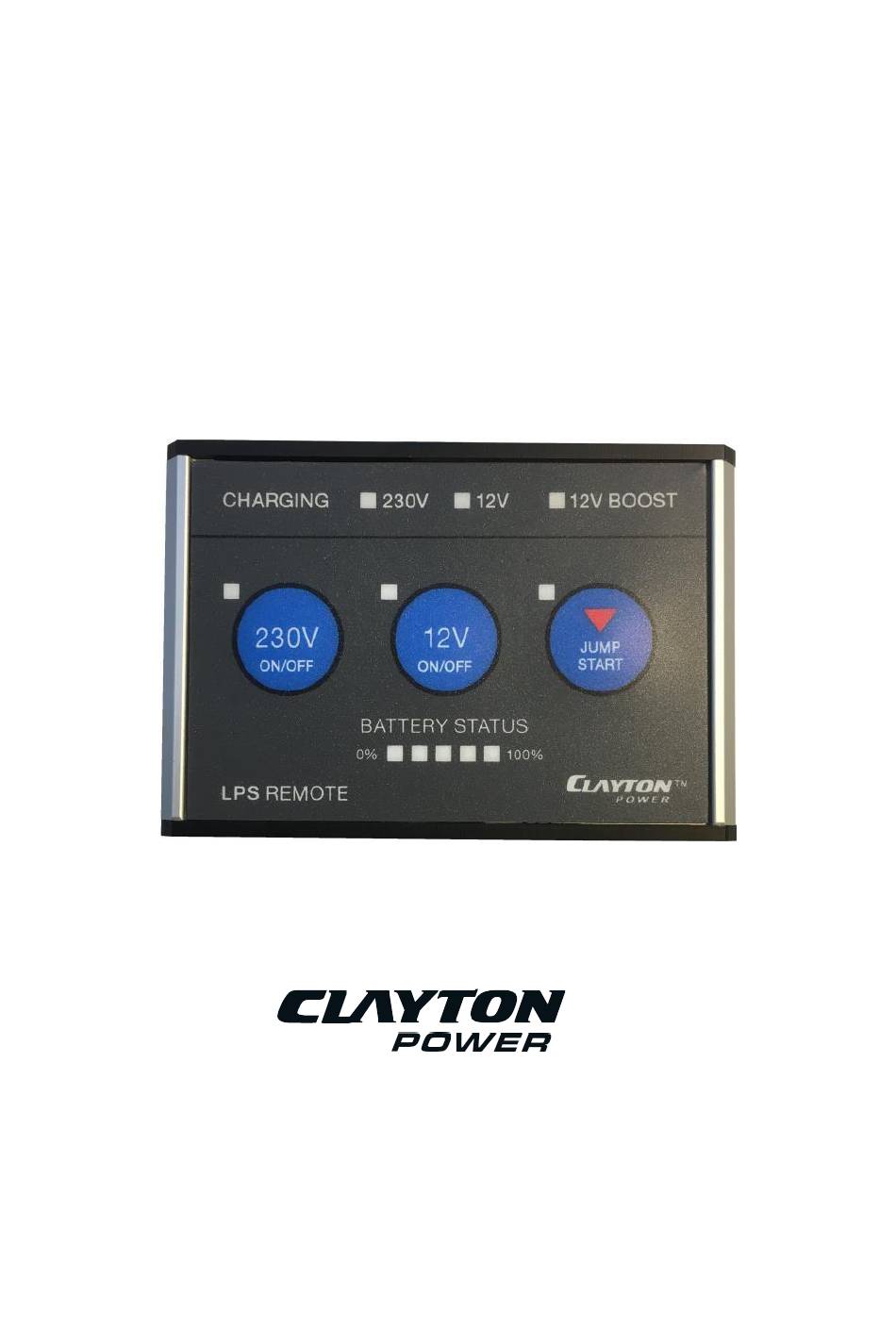

- Page 1 Manual and safety instructions | English Revision 2.01 LPS Remote...
-
Page 2: Table Of Contents
ONTENT CONTENT GETTING STARTED 1.1 P RODUCT ONTENTS 1.2 P RODUCT ETAILS PRODUCT USAGE SPECIFICATIONS CERTIFICATIONS AND COMPLIANCE STORAGE WARRANTY... -
Page 3: Getting Started
1. G ETTING TARTED 1.1 Product Box Contents Quantity Description LPS Remote M12 connector Mounting Bracket (With screws) 1.2 Product Details Connection overview Description Charging from 230VAC indicator Charging from 12VDC indicator Charging with Boost charge indicator AC operation state indicator... -
Page 4: Product Usage
2. P RODUCT SAGE All installations must be carried out by trained and qualified installers. This document is intended as a general guide for installations and not as a comprehensive, step-by- step manual. Local rules and regulations must always be followed and take precedence over any instructions provided in this guide. -
Page 5: Specifications
3. S PECIFICATIONS Parameter Value SKU no. RL1802 Operating temperature range -20 - 50°C IP classification Product weight 300g Product size (H x W x L) 50 x 75 x 15mm Supply Voltage 10.5V - 24V Self-consumption (Max) 30mA Self-consumption (Sleep) 2,5mA Wakeup Output - Current Max (Open Collector - Active High) 10mA (Supply Voltage) -
Page 6: Warranty
Brief description of the application and problem, including any error codes displayed on the device. • Obtain an authorisation number from the Clayton Power dealer before shipping the device. Carefully pack the device and ship it (freight paid) to the Clayton Power dealer. - Page 7 Sales: sales@claytonpower.com Service: service@claytonpower.com Phone: +45 4698 5760 Address: Pakhusgaarden 42-48 DK-5000 Odense C...
