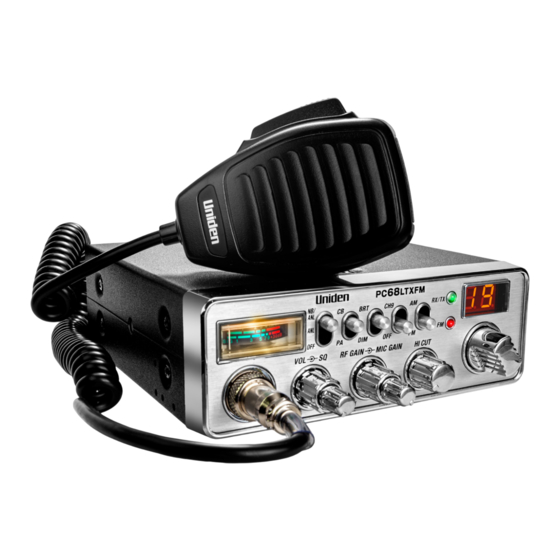

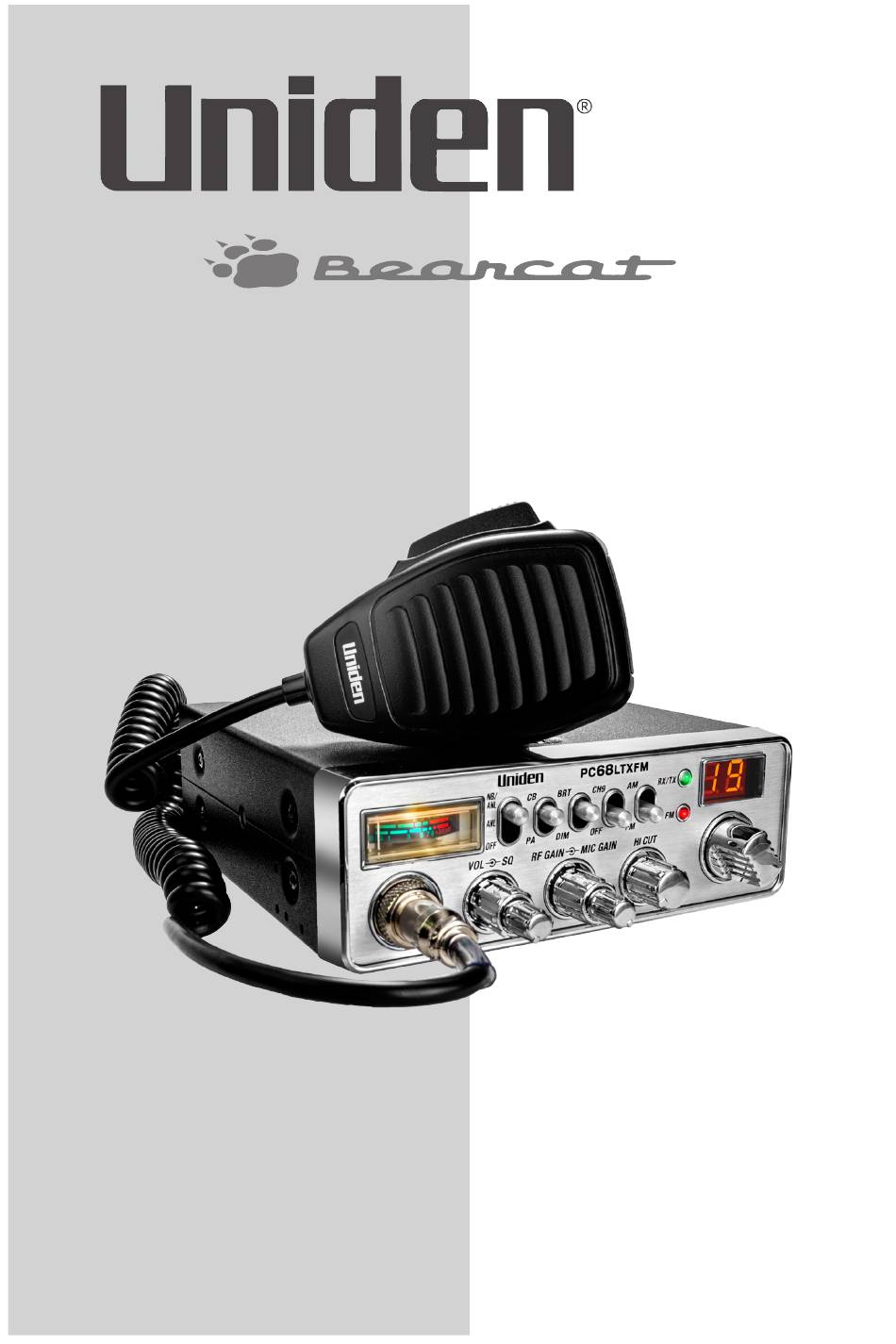

- Page 1 ® PC68LTXFM Owner’s Manual © 2025 Uniden America Corporation Printed in Vietnam Flower Mound, Texas U01UT447ZZZ(0)
-
Page 2: Customer Care
Save your receipt/proof of purchase for warranty. © 2025. All rights allowed by law are hereby reserved. Uniden is a registered trademark of Uniden America Corporation. Bearcat is a registered trademark of Uniden America Corporation. Features, specifications, and availability of optional accessories are all subject to change without notice. -
Page 3: Table Of Contents
CONTENTS DESCRIPTION ................5 EMERGENCY OPERATIONS ................5 FEATURES ...................... 5 WHAT’S IN THE BOX ..................6 FRONT VIEW ....................6 REAR VIEW ..................... 8 INSTALLATION ................9 MOBILE INSTALLATION ................9 Mobile Antenna ................... 9 Connecting the Power Cords..............10 Ground Information .................. - Page 4 FCC PART 15 AND ISED COMPLIANCE ........17 FCC PART 15 COMPLIANCE ................ 17 AVIS DE LA LARTICLE 15 DE LA FCC ............18 FCC 20 CM STATEMENT ................19 DÉCLARATION DE LA FCC 20 CM ............... 19 ISED ANTENNA STATEMENT ..............19 ÉNONCÉ...
-
Page 5: Description
Replacement or substitution of crystal, transistors, ICs, regulator diodes, or any other part of a unique nature, with parts other than those recommend by Uniden, may cause violations of the technical regulations in Part 95 of the FCC Rules or in violation of type acceptance requirements in Part 2 of the rules. -
Page 6: What's In The Box
ƒ Mounting Bracket Kit ƒ DC Power Cord ƒ Owner’s Manual ƒ Part 95 Subpart D (FCC Rules) If any items are missing or damaged, visit our website at www.uniden.com for further information. Never use damaged products! FRONT VIEW 14 13... - Page 7 Item Definition Multi-function meter: Measures RF and S signal strength. Microphone jack ON/OFF - VOLUME/SQ: Inner knob (ON/OFF / VOLUME) turns radio on or off and adjusts the speaker volume; outer knob (SQ) adjusts squelch level (reduces background noise when there is no incoming signal).
-
Page 8: Rear View
REAR VIEW 16 17 ANT. Item Definition Antenna socket: Connects antenna cable to transceiver. PA SP. jack: Connects external 8-ohm, 4-watt speaker. To prevent acoustic feedback, separate the microphone from the speaker when operating the PA at high output levels. EXT. -
Page 9: Installation
Only a properly matched antenna system will allow maximum power transfer from the 50 ohm transmission line to the radiating element. Your Uniden dealer is qualified to help you select the proper antenna for your requirements. A whip style antenna may be used for automobile installation. -
Page 10: Connecting The Power Cords
Connecting the Power Cords Uniden recommends connecting the power lead to the Ignition Switch Accessory Terminal. This way, the transceiver is automatically turned off when the ignition switch is turned off. As an alternative, the power cord may be connected to an available terminal on the fuse block or to a point in the wiring harness. -
Page 11: Using Your Pc68Ltxfm
USING YOUR PC68LTXFM TURN PC68LTXFM ON/OFF Turn the VOLUME knob clockwise until the unit turns on and the display backlight turns on. Turn the VOLUME knob counter-clockwise to turn the unit off. CB MODE Be sure that the power source, antenna, and microphone are properly connected before proceeding. -
Page 12: Pa Mode
PA MODE Using the PA mode requires an optional speaker. 1. Switch to PA. 2. Press and hold PTT to speak. 3. Release when finished. To prevent acoustic feedback, separate the microphone from the speaker when operating the PA at high output levels. If you are in PA mode but not pressing PTT, the radio receives CB transmissions and transmits them through the PA speaker. -
Page 13: Preventive Maintenance
PREVENTIVE MAINTENANCE Every six months: 1. Check the Standing Wave Ratio (SWR) with an SWR meter. 1. Be sure all electrical connections are tight. 2. Inspect antenna coaxial cable for wear or breaks in shielding. 3. Be sure all screws and mounting hardware are tight. MAINTENANCE The PC68LTXFM is designed to give you years of trouble-free service. -
Page 14: Specifications
Calibration does not move the Adjust the antenna length. meter needle to the left side Check all antenna connections. If you do not get satisfactory results after performing these checks, visit uniden.com for information. SPECIFICATIONS GENERAL Channels: CB Frequency Range: 26.965 - 27.405 MHz... -
Page 15: Radio Code Definitions
Spurious Harmonics Emission -70 dBc RECEIVER Sensitivity AM at 10 dB (S+N)/N: -111dBm FM at 12dB SINAD: -120dBm Maximum Sensitivity (AM): -113dBm Signal Meter S-9: -67dBm Audio Output Power (max): 5 watts Audio Output (10% Dist.): 4.5 watts Image Rejection (1st): 75 dB typical Adjacent CH Rejection: 60 dB typical... - Page 16 Code Meaning Code Meaning 10-1 Received poorly 10-34 Trouble at this station 10-2 Receiving well 10-35 Confidential information 10-3 Stop transmitting 10-36 Correct time is 10-4 OK, message received 10-37 Wrecker needed at 10-5 Relay message 10-38 Ambulance needed at 10-6 Busy, stand by 10-39...
-
Page 17: Fcc Part 15 And Ised Compliance
Code Meaning Code Meaning 10-30 Does not conform to FCC 10-94 Please give me a long count rules 10-32 I will give you a radio check 10-99 Mission completed, all units secure 10-33 EMERGENCY TRAFFIC 10-200 Police needed at FCC PART 15 AND ISED COMPLIANCE Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. -
Page 18: Avis De La Larticle 15 De La Fcc
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ƒ... -
Page 19: Fcc 20 Cm Statement
ƒ Réorienter ou déplacer l’antenne de réception. ƒ Augmentez la distance entre l’équipement et le récepteur. ƒ Connecter l’équipement à une prise sur un circuit différent de celui auquel le récepteur est connecté. ƒ Consulter le revendeur ou un technicien radio/TV expérimenté pour obtenir de l’aide. -
Page 20: Énoncé D'antenne Ised
Uniden service center for a defect or malfunction covered by this warranty, (E) used in any conjunction with equipment or parts or as part of any system not manufactured by Uniden, or (F) installed or programmed by anyone other than as detailed by the owner’s manual for this product. - Page 21 Product. Include evidence of original purchase and a note describing the defect that has caused you to return it. The Product should be shipped freight prepaid, by traceable means, to warrantor at: Uniden America Corporation 301 International Parkway, Suite 460 Flower Mound, TX 75022...
