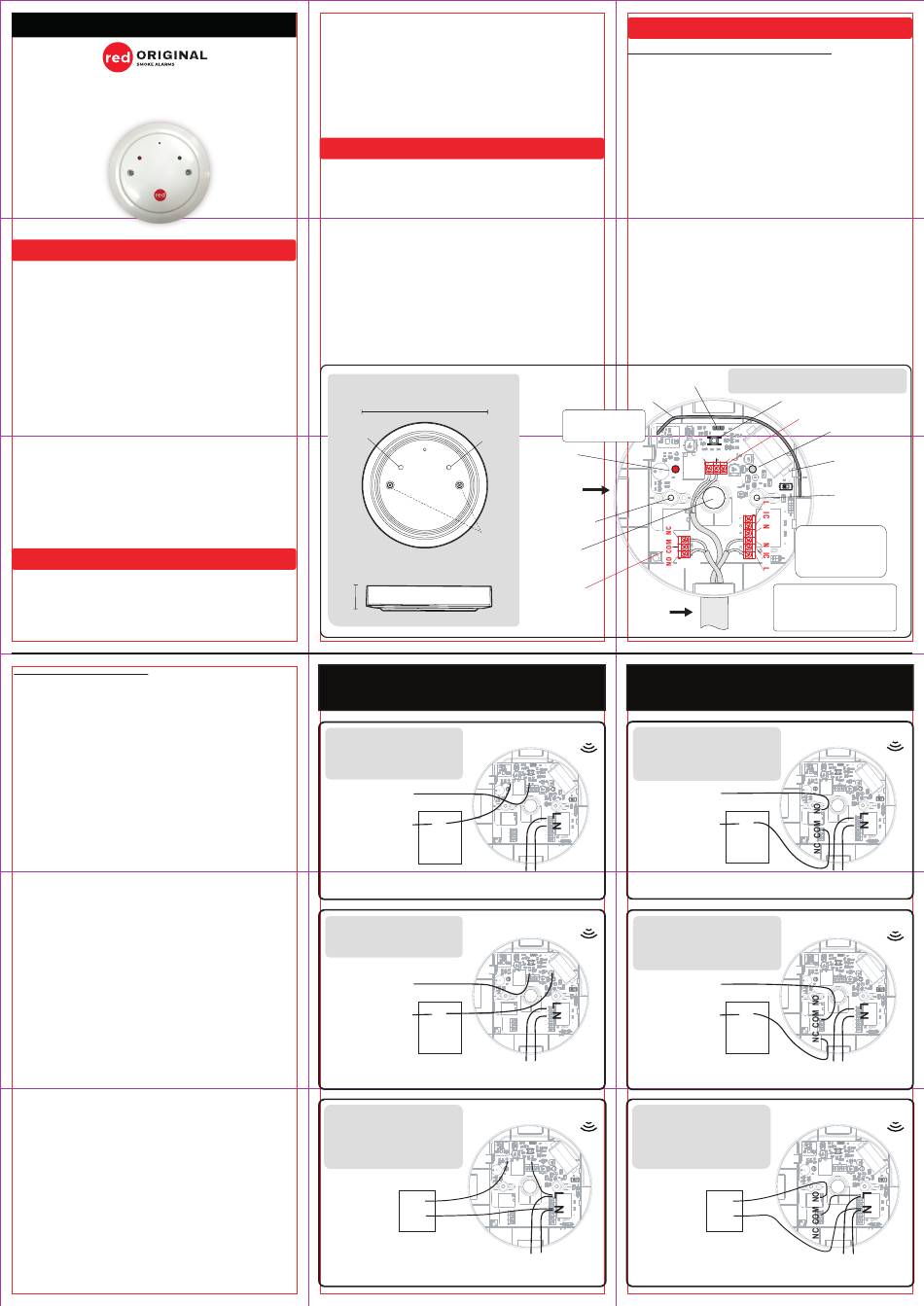

Red Smoke Alarms RRURF User Manual

User Manual
Model: RRURF
Wireless Relay Unit with 10 year 3V Lithium
Battery Backup and Conduit Adaption
SPECIFICATION
Product Life: 10 years
Supply Voltage: 230V AC
Backup Battery: 3V Lithium Battery (Sealed)
Battery Consumption: 0.8W (standby)
Relay Rating: 250V a.c., 5A resistive
Continuous or Pulse mode
Output: Two volt free contact (NO/NC)
Visual Indicator: Green - Bright: Power On
Red - Flashing: Low Battery
Red - Illuminated: RF Pairing Mode
Red - Illuminated: Fire Triggered
Wireless Interconnection:
Radio Frequency [433MHz]
Wireless Interconnected up to 20 Pieces
Indoor max 30m / outdoor max 100m
Hardwire Interconnection:
Hard Wired Interconnected up to 40 Pieces
150M in Free Field
Operating/Storage Temperature: 0 C to 45 C
o o
Operating/Storage Humidity: 5% to 95% Relative Humidity
Plastic Material: ABS
Approval: AS/NZS 62368.1:2022
AS/NZS 4268:2017 AMD 1:2021
AS/NZS CISPR 32:2015 AMD 1:2020
INTRODUCTION
Please read and retain this manual for the entire lifespan of the device,
as it contains essential information on the installation and operation of
the RRURF Relay Unit with RF. This manual is an integral part of the
product. If you are installing the device, you must provide a copy of the
manual to the homeowner and any subsequent users.
2. INSTRUCTION FOR WIRING
Ensure that the Relay Unit is securely mounted on the wall or
ceiling, with house wires passing through it at this stage.
2.1 Connect the power supply wires (Live and Neutral) to the mains
terminal block as illustrated in Fig. 2. (Tighten screws to a maximum
torque of 0.5 Nm (5.1 kgf.cm)).
There are two relays in this RF base:
The relay terminal marked "FIRE" activates when the Relay Unit
receives either a fire warning signal or a test/silence RF signal from
the alarm device within the RF network, or a wired connection
signal.
The relay terminal marked "FAULT" triggers when the Relay Unit
receives a low battery or fault signal from the alarm device within
the RF network.
Note: The "FIRE" and "FAULT" relays are independent of each
other.
Note: Note: Please refrain from connecting a green/yellow or
copper earth wire to any terminal, as grounding the unit is not
permitted.
2.2 Connect the L (Live) wire from the auxiliary device power supply
to the COM (Common) terminal.
2.3 Depending on the control requirements of the auxiliary device,
connect either the NC or NO contact of the relay to the auxiliary
device.
• If the relay is used to interrupt a boiler during an alarm, use NC.
(refer to Fig. 4)
• For a beacon that should only activate during an alarm, use NO.
(refer to Fig. 5)
• Identify the type of auxiliary device and connect it to the "FAULT"
relay terminal (refer to Fig. 7 and 8).
2.4 Alternatively, if the auxiliary device shares the same power
source circuit as the relay (i.e., 230VAC), insert a linking wire
between the L (Live) terminal and the C (Common) terminal of the
relay unit. Then, connect the NC or NO contact of the relay unit,
depending on the requirement, to the auxiliary device. Connect the
N (Neutral) terminal from the relay to the auxiliary device as
depicted in the diagrams below. (refer to Fig. 6)
Note: Note: The same wiring method can also be applied to the
"FAULT" Relay Terminal. (refer to Fig. 9).
The RRURF Relay Unit with RF is a highly versatile device that can
connect to smoke alarms via both wireless RF signals and hardwired
connections. It activates a relay upon receiving an alarm signal from a
compatible smoke alarm.
The electrically isolated relay contacts can be utilised for various
applications, such as signaling and controlling lights. The RRURF Relay
Unit with RF is powered by a 230V AC mains supply and includes a
backup battery to ensure continuous operation. By default, the relay is
set to operate continuously, switching on when a smoke alarm detects
fire and switching off when the alarm condition ceases.
IMPORTANT SAFETY NOTES
• The installation of the RRURF Relay Unit with RF must be performed
by a qualified electrician in compliance with relevant local Electrical
Installation Regulations. Improper installation may pose risks of electric
shock or fire hazards and can damage the product. This unit is not
waterproof and should not be exposed to dripping or splashing.
• Connect the RRURF Relay Unit with RF to Alternative Energy Sources
(Wind, Solar, UPS, etc.) - This product is designed to connect to a Pure
or True Sine Wave 230V AC supply. If you intend to connect it to a
power source utilising an inverter, such as a PV solar panel, ensure that
the Total Harmonic Distortion (THD) is less than 5%. If you are uncertain
about the THD specifications, please consult the inverter manufacturer.
The same requirement applies to battery-powered Uninterruptible Power
Supply (UPS) inverters.
• The relay base must not be powered from a light dimmer circuit.
Fig. 1 Product Dimension
140mm
Red LED
Green LED
Indicator
Indicator
COVER
ATTACHMENT
SCREWS
28mm
APPLICATION OF TRIGGERING THE RELAY,
IN CASE OF FIRE ALARM
Fig. 4 Relay used to cut
out a boiler in
case of fire alarm
L
Auxiliary Device
Power Source
(230V or Low
N N
Voltage)
Auxiliary
Device
Fig. 5 Beacon that should
only be on, in case
of fire alarm
L
Auxiliary Device
Power Source
(230V or Low
N N
Voltage)
Auxiliary
Device
Fig. 6 Auxiliary device
powered from
same circuit as
relay, in case of
fire alarm
L
Auxiliary
N
Device
INSTALLATION INSTRUCTION
1. BEFORE THE WIRING OF THE RELAY UNIT
NOTE: USERS ARE STRONGLY ADVISED TO READ THE
MANUAL THOROUGHLY AND FOLLOW THE STEPS IN
CHRONOLOGICAL ORDER TO ENSURE THE PROPER SETUP
OF THE RELAY UNIT.
1.1 Ensure the mains power is disconnected from the circuit and the
backup battery is turned off before installing the relay unit to ensure
safety
1.2 Securely attach the relay unit to the ceiling or wall according to
the installation instructions to prevent injury. Select an appropriate
mounting position near the mains supply and the device to be
connected to the relay.
Note: Avoid metal surfaces or large metal objects that may interfere
with the RF signal range.
1.3 If the incoming wiring is on the surface of the wall/ceiling, use
appropriately sized conduit to connect with the unit. Carefully
remove the knockout material with a sharp knife, ensuring no gaps
remain when mated with the conduit.
Note: There is one suitable surface cabling knockout. The other two
surface entries are not recommended, as the wiring may reduce the
antenna signal. There is one rear entry knockout. Refer to Fig.2 for
details.
PIN & PIN Cap
Antenna (keep
distance with cable)
C - Common
NC - Normally Closed
NO - Normally Open
Red LED
Indicator
Surface
Conduit
Cable Entry
Screw Mouting
Holes
Rear Entry
Knockout
Relays for
Fault or Low
Battery Surface
Conduit Cable
APPLICATION OF TRIGGERING THE RELAY,
IN CASE OF LOW BATTERY OR FAULT
RF Signal Trigger
Fig. 7 Auiliary Device,
individually powered,
connected to Normal
Close (NO)
P C
NO COM NC
Auxiliary Device
NO COM NC
FIRE
OFF ON
Power Source
(230V or Low
Voltage)
FAULT 230VAC
Power Supply
(230V AC)
RF Signal Trigger
Fig. 8 Auiliary Device,
individually powered,
connected to Normal
Close (NC)
P C
NO COM NC
Auxiliary Device
NO COM NC
FIRE
OFF ON
Power Source
(230V or Low
Voltage)
FAULT 230VAC
Power Supply
(230V AC)
Fig. 9 Auxiliary device
RF Signal Trigger
powered from
same circuit as
relay, in case of low
P C
NO COM NC
battery / fault signal
NO COM NC
FIRE
OFF ON
Auxiliary
Device
FAULT 230VAC
Power Supply
(230V AC)
Fig. 2 Wiring details for connecting to a
low voltage or voltage free device
RF Pairing Button
Relays in case of Fire
Green LED
P C
Indicator
NO COM NC
Lithium
Backup-Battery
NO COM NC On/off Switch
FIRE
FIRE
OFF ON
Screw Mounting
Holes
CONNECT MAINS
TO TERMINAL BLOCK
L- LIVE
N - NEUTRAL
FAULT
FAULT 230VAC
IC - INTERCONNECT
USE THIS TERMINALTO LOOP
MAINSPOWER AND
INTERCONNECT LINE TO
ANOTHER ALARM OR DEVICE
RF Signal Trigger
P C
L
NO COM NC
FIRE
N N
Auxiliary
FAULT 230VAC
Device
Power Supply
(230V AC)
RF Signal Trigger
P C
NO COM NC
L
NO COM NC
FIRE
N N
Auxiliary
FAULT 230VAC
Device
Power Supply
(230V AC)
RF Signal Trigger
P C
NO COM NC
NO COM NC
FIRE
L
N
FAULT 230VAC
Power Supply
(230V AC)
OFF ON
OFF ON
OFF ON
