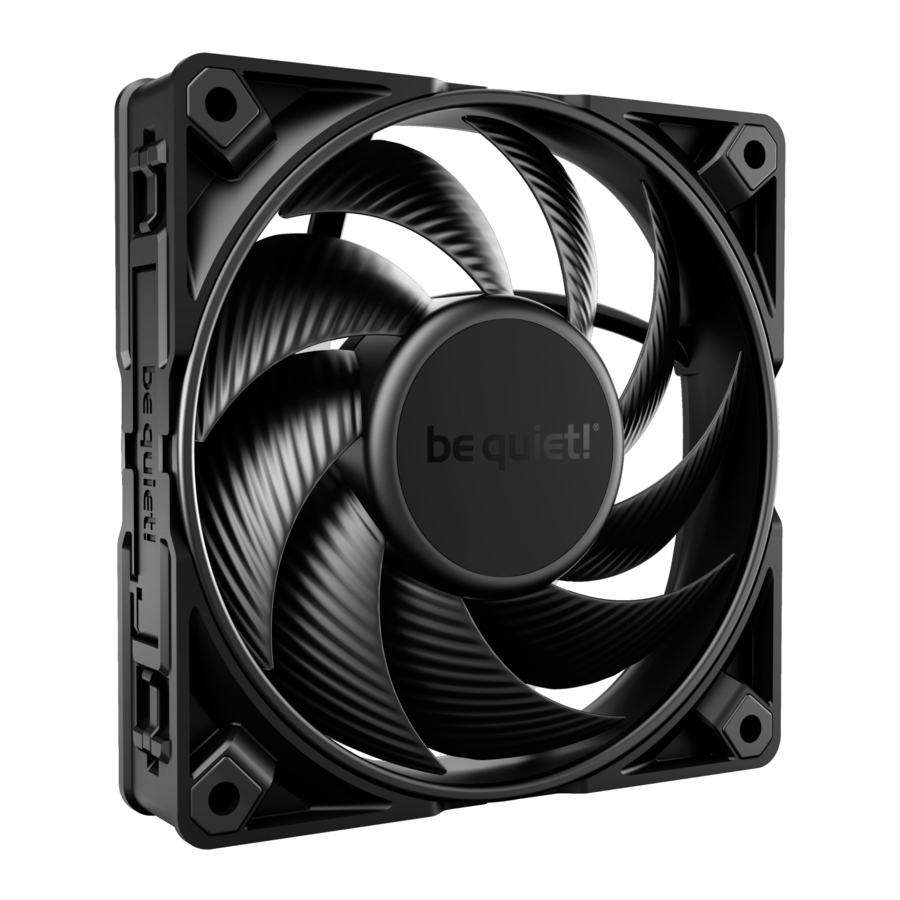

BE QUIET! SILENT WINGS PRO 4 Manual

Installation of the hard plastic fittings

1. Clip the hard plastic elements from above onto the fitting lock. Use the hard plastic element with the marking Corner Type B for the fitting lock where the fan cable is. Use the hard plastic elements with the marking Corner Type A for the remaining fitting locks.

   To remove the hard plastic elements, press down the latching lugs on the right and left side to remove the hard plastic elements. Then pull the mounting element upwards.

2. The speed switch allows to change between mid-speed, high-speed and ultra high-speed. To change the fan speed, pull the switch to the desired position.


   	120mm	140mm
   M	1600rpm	1100rpm
   HS	2500rpm	1900rpm
   UHS	3000rpm	2400rpm

3. Screw down the fan using the included screws.


Installation of the anti-vibration fittings

1. The rubber elements as well as the fitting locks are engraved on the inside.


• When positioned towards "L" there is 1mm gap between the housing and the fan frame, resulting in the maximum possible decoupling.
• When you position the rubber elements towards "S" they fit flush with the housing.

2. The fan is then mounted into place using the washers and push-pins.


Do not touch the fan during operation!
