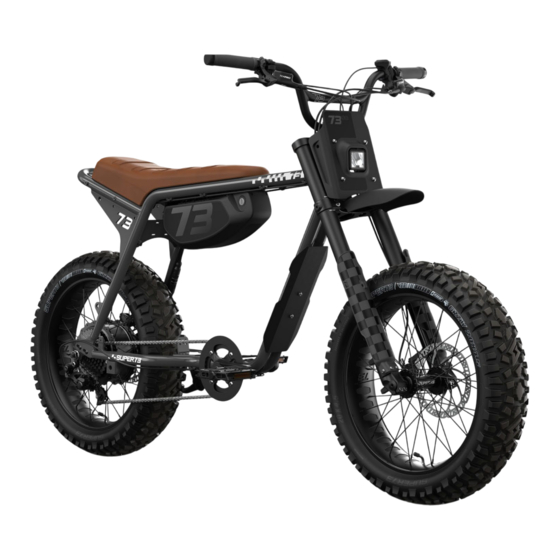

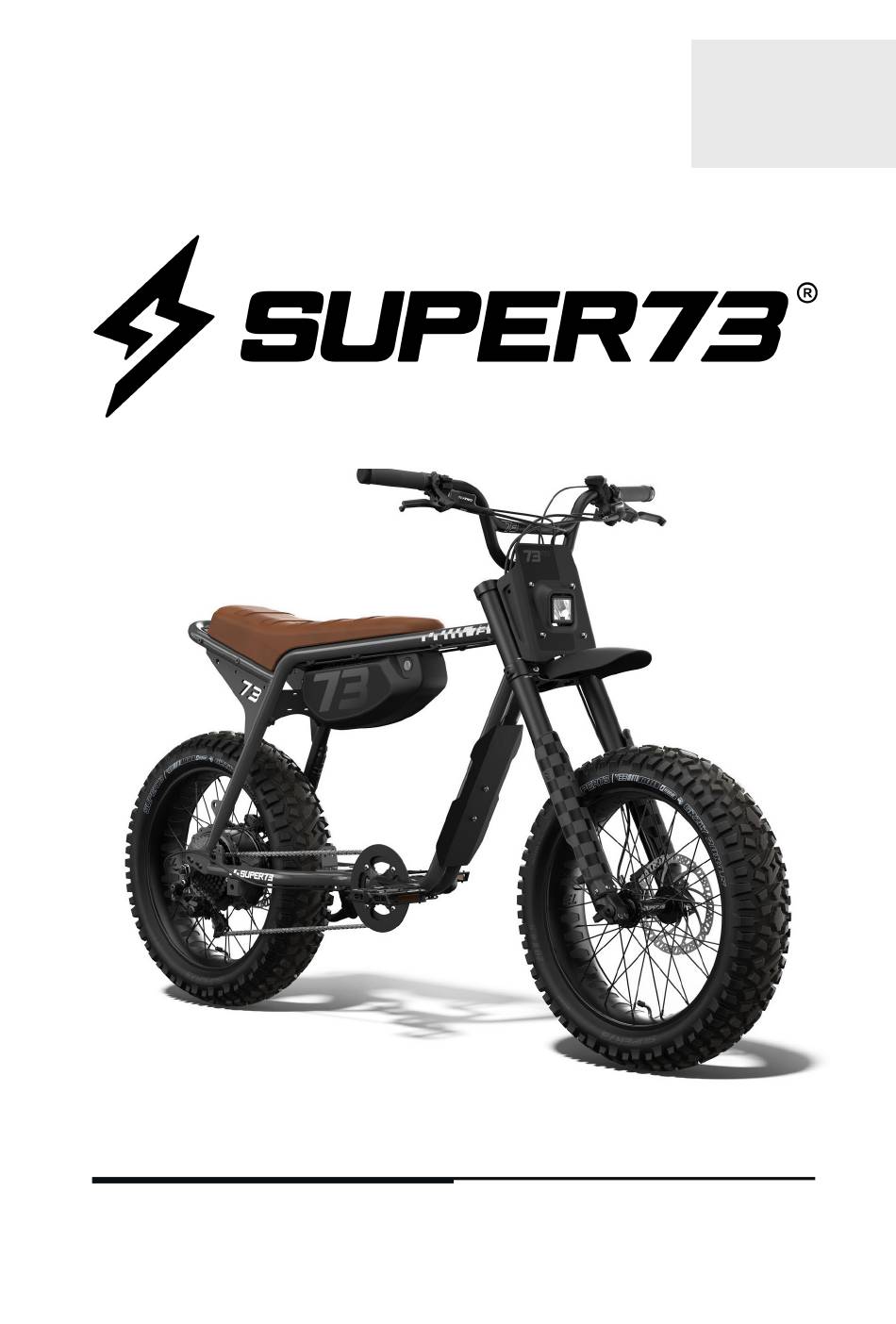

- Page 1 V.3 2025 SUPER73-Z ADVENTURE SERIES CORE MODEL, SPECIAL EDITION, LIMITED EDITION OWNER’S HANDBOOK ASSEMBLY & MAINTENANCE...
- Page 2 Please note all instructions and notices are subject to change and updates without notice. Please visit eusupport.super73.com for periodic tech updates. Feedback: eusupport.super73.com This is not to be reproduced wholly or in part without the written permission of SUPER73 Inc. ©Copyright 2024 SUPER73 Inc., V.3. Updated 12/2024.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Contact Information General Information Diagram of Z Adventure Series Legal Information Intended Use Getting Started Assembly Instructions Product Registration Pre-ride Safety Check Operating the Bike SUPER73 Ride App General Warnings Safety Maintenance Schedule Maintenance and Components Warranty... -
Page 4: Mission Statement
MISSION STATEMENT SUPER73 exists to create adventure and community. We strive to bolster adventurous exploration through innovation, create positive and forward-thinking experiences with integrity, and cultivate enthusiastic support and vision for the community. -
Page 5: General Information
Please perform a safety check before each use, as described on in the “Pre-ride Safety Check” section on pg. 14 of this handbook. Do not ride your SUPER73 if it has been assembled incorrectly. Riding an incorrectly assembled bike may put your own safety at risk as well as others. - Page 6 DIAGRAM OF THE SUPER73-Z ADVENTURE SERIES BATTERY REAR DROPOUT CHAIN RING BOTTOM BRACKET REAR HUB MOTOR DERAILLEUR...
-
Page 7: Suspension Fork
DISPLAY (LEFT SIDE) SHIFTER (LEFT SIDE) THROTTLE (RIGHT SIDE) HEADLIGHT SUSPENSION FORK FRONT DROPOUT CRANK SET BRAKE ROTOR... -
Page 8: Legal Requirements
INTENDED USE No liability or warranty shall be accepted if the use of the SUPER73 deviates from this intended use (as set out within this handbook), if safety instructions are not observed, in the event of overloading, or if faults are not properly rectified. Similarly, no liability or warranty... -
Page 9: Getting Started
GETTING STARTED DANGER! Please read the instructions entirely before assembly to ensure the proper functioning of the SUPER73. Failure to do so could result in serious injury or death and the risk of potential injury to those around the user. VIDEO View our assembly video to follow step-by-step instructions on our website at support.super73.com... -
Page 10: Assembly Instructions
ASSEMBLY INSTRUCTIONS DANGER ! Do NOT ride your SUPER73 if it has been assembled incorrectly. Riding an incorrect- ly assembled e-bike will give rise to a risk of injury, death and/or property damage. Before you ride your e-bike (including before the first use and before all subsequent uses), perform the Pre-ride Safety Check on pg. -
Page 11: Install Pedals
2. INSTALL PEDALS A. Install and tighten the pedals using the 15 mm open wrench. Look for a letter marking “L” or “R” on each respective pedal and make sure to install the left pedal on the left crank, and the right pedal on the right crank. The right pedal is screwed on in a clockwise direction. -
Page 12: Charge The Battery
Power output will vary depending on battery capacity. If your battery is at 20%, for example, it won’t have as much power as a fully charged battery. If your SUPER73 has been shipped to you along with the battery, please fully charge the battery first. When a battery leaves the factory, it’s not fully charged as required by international air and sea legislation. - Page 13 Write down below the following information for future reference: Location or website of purchase: ______________________________________________ Date of purchase: ___________________________________________________________ Model name: SUPER73-Z Adventure / Z Adventure SE / Z Adventure LE Bike Serial #: _______________________________________________________________ (Engraved on the underside of the bottom bracket in between the pedal cranks)
-
Page 14: Pre-Ride Safety Check
DANGER! Ensure that this pre-ride safety check is carried out before each and every use of your SUPER73 including the first ride. Failure to do so will give rise to a risk of injury, death and/or property damage. Make sure the brakes have already been applied before getting on to your bike. -
Page 15: Operating The Bike
27. 1. POWERING BIKE ON • Disengage the kickstand, grab the brake handle to engage the brakes, and seat yourself on the SUPER73. • Press the battery power button to turn the e-bike on. • Once the display screen is illuminated and the start- up process is complete, the throttle or pedal assist will be active and you’re ready to ride. - Page 16 3. PEDAL ASSIST SYSTEM To select your pedal assist mode, follow these steps once the display has been turned on and you are seated on the SUPER73: • Press on the menu “O” button briefly to switch between display views until “Assist” appears on the screen.
-
Page 17: Settings Menu
6. SETTINGS MENU • Hold down the “O” button on display to activate the settings menu. • Settings parameters: • Contrast (display window contrast 0-100). • Units (standard is set to mi/F). • Position (changes the orientation of display if it is on the left or right side of the bike). -
Page 18: Shifting Gears
8. SHIFTING GEARS The SUPER73-Z Adventure Series is equipped with an 8-speed gear kit. Gears can assist you when riding on various terrains. Larger gears are ideal for flat road riding and smaller gears are ideal for climbing hills. • The gear-shifting levers are installed on the left-hand side of the e-bike. -
Page 19: Super73 Ride App
By operating your bike and the app simultaneously, you put yourself at risk for collision and serious injury. Each SUPER73-Z Adventure comes programmed in the Class-2 ride mode, which allows for throttle operation and pedal assist riding up to 20mph. This allows the Z Adventure to be legally ridden on most bike paths without a license, insurance, or registration. -
Page 20: General Warnings
NOTICE: Only take on tasks for which you have the necessary knowledge and tools. It is recommended that users pay special attention to all of the general operating rules below before operating their SUPER73 e-bike. • When riding, obey the same road laws as other road vehicles, including giving right of way to pedestrians and stopping at red lights and stop signs. -
Page 21: Wet Weather
FOR PARENTS AND GUARDIANS As a parent or guardian, you are responsible for the activities and safety of your child. The SUPER73 is not designed for use by children under the age of 16. Obey local regulations and always wear a helmet. -
Page 22: Important Safety Instructions
• Any after-market modifications to any electrical component on your SUPER73 not expressly approved by SUPER73 may void the warranty and create an unsafe riding experience. • Do not put fingers or hands into the product, including the wheels, tires,... - Page 23 The A-weighted emission sound pressure level at the driver’s ears is less than 70 Db(A). • Some parts of your SUPER73 bike will heat up during usage, such as brake rotors or chargers; be careful not to touch them immediately after use. SAVE THESE INSTRUCTIONS...
-
Page 24: Maintenance Schedule
MAINTENANCE SCHEDULE DANGER! Intensive use of the SUPER73 may cause possible damage to the frame and the fork. It is important to inspect the frame and the fork and look for signs of cracks. A broken or cracked frame and fork can cause an accident and injury. Refer to the Intended Use section on pg. -
Page 25: Maintenance And Components
DANGER! Do not continue to ride your SUPER73 if any failure of hardware including bolts and fasteners integral to the brake system or wheel assembly should occur. Riding your SUPER73 with failed or missing hardware may put you at risk for potential injury or death. - Page 26 Mechanical brake lines require maintenance not only on the pads and rotors but also on the mechanical brake cable. For optimum braking performance, SUPER73 bikes are equipped with 2-piston Hydraulic brakes on all Z-Adventure trims. The SUPER73 brake orientation is as follows:...
- Page 27 This may be easier to achieve by using an Allen wrench. 2. Once free of the caliper, the pads may be easily removed from the pad holder. BATTERY The battery is the most important component of your SUPER73. By following the best practices below, you can optimize its life: •...
- Page 28 Please follow proper charging instructions before charging the battery found on pg. 12. To charge the battery, use only the original charger or charger approved by the manufacturer. Remove the battery from the charger and disconnect the charger from the power supply when charging is complete. DANGER! Do not open the battery or charger.
-
Page 29: Lighting System
SEAT It is not possible to adjust the seat height of the SUPER73 e-bike. It is fixed to the frame by bolts. The minimum seat clamping torque on the frame is 6.78 Nm (5lb /ft). - Page 30 • Avoid transport of any SUPER73 e-bike on a vehicle rack during rain, which may cause water damage to the electrical components. Contact SUPER73 support if you have...
-
Page 31: Warranty
(b) The person seeking warranty coverage is the original and first owner of the bike (warranty is not transferable in the case of a re-sale). (c) The bike was used in accordance with its intended purpose. The SUPER73 bike is intended for use on paved roads.
