JRP Edge EGT + Boost Manual

Manual - EGT + Boost & EGT
⚠ WARNING - Please Read Entire Manual Carefully!
•
Do not change settings while driving.
•
This product is designed to work with 12 Volt (v) vehicles only! This product will not operate on 6v or 24v systems.
•
Take care reading through this manual, if you're not sure ask JRP via Email/ FB Messager. For best results professional installation
may be required for some components.
•
Do not disassemble or modify this product. Such actions will not only void the warranty, but may also damage or
destroy the product.
•
Do not perform installations of this product immediately after the engine has been switched off. The engine and exhaust system
are extremely hot at this time and can cause burns if touched.
➥ Main Features
•
High quality and accurate Boost pressure and EGT temperature sensors
•
Onboard memory battery. Gauge will retain some settings even after being disconnected from the vehicles battery.
•
High contrast vertically aligned Liquid Crystal Display (LCD), no shadows when backlight is turned off.
Different colour values can be chosen for night and day running mode.
•
⚠ Warning values can be programmed to trigger a warning buzzer with 3x different chimes.
•
The warning buzzer can be set 4x different sound levels: Off, low, medium, high.
•
Brightness can be set to 5 different values. For both night and day running mode.
•
3x different movements can be set for indicator display type.
•
Peak values obtained during operation will be stored, this can be reviewed and cleared at a later time
(value will remain stored between engine cycles or trips).

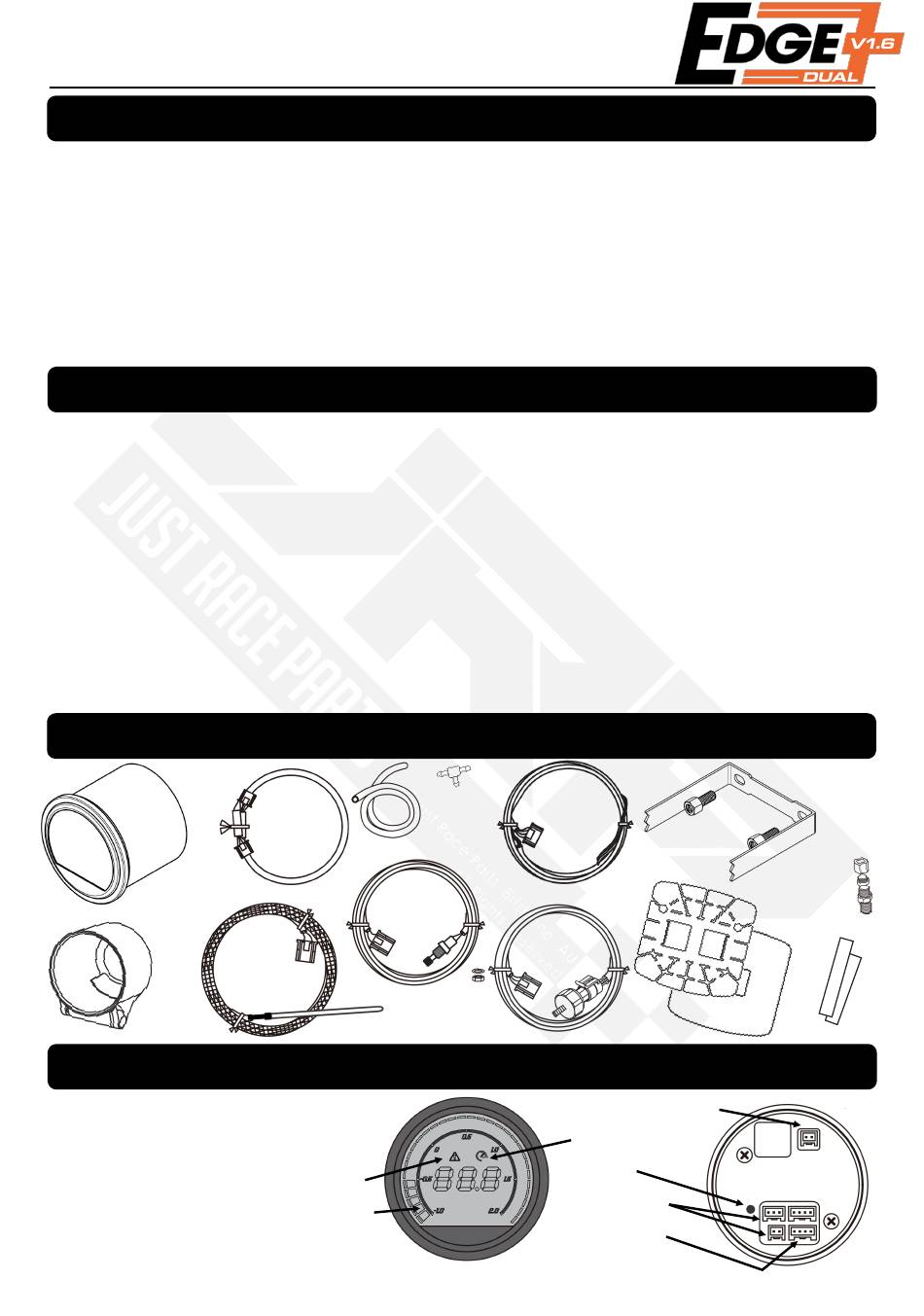

What's Included In Your Kit?

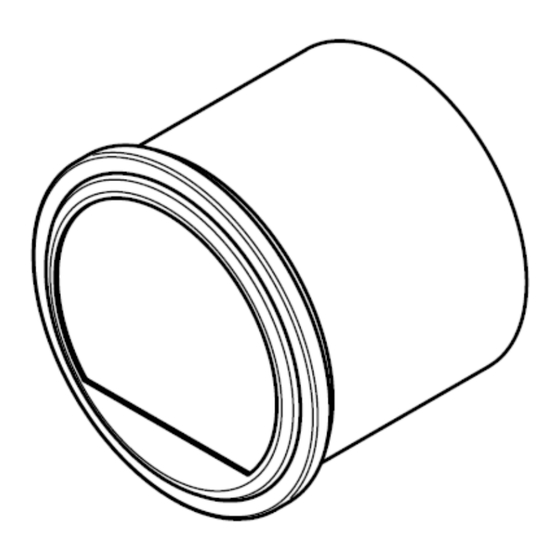

Edge
52mm EGT + Boost
Gauge
52mm
Gauge pod
Gauge Specifications
•
Power-supply voltage:
10v to 15v DC (12v vehicles only)
•
Current consumption:
+B line: MAX 120mA
IGN line: MAX 120mA
ILM line: MAX 2mA
JRP Edge Digital Gauge: EGT & Boost + EGT v1.6
200mm power
link cable
Remote
button
Exhaust
Temp sensor
•
Warning Icon
•
Scale indicator
(Front)
Rubber hose
+ 3-way
1.5m power
cable
Boost pressure
sensor
•
Remote button port
Peak Icon
•
Button
•
Sensor ports
•
Power ports
U-bracket pillar
mount kit
(1/8th NPT)
EGT Fitting
1/4 PT also
available
(1/4 sold Separately)
Stand + double sticky
Felt strip spare
(Back)
