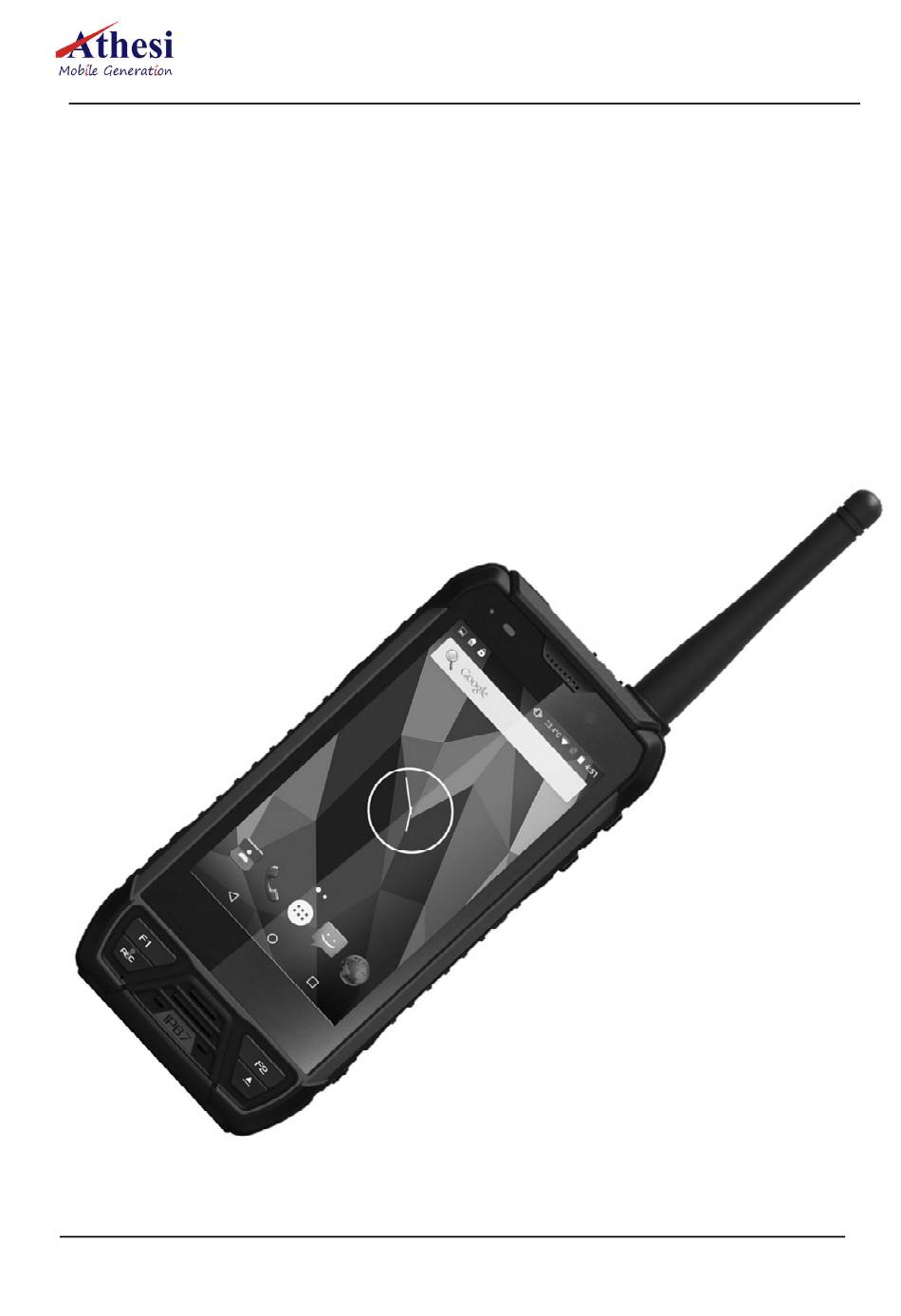

- Page 1 E50AT user guide - rev1 E50AT Mobile Inspection Assistant User Manual This document is the property of Athesi and may not be reproduced or communicated without authorization. Page 1...
- Page 2 Revision Date Modifications Author 16/08/2023 Creation Alexandre Fleureau Object: The purpose of the document is to describe the setting operations of E50AT This document is the property of Athesi and may not be reproduced or communicated without authorization. Page 2...
- Page 3 If inadvertently touching, rinse the affected area with plenty of water and seek for medical assistance. Be sure to use the right charger and follow the instruction of E50AT manual with the correct procedure to charge. Do not expose the laser radiation to the eyes, so as not to hurt the eyes.
- Page 4 8 Upload Key 18 Strap hanger or expansion slot 9 PTT speaker 19 NFC reader 10 Pogo pin 20 Quick release screw This document is the property of Athesi and may not be reproduced or communicated without authorization. Page 4...
- Page 5 Use a cross screwdriver to unscrew the strap hanger, hang the strap, and tighten the screws. The strap contains a flathead screwdriver which is to open the battery cover This document is the property of Athesi and may not be reproduced or communicated without authorization. Page 5...
- Page 6 SIM slot 2 supports 2G, 3G, 4G the cover, and lock it. Network. Please make sure to insert your card in the right slot. This document is the property of Athesi and may not be reproduced or communicated without authorization. Page 6...
- Page 7 Put the cover back and make sure that it is closed. Step 3: Use the flathead screwdriver to tighten the two screws to ensure the waterproof performance. This document is the property of Athesi and may not be reproduced or communicated without authorization. Page 7...
- Page 8 Please insert the device smoothly into the cradle slot from right direction This document is the property of Athesi and may not be reproduced or communicated without authorization. Page 8...
- Page 9 It may also invalidate warranty applying to the device. This document is the property of Athesi and may not be reproduced or communicated without authorization. Page 9...
- Page 10 1- 1- The file storage location for Snapshot at file manager/phone storage/pictures 2- 2- Do not touch the buttons of "SET" or "Cali” This document is the property of Athesi and may not be reproduced or communicated without authorization. Page 10...
- Page 11 Step 1: Touch the App of "WalkieTalkie" Step 2: Touch the "OFF" to turn into "ON" Step 3: Touch the "Channel Switch" This document is the property of Athesi and may not be reproduced or communicated without authorization. Page 11...
- Page 12 Step 6: Touch the "SET" to finish and to go back This document is the property of Athesi and may not be reproduced or communicated without authorization. Page 12...
- Page 13 Step 7: Long press the "TRIGGER" for talking Push-to-Talk Remark: The Push-to-Talk Key on the left side can also be used for talking This document is the property of Athesi and may not be reproduced or communicated without authorization. Page 13...
- Page 14 Step 1: Touch the App of "WalkieTalkie" Step 2: Touch the "OFF" to turn into "ON" Step 3: Touch the "Channel Switch" This document is the property of Athesi and may not be reproduced or communicated without authorization. Page 14...
- Page 15 Select the "Analog" from the "Mode" Select the channel frequency which must be same as the party's device you would like to talk Step 6: Touch the "SET" to finish and to go back This document is the property of Athesi and may not be reproduced or communicated without authorization. Page 15...
- Page 16 E50AT user guide - rev1 Step 7: Touch the "Digital Mode ID Settings" This document is the property of Athesi and may not be reproduced or communicated without authorization. Page 16...
- Page 17 "SET" to finish setting. setting. The party to talk must have key in any 3 digit number key-in 1 digit number This document is the property of Athesi and may not be reproduced or communicated without authorization. Page 17...
- Page 18 Key in the party's number you would like to talk, and long press the "TRIGGER" for talking Push-to-Talk Remark: Key in the party’s The Push-to-Talk Key on the left side number can also be used for talking This document is the property of Athesi and may not be reproduced or communicated without authorization. Page 18...
- Page 19 E50AT user guide - rev1 This document is the property of Athesi and may not be reproduced or communicated without authorization. Page 19...
