MP31 PANEL QUICKSTART

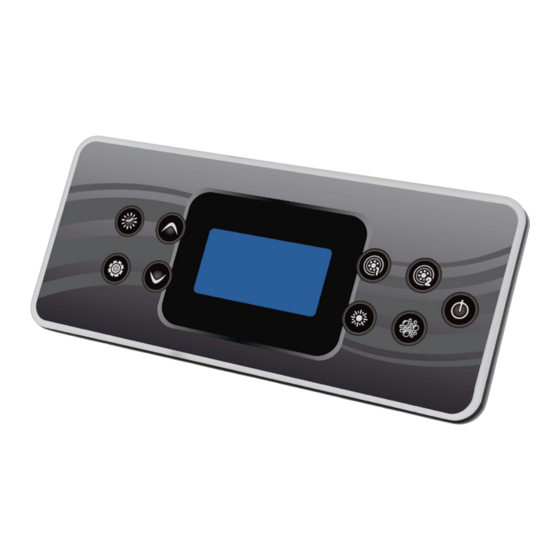

SPA-TECH CONTROL PANEL
MP31 operation instruction:
Below guide is applied to Spa-Tech CA 100 / Spa-Tech CA 300 control panel only.
Up + Down
Time + Blower
Mode + Jet1
KEY
SYMBOL
Power
Jet1
Jet2
Blower
Light
Mode
Time
Up
Down
+
+
+
FUNCTION
Power on / Stand-by ( The screen backlight turn on / off )
Turn on / off pump1
Turn on / off pump2
Turn on / off blower
1. Turn on / off light
2. Press the button repeatedly to change the lighting mode
1. Setting up heating mode ( Standard mode / Economy / Sleep ), temperature unit.
2. Time setting and circulation filtration cycle
1. Time display
2. Exit setting or time display
1. Increase the temperature
2. Select modes ( up )
1. Increase the temperature
2. Select modes ( down )
Panel Locked ( PL ) / Unlock panel
Return to factory settings ( Heating Mode / Setting temperature /
Filtration cycle / Temp units / Time setting )
The pump auto off time setting
01
Advertisement
Related Manuals for Spatech MP31
Summary of Contents for Spatech MP31
- Page 1 MP31 PANEL QUICKSTART SPA-TECH CONTROL PANEL MP31 operation instruction: Below guide is applied to Spa-Tech CA 100 / Spa-Tech CA 300 control panel only. SYMBOL FUNCTION Power Power on / Stand-by ( The screen backlight turn on / off )
- Page 2 MP31 PANEL QUICKSTART Stand-by/Power on 3. If your product has some functional devices that are not included, the corresponding function will Stand by: The SPA will automatically entry stand-by mode when the spa is properly connected with not be available. Please ignore the related buttons on the control panel and the corresponding function power.
- Page 3 MP31 PANEL QUICKSTART 4. Two different period of flitration be conducted separately. If the time setting is the same, the automatically turn to low speed, and it will not stop running until the heater stop. filtration will be operated for just one time.
- Page 4 MP31 PANEL QUICKSTART PROBLEM SHOOTING Protection/fault Fault display Reason Problem shooting methods 1. Plug your control panel into main PCB socket "CON11". Communication Malfunction The connection between the control panel and main PCB loosed. 2. Contact your dealer, replace the PCB or control panel.
