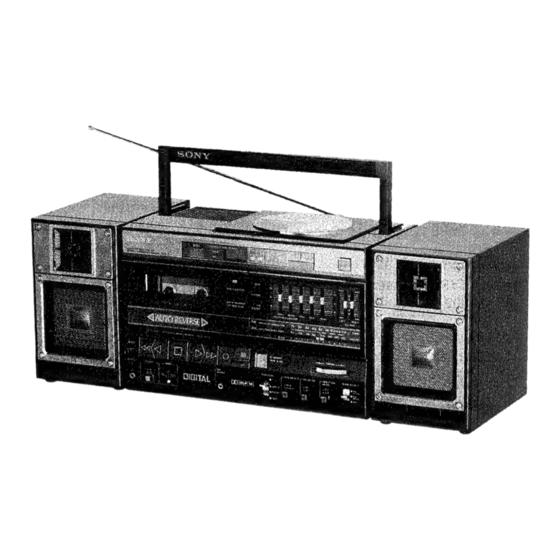

Sony CFD-5 Service Manual

'Dolby' and the double-D symbol! are the. trade marks of
Dolby Laboratories Licensing Corporation. Noise reduction
system manufactured under license from Dolby Laboratories
Licensing Corporation.
US Model
Canadian Model
AEP. Model
UK Model
E Model
4
ee
ec
SPECIFICATIONS
Tape Transport Mechanism Tape | MF-CF.D5-73
CD player section '
Frequency range FM: 87.6-107 MHz
System Compact disc digital audio system
Disc Compact disc
Laser diode properties
Material: GaAlAs
(the model for West Germany)
87.6-108 MHz
(the model for other countries)
AM: 530-1,605 kHz (566-187 m)
Emission duration: Continuous
Laser output: Max..0.4 mW *
*This output is the value measured at a distance of
about 1.6mm from the objective tens surface on the
optical pick-up block.
Spindle speed 200 r.p.m. to 500 r.p.m.(CLV)
Scan velocity 1.2-1.4 misec.
Error correction Sony Super Strategy Cross Interleave
Read Solomon Code
Number of channels
2
D-A conversion 16-bit linear
Frequency response
20-20,000 Hz *} dB
Harmonic distortion
0.008% (1 kHz)
Dynamic range 90 dB (1 kHz)
Channel separation
85 dB (1 kHz)
Wow and flutter Below measurable limit
Disc
Track pitch 1.6 um
Sampling frequency ©
44.1kHz
Quantization 16 bit linear quantizing/channel
Modulation system
AM: Built-in ferrite bar antenna
— Continued on page 2 —
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY SHADING AND MARK
A ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
ALA SECURITE!
LES COMPOSANTS IDENTIFIES PAR UNE TRAME ET
UNE MARQUE /\ SUR LES DIAGRAMMES SCHE-
MATIQUES ET LA LISTE DES PIECES SONT CRITIQUES
POUR LA SECURITE DE FONCTIONNEMENT. NE REM-
PLACER CES COMPOSANTS QUE PAR DES PIECES
SONY DONT LES NUMEROS SONT DONNES DANS CE
MANUEL OU DANS LES SUPPLEMENTS PUBLIES PAR
SONY.
COMPACT DISC /FM /AM
: EFM
Transfer rate 2.03 Mbit/sec. (before modulation)
STE RE 0
CA Ss FITE -C 0 RDE R
MICROFILM
SONY.
