- Page 1 USER MANUAL GUIDE Gait Training System 1. OVERVIEW 2. FEATURES 3. DETAILS 4. MANUAL 5. COMPONENTS 6. PRECAUTION...

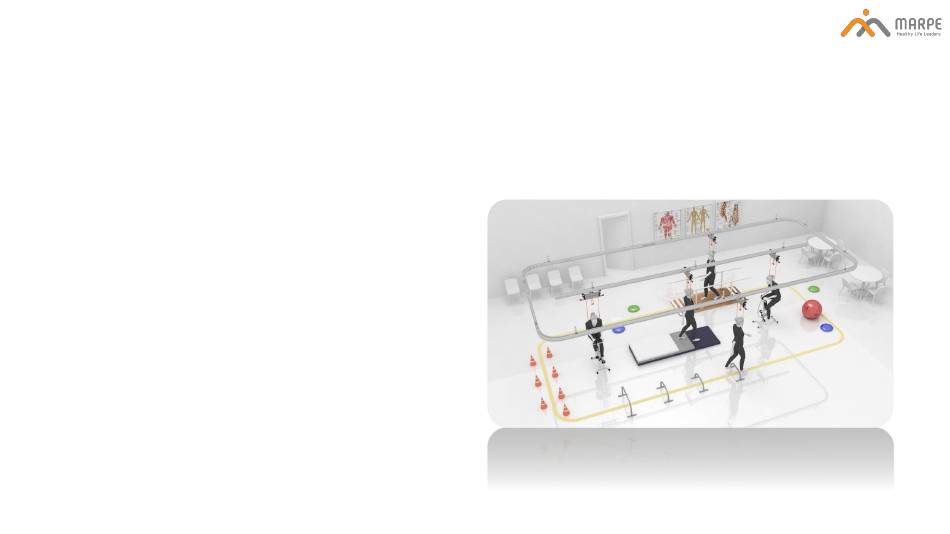

- Page 2 1. OVERVIEW The Gait Training System (GTS) consists of three key components: the walking Rail, M-Sling, and M-Suit, and its main function is to prevent falls during gait training. The GTS is designed to assist elderly individuals and patients with chronic disabilities in performing various daily functional activities effectively in hospitals and rehabilitation centers.
- Page 3 2. FEATURES 1. Unique Training Method: The GTS is specifically designed for patients who are unable to walk independently due to severe impairments, providing essential support during rehabilitation. 2. M-Sling System: The M-Sling can be easily, quickly, and securely fixed to any position along the walking rail, offering flexibility during training.
- Page 4 2. FEATURES 6. Flexible Installation Options: The GTS is available in both Ceiling and Stand type. The stand type is ideal for spaces where ceiling installation is not possible. 7. Standard Size for GTS Stand: The GTS stand has a standard size of 4m (L) x 2.5m (W) x 2.3m (H), making it suitable for use in narrow spaces.
- Page 5 3-1 DETAILS of M-Sling Cleat Roller TOP VIEW Locking BOTTOM VIEW Ring Rope Hook FRONT VIEW BACK VIEW SIDE VIEW Dimensions: 357mm (Width) x 65mm (Depth) x 120mm (Height) Weight: 5kg Maximum Load of M- Sling System: 200kg Main Materials: Aluminum, Steel, Polyester, Polyacetal, Urethane, Rubber...
- Page 6 3-2 DETAILS of Rail FRONT & BACK VIEW BOTTOM VIEW Entire view of Rail TOP VIEW SIDE VIEW Dimensions: 1000mm (Width) x 104mm (Height) x 83mm (Depth) Weight: 5kg per meter Main Material: Aluminum...
- Page 7 3-3 DETAILS of Turn Terminal Point Grip Turning Rope Rail Remote Rail Automatic Turn Terminal Manual Turn Terminal Dimensions: 1000mm (Width) x 110mm (Height) x 700mm (Depth) Weight: 25kg Main Material: Steel...
- Page 8 3-4 DETAILS of M-Suit Shoulder Triangle Strap Hook Rope Waist Pocket Belt Adjustable Waist Buckle Strap Thigh Belt Entire view of M-Suit FRONT VIEW BACK VIEW Main Materials: Neoprene, Air-mesh, Webbing, Plastic, Steel...
- Page 9 4-1 MANUAL of M-Sling How to use M-Sling System 2. Locking Ropes 1. Releasing and Lowering Ropes (c) Fix the Adjusting Ropes to the Cleat so they hang straight down; (a) Stand in front of the device, hold the Adjusting Ropes (middle) in the ropes will automatically lock when a load is placed on them one hand and Main Ropes (connected straps with hook) in other hand 3.
- Page 10 4-2 MANUAL of fixing M-Sling to the Rail 고정이 되어있는 상태 ① ② ③ Unfixed state Fixed state ① When securing the M-Sling to the rail, position the M-Sling horizontally to the rail. ② Hold the red fixing levers on both sides of the M-Sling and lift them all the way to the sides to secure it. ③...
- Page 11 4-3 MANUAL of Turn Terminal System (Manual) ① ② ③ ④ ① Grasp the Rope of the Turn Terminal ② Pull the rope straight down ③ Adjust the Point Grip in desired place ④ Release the rope...
- Page 12 4-4 MANUAL of M-Suit ① ② ③ ① ② Position the waist ③ First, place the suit on the user’s belt below Pull the inner belt tight, shoulders while standing in front of the middle of the waist, ensuring it then firmly adhere the outer them.
- Page 13 4-4 MANUAL of M-Suit ⑥ ④ ⑤ ⑥ Complete wearing the suit by ⑤ Fasten the lower part the ④ Adjust the shoulder strap to fit the user’s pulling front length suit to the middle of the body type. (Slightly raised the Adjustable adjustment strap down tightly.
- Page 14 4-4 MANUAL of M-Suit Wearing the suit correctly...
- Page 15 4-4 MANUAL of M-Suit How to attach the multi-strap to the M-Sling Attach the 30 cm non-elastic assist rope to Hang and hold the multi-strap as the M-Sling main rope, as shown in the figure. shown in the figure.
- Page 16 5. COMPONENTS ① ② ① M-Sling(1ea) : 357mm x 120mm x 65mm ② M-Suit(1ea) ③ Multi Strap(2ea) : 340mm x 290mm ④ Rope 30cm(2ea) : ∅8 x 300mm ⑤ Elastic 130cm(1ea) : ∅7 x 1300mm ⑥ Pulley(1ea) : 155mm x ∅ 48mm ⑦...
- Page 17 If you need to repair a product under warranty, please email a Do not hang or place weight on a single rope of the M- detailed explanation of the problem to harold.marpe@gmail.com Sling system. and simply wait for further instructions.
- Page 18 Marpe. All Rights Reserved.
