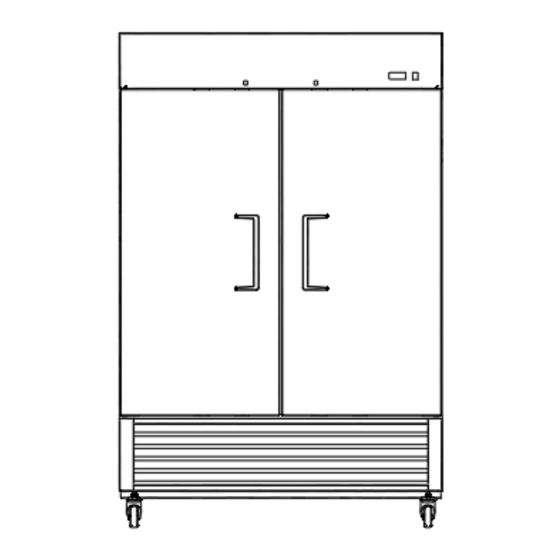

Argus ARST27BR User Manual

Argus ARST27BR User Manual

Reach-in refrigerator & freezer

Advertisement

Quick Links

Reach-In Refrigerator & Freezer
User Manual
REFRIGERATORS: ARST27BR, ARST54BR, ARST81BR
FREEZERS: ARST27BF, ARST54BF, ARST81BF
Please read this manual completely and keep for future use.

Advertisement

loading
Need help?

Need help?

Do you have a question about the ARST27BR and is the answer not in the manual?

Questions and answers

Summary of Contents for Argus ARST27BR

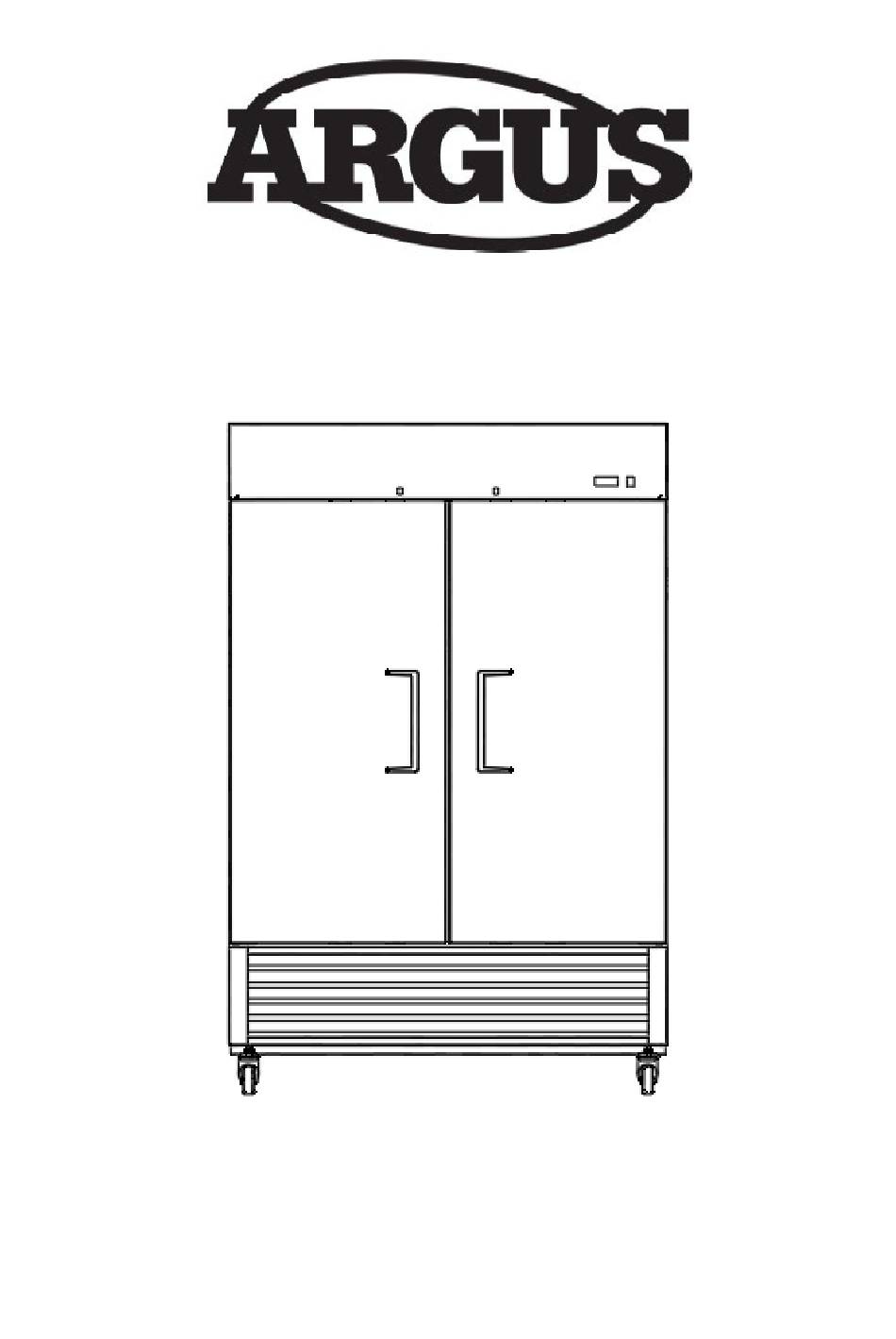

  • Page 1 Reach-In Refrigerator & Freezer User Manual REFRIGERATORS: ARST27BR, ARST54BR, ARST81BR FREEZERS: ARST27BF, ARST54BF, ARST81BF Please read this manual completely and keep for future use.
  • Page 2 Table of contents Safety Tips ....................3 Important Safety Instruction ............... 4 Dimensions ....................5 Technical information.................. 5 Intended Use ....................6 Component information ................6 Location and Installation ................7 Power Requirements ................... 8 Troubleshooting................... 8 Disposal ......................9 Operation ....................
  • Page 3 Safety Tips The appliance is intended for commercial indoor use only.  DO NOT use the appliance outside.  DO NOT attempt to service the item yourself.  DO NOT use damaged appliances. If you are in any doubt, consult a service agent. ...
  • Page 4 Important Safety Instruction DANGER - Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained service personnel. Do not puncture refrigerant tubing. CAUTION - Flammable refrigerant used. Refer to manual before attempting to install or service this product.
  • Page 5 DIMENSIONS MODEL: ARST27BR, ARST27BF MODEL: ARST54BR, ARST54BF MODEL: ARST81BR, ARST81BF...
  • Page 6 80-3/4 x 32 x 83 °F °F Intended Use Only use this appliance for storage of food and beverages for commercial purposes. Indoor use only. COMPONENT INFORMATION MODEL: ARST27BR, ARST27BF MODEL: ARST54BR, ARST54BF ON/OFF SWITCH ON/OFF SWITCH THERMOSTAT THERMOSTAT CONTROL PANEL...
  • Page 7 MODEL: ARST81BR, ARST81BF ON/OFF SWITCH THERMOSTAT CONTROL PANEL DOOR(MID) DOOR(LEFT) DOOR(RIGHT) CASTERS Location and Installation The cabinet should be placed in a room that is dry and sufficiently ventilated. To operate efficiently it should not be positioned in direct sunlight or near warm 60.8 ℉...
  • Page 8 If the appliance is to be shut down for a long period, switch it off and disconnect the plug from  the outlet. Clean the appliance and leave the door open to prevent odor. Important! For your personal safety, this appliance must be properly grounded. This ...
  • Page 9 Troubleshooting If your Refrigerator or Freezer develops a fault, please check the following table. Fault Probable Cause Action The appliance is not working The unit is not switched on Check that the unit is plugged incorrectly and switched on Plug and/or lead are Call our agent or qualified damaged technician...
  • Page 10 Disposal If the appliance is no longer of use and you wish to dispose of it, please do so in an environmentally correct way. There may be special requirements or conditions in your local area. You can obtain information on the disposal of appliances from your dealer or local authority.
  • Page 11 OPERATION Every 6 hours, the unit will turn off and allow the evaporator coil to air defrost. The controller now displays the defrost symbol. When the coil temperature reaches 53°F (12°C) or after 30 minutes of defrost, the unit will turn on again. Anti-condensation heaters on door frames work in conjunction with the compressor.
  • Page 12 OPERATION...
  • Page 13 WIRING DIAGRAMS MODEL: ARST27BR, ARST54BR, ARST81BR MODEL: ARST27BF, ARST54BF...
  • Page 14 MODEL: ARST81BF PARTS LIST MODEL: ARST27BR, ARST27BF Item Part Number Descriptions Qty/Unit XKA-2-004-0002-0 Gasket XKA-2-012-0029-0 Shelf XKA-2-009-0957-0 Shelf clip XKA-2-017-0002-0 Caster XKA-2-017-0001-0 Caster with brake...
  • Page 15 MODEL: ARST54BR, ARST54BF Item Part Number Descriptions Qty/Unit XKA-2-004-0002-0 Gasket XKA-2-012-0030-0 Shelf left XKA-2-012-0031-0 Shelf right XKA-2-009-0957-0 Shelf clip XKA-2-017-0002-0 Caster XKA-2-017-0001-0 Caster with brake MODEL: ARST81BR...
  • Page 16 Item Part Number Descriptions Qty/Unit XKA-2-011-0414-0 Gasket XKA-2-012-0022-0 Shelf left XKA-2-012-0023-0 Shelf right XKA-2-009-0124-0 Shelf mid XKA-2-009-0957-0 Shelf clip XKA-2-017-0002-0 Caster XKA-2-017-0001-0 Caster with brake MODEL:ARST81BF Item Part Number Descriptions Qty/Unit XKA-2-011-0414-0 Gasket XKA-2-012-0102-0 Shelf left XKA-2-012-0103-0 Shelf right XKA-2-009-0101-0 Shelf mid XKA-2-009-0957-0 Shelf clip...
  • Page 17 Environmental Protection Discarded electric appliances are recyclable and should not be discarded in domestic waste! Please actively support us in conserving resources and protecting the environment by returning this appliance to the collection center (if available).
  • Page 18 SIX MONTH WARRANTY Argus warrants to the original purchaser of this unit, the unit cabinet and all parts thereof, to be free from defects in material and workmanship, under normal conditions of use and maintenance, for a period of six (6) months from the date of original purchase.
  • Page 19 Argus’s liability hereunder in any case is expressly limited, at Argus’s election, to repair or replacement of, or crediting the user with, an amount equal to the purchase price of such goods.

This manual is also suitable for:

Arst54brArst81brArst27bfArst54bfArst81bf
