Summary of Contents for Dave Whites SitePro KS Series

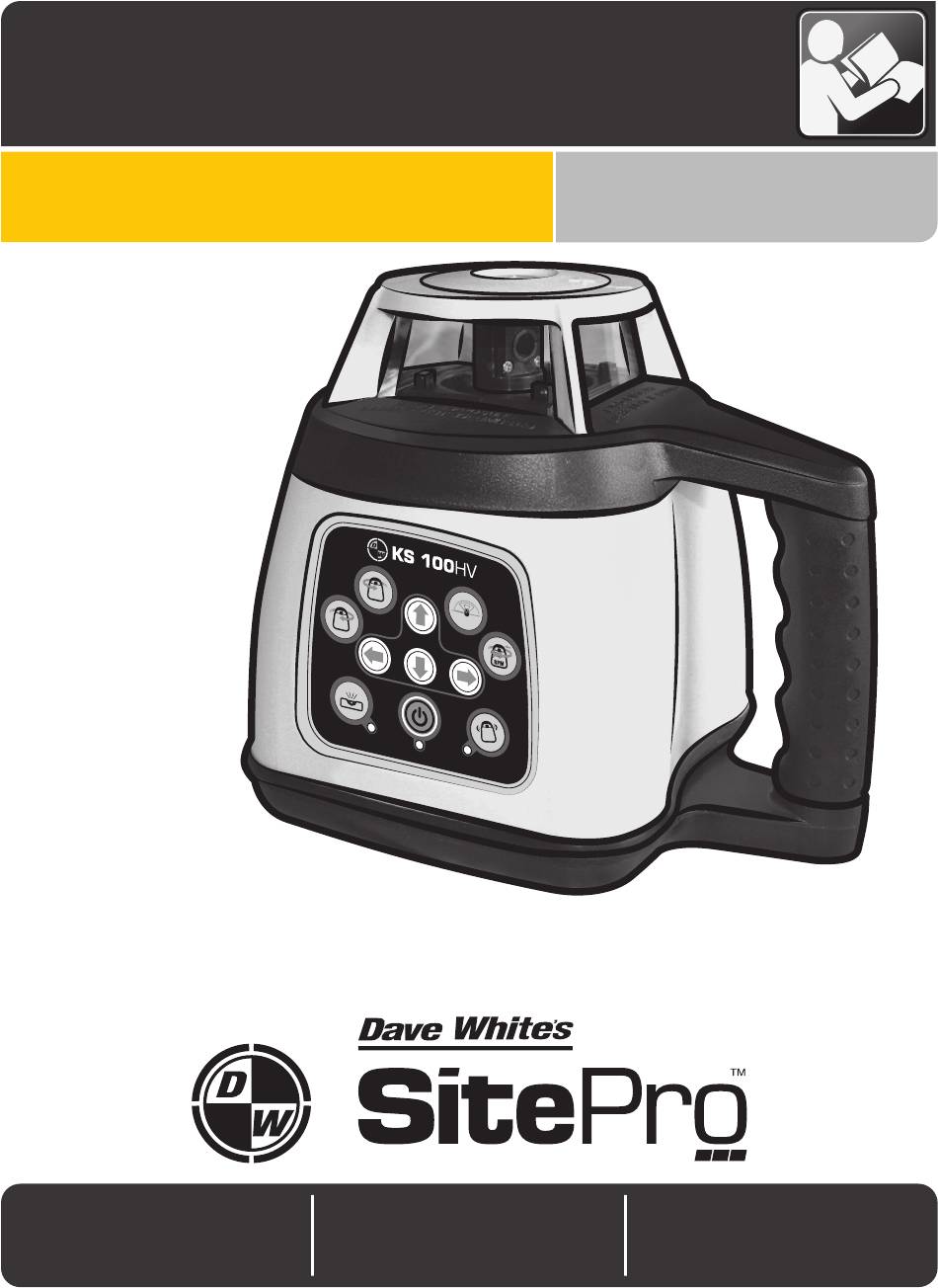

- Page 1 OPERATING MANUAL CONSIGNES DE FONCTIONNEMENT INSTRUCCIONES DE FUNCIONAMIENTO KS SERIES LASER TRANSMITTER MODEL KS 100H KS 100HV KS 100HVG IMPORTANT: IMPORTANT: IMPORTANTE: Read Before Using Lire avant usage Leer antes de usar...
- Page 2 Set Your Sights On Precision and Accuracy with Dave White’s SitePro Thank you for your purchase of our laser instrument. The purpose of this user’s guide is to acquaint you with your instrument, its components, safety, proper care, and handling. Our instruments are constructed to withstand rugged field use.
- Page 3 KS 100HV, KS 100HVG Horizontal /Vertical Rotary Laser Model KS 100HV Shown...
- Page 4 KS 100H Horizontal Rotary Laser...
-
Page 5: Intended Use
KS 100H, KS 100HV, KS 100HVG Rotary Laser Battery Compartment - Bottom of Instrument INTENDED USE The KS 100H instrument is intended for determining and checking precise horizontal lines and level. This instrument is suitable for outdoor use. The KS 100HV/KS 100HVG instruments are intended for determining and checking precise horizontal lines and leveling, checking elevations, concrete forms, footings, foundations, estimating cut &... -
Page 6: Inserting/Replacing Battery
FEATURES The numbering of the product features shown refers to the illustration of the instrument on the graphic page. Control Keypad Counter-Clockwise Beam Positioning Button 1a. Power Button Remote Sensor 1b. Anti-Drift System (ADS) Button Rotating Laser Beacon 1c. ADS Indicator Glass Lighthouse 1d. -
Page 7: Operation
Always replace all batteries at the Battery Check same time. Only use batteries from Flashing connections one brand and with the identical Light Charging capacity. Battery Take up to Install the battery tray onto base. Be Light Charging 8 hrs to fully certain that electrode connectors 10 charge align properly. -
Page 8: Switching On And Off
the instrument reacts sensitively work set points are accurate. Then to ground vibrations and position press the Anti-Drift System (ADS) changes. Therefore, pay attention Button 1b. The ADS Indicator 1c will that the position of the instrument is flash green. ADS will activate. stable in order to avoid operational If instrument is disturbed, the laser interruptions due to re-leveling. - Page 9 up green and automatic self-leveling Adjusting The Slope of X-Axis is deactivated. For dual slope or grade applications, To reactivate self-leveling mode, press the X-axis can be adjusted. Press 1g to adjust x-axis downward or upward. Position the laser beam Slope Mode up or down until the beam slope is set at the desired position.
-
Page 10: Accuracy Check
ACCURACY CHECK The ambient temperature has the greatest influence. Especially temperature differences occurring from the ground upward can divert the laser beam. The deviations play a 100-ft (30 m) role in excess of approx. 65-ft (20m) measuring distance and can easily –... - Page 11 (0.6 m) (30 m) A and B. Place the tripod near Wall A. Ideally, the distance should be 2-ft (0.6m). 100-ft 2-ft (30 m) (0.6 m) Position the instrument in such a manner that the center point of the 2-ft 100-ft (0.6 m) (30 m)
- Page 12 RD 105 / RD 105G DETECTOR The detector aids in locating and targeting a visible or invisible beam emitted by a rotary laser instrument; perfect for use in outdoor conditions, where sunlight and distance may make locating the beam more difficult. The laser detector includes a rod clamp which allows to mount the detector onto square, round or oval sighting rods.
-
Page 13: Maintenance And Service
RD 105 / RD 105G PREPARATIONS Inserting/Replacing the Battery Pull the latch of battery lid outward and open the battery lid. 4 AA alkaline batteries are Remove the battery when not using recommended for the tool. it for extended periods. When storing When the batteries are low, the for extended periods, the battery can battery low indicator will display. -
Page 14: Technical Data
TECHNICAL DATA KS 100H KS 100HV KS 100HVG Leveling Horizontal Horizontal and Vertical Horizontal Accuracy ±1/16-in at 100-ft (1.8mm at 30m) Leveling Type Electronic Self-Leveling (± 5º) Slope/Grade Dual Axis -8 % to +8 % Working Range (dia.) With Detector 1000-ft (305m) 1000-ft (305m) 1000-ft (305m) -
Page 15: Work Area Safety
If glass light house breaks when securely. Damage to the laser tool dropped, contact customer service and/or serious injury to the user could immediately. Broken glass can cause result if the laser tool falls. laceration hazard and unit to lose its ALWAYS use only the accessories IP rating. -
Page 16: Electrical Safety
Electrical safety eye protection. Safety equipment such as dust mask, non-skid safety Batteries can explode or leak, shoes, hard hat, or hearing protection cause injury or fire. To reduce this used for appropriate conditions will risk, always follow all instructions and reduce personal injuries. -
Page 17: Limited Warranty
function of cardiac pacemakers. instructions to operate the tool. Tools are dangerous in the hands of Keep the tool and laser target away untrained users. from magnetic data medium and magnetically-sensitive equipment. Maintain tools. Check for misalignment or binding of moving The effect of the magnets of the tool parts, breakage of parts and any and laser target plate can lead to... - Page 18 OTHER RELATED ITEMS. THESE ITEMS RECEIVE A 90 DAY LIMITED WARRANTY. To make a claim under this Limited Warranty, you must return the complete product, transportation prepaid. For details to make a claim under this Limited Warranty please visit www.dwsitepro.com or call 1-855-354-9881. ANY IMPLIED WARRANTIES SHALL BE LIMITED IN DURATION TO ONE YEAR FROM DATE OF PURCHASE.
