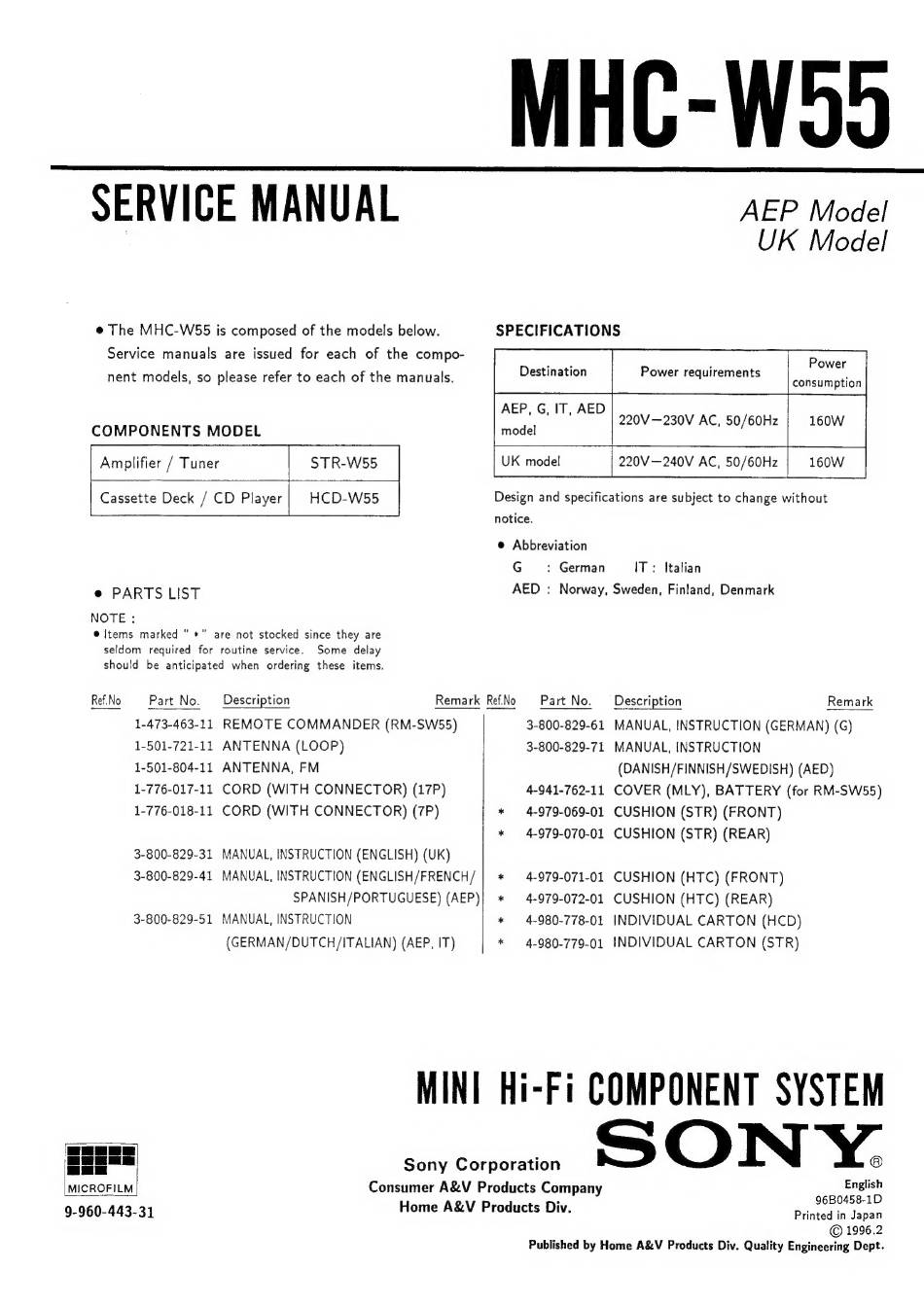

Sony MHC-W55 Service Manual

MHC-Woo
AEP Model
UK Model
SERVICE MANUAL
SPECIFICATIONS
@ The MHC-W55 is composed of the models below.
Service manuals are issued for each of the compo-
nent models, so please refer to each of the manuals. Destination
AEP, G, IT, AED
model
COMPONENTS MODEL
STR-W55 UK model
Amplifier / Tuner
Cassette Deck / CD Player} HCD-W55 Design and specifica
notice.
e@ Abbreviation
G
: German
@ PARTS LIST
NOTE:
@ Items marked " *" are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
Power
Power requirements '
consumption
220V —230V AC, 50/60Hz 160W
220V—240V AC, 50/60Hz 160W
tions are subject to change without
IT: Italian
AED : Norway, Sweden, Finland, Denmark
Ref.No Part No. Description Remark RefNo Part No. — Description Remark
1-473-463-11 REMOTE COMMANDER (RM-SW55) 3-800-829-61 MANUAL, INSTRUCTION (GERMAN) (G)
1-501-721-11 ANTENNA (LOOP) 3-800-829-71 MANUAL, INSTRUCTION
1-501-804-11 ANTENNA, FM (DANISH/FINNISH/SWEDISH) (AED)
1-776-017-11 CORD (WITH CONNECTOR) (17P) 4-941-762-11 COVER (MLY), BATTERY (for RM-SW55)
1-776-018-11 CORD (WITH CONNECTOR) (7P) * 4-979-069-01 CUSHION (STR) (FRONT)
* — 4-979-070-01 CUSHION (STR) (REAR)
3-800-829-31 MANUAL, INSTRUCTION (ENGLISH) (UK)
3-800-829-41 MANUAL, INSTRUCTION (ENGLISH/FRENCH/ | * 4-979-071-01 CUSHION (HTC) (FRONT)
SPANISH/PORTUGUESE) (AEP)} * 4-979-072-01 CUSHION (HTC) (REAR)
3-800-829-51 MANUAL, INSTRUCTION * 4-980-778-01 INDIVIDUAL CARTON (HCD)
(GERMAN /DUTCH/ITALIAN) (AEP, IT) * — 4-980-779-01 INDIVIDUAL CARTON (STR)
a a
MINI Hi-Fi COMPONENT SYSTEM
Poy Sony Corporation Ss O N bf
MICROFILM Consumer A&V Products Company Engin
. 96B0458-1D
9-960-443-31 Home A&V Products Div. Printed in Japan
© 1996.2
Published by Home A&V Products Div. Quality Engineering Dept.
