Cordless Lawnmower

RWLM36-43 INSTRUCTION MANUAL

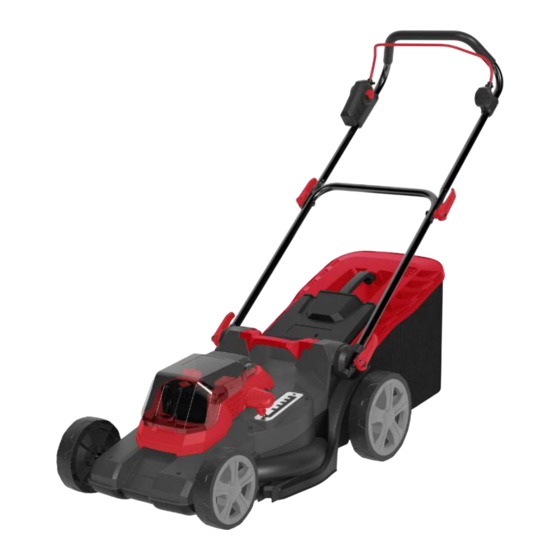

This picture is for reference only.

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE

AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual

may vary in appearance, assembly, inclusions, speciﬁcaions, description, and packaging.

Need help?

Do you have a question about the RWLM36 and is the answer not in the manual?

Questions and answers

Summary of Contents for RW RWLM36

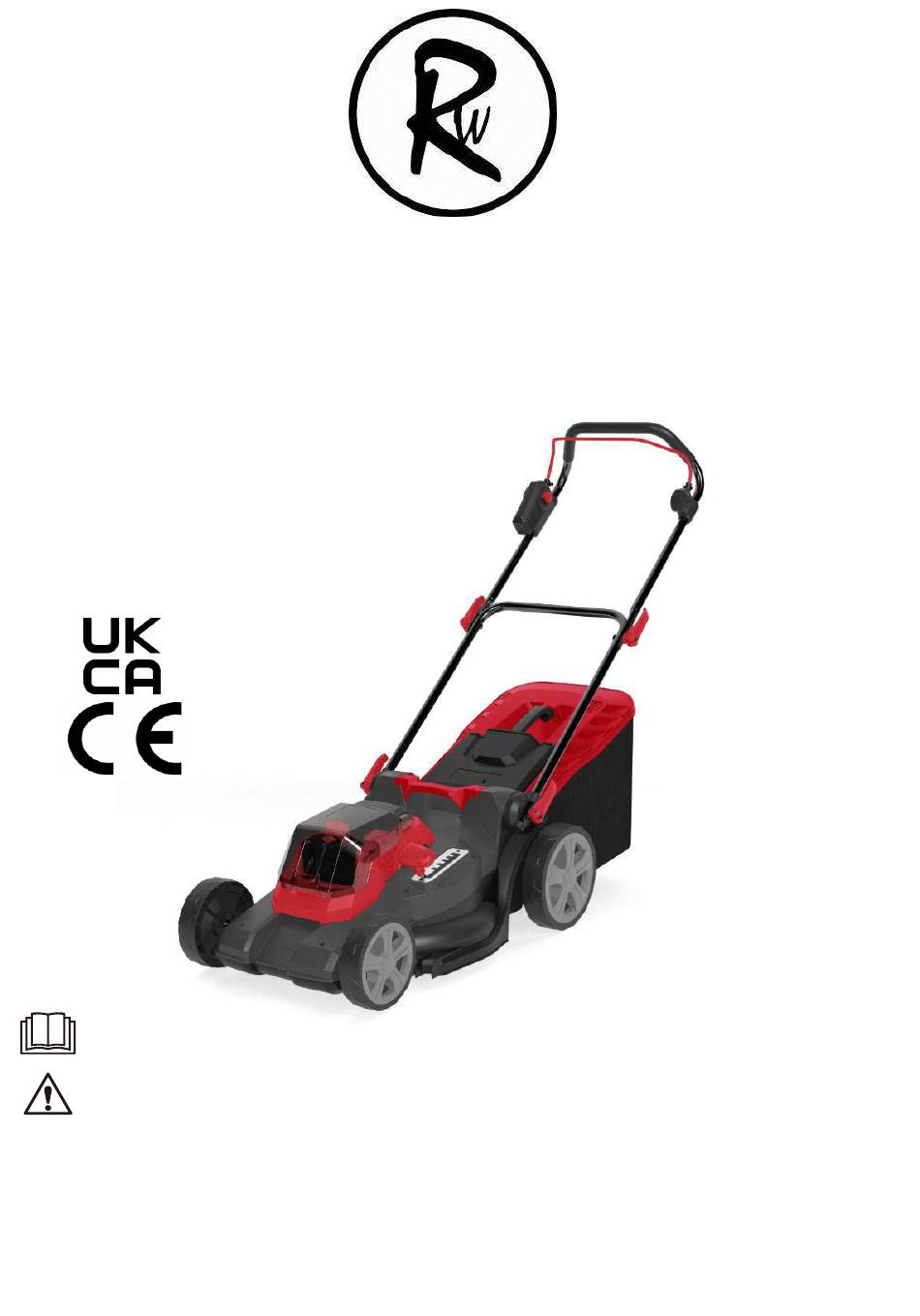

Page 1 Cordless Lawnmower RWLM36-43 INSTRUCTION MANUAL This picture is for reference only. READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual...
Page 2 Fig.1 Fig.2 Fig.3...
Page 3 Fig.5 Fig.4 Fig.6 Fig.7 Fig.9 Fig.8...
Page 4 Fig.11 Fig.10 Fig.13 Fig.12 Intended Use The lawnmower is suitable for domestic use. Use the machine only for its intended purpose. Other than that, it is not intended to be used for any other purpose. The manufacturer is not responsible for any damage or injury caused by the user/operator. Please note that our devices were not designed for commercial, manual or industrial use.
Page 5 Symbols The following symbols and signal words are used in this user manual, on the lawn mower or on the packaging. Meaning of symbols used on the product: 1. Sound power level. 2. WARNING - Beware of throwing objects-keep bystanders away. 3.
Page 6 b) Do not operate mower in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating the lawnmower. Distractions can cause you to lose control. 2) Electrical safety a) Lawnmower plugs must match the outlet.
Page 7 e) Maintain lawnmowers and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the lawnmowers operation. If damaged, have the mower repaired before use. Many accidents are caused by poorly maintained lawnmowers. f) Keep cutting tools sharp and clean.
Page 8 f) Keep guards in place. Guards must be in working order and be properly mounted. A guard that is loose, damaged, or is not functioning correctly may result in personal injury. g) Keep all cooling air inlets clear of debris. Blocked air inlets and debris may result in overheating or risk of fire. h) While operating the lawnmower, always wear non-slip and protective footwear.
Page 9 Lower handle Mulching plug Battery lid Battery pack Wheel Battery clip Height adjustment level Charger Technical Data Model number: RWLM36-43 Power supply: 2*20V d.c. No load speed: 3000/min Cutting width: 430mm Cutting height adjustment: 25/35/42/50/60/70mm; 6 positions Catch basket volume:...
Page 10 Assembly FITTING THE HANDLE BAR(Fig.2&3) 1. Attach the upper handle (1) to the lower handle (6) together, and fix them with the upper handle fastening bolt (5) and the quick release fastener (4). 2. There are three possible height positions. Chose the most suitable position to the operator's height, then fix each lower handle (6) with the quick release fastener (4) into position.
Page 11 50 mm 60 mm 70 mm NOTE: For the first cut of the season,the highest cutting position should be selected. For rough or uneven lawns, move the height adjustment lever to higher position to avoid scalping. The lowest cutting height is only suitable fort rimming a very level, short lawn. High and medium positions are recommended for normal use.
Page 12 BATTERY CAPACITY INDICATOR Press the switch for the battery capacity indicator (19). The battery capacity indicator (20) shows the charge status of the battery using 3 LEDs.(Fig.12) All 3 LEDs are lit: The battery is fully charged. 2 LED(s) are lit: The battery has an adequate remaining charge.
Page 13 NOTE: wear strong gloves when working with or around the cutting blade. 2.Switch and safety lock-off button are maintenance free and should not be accessed by anyone other than an approved maintenance engineer. CUTTING BLADE 1. The cutting blade has sharp edges, always wear strong gloves to protect your hands when working with or around the cutting blade. 2.
Page 14 RECYCLING This symbol indicates that this product must not be disposed of as household waste according to the Waste Electrical and Electronic Equipment Directive (2012/19/EU) and national laws. Improper handling of waste equipment can have negative effects on the environment and human health due to potentially hazardous substances often contained in waste electrical and electronic equipment.
Page 15 2014/30/EU The Electromagnetic Compatibility Directive 2011/65/EU And (EU)2015/863 Restriction of Hazardous Substances Directive Hereby declare that: 2in1 Cordless lawnmower Model number RWLM36-43 is in conformity with the applicable requirement of the following documents Ref. No. EN 62841-1:2015+A11:2022 EN IEC 62841-4-3:2021+A11:2021...
Page 16 RocwooD Warranty All machines supplied by RocwooD are warranted to be free from defects in material and workmanship from the date of sale to the original purchaser for a period of 12 months. This warranty covers 12 months domestic use, business or continuous use will invalidate this warranty.

This manual is also suitable for:

Rwlm43
