Summary of Contents for activeshop AZZURRO 016C

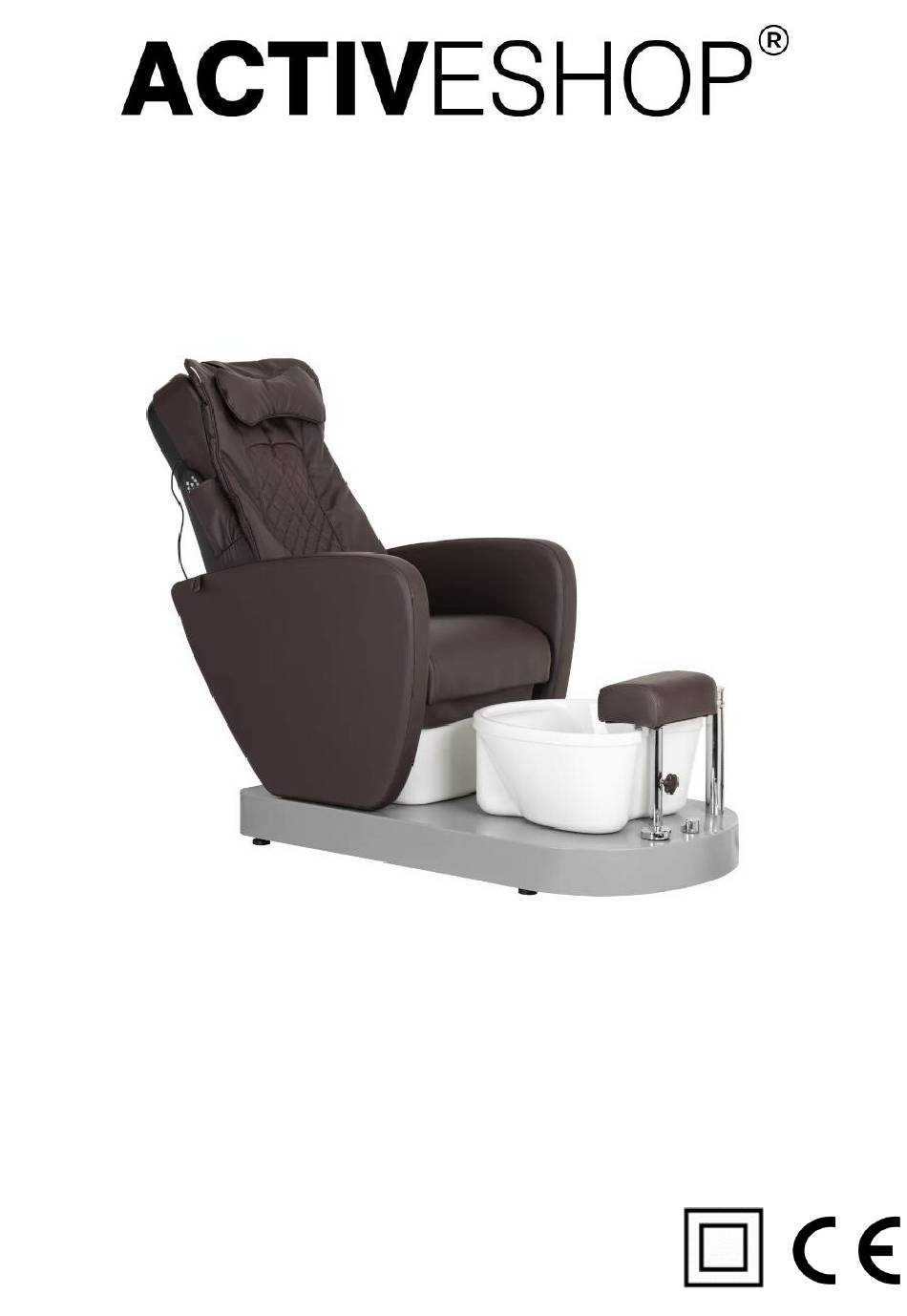

- Page 1 Instructions for use PEDICURE SPA CHAIR AZZURRO 016C Importer: ACTIVESHOP Ltd. 8b Graniczna St., building DC2A 54-610 Wroclaw, Poland www.activeshop.com.pl Rev. A/11/2024...
- Page 2 It is very solidly constructed, and its upholstery is made of ecological leather. The seat and armrests are extremely comfortable, bringing satisfaction from the first moment of sitting. Technical data: Azzurro 016A Azzurro 016B Azzurro 016C Net weight 83 kg 83 kg 85 kg Dimensions...
- Page 3 Accessories: Part of Photo Quantity Seat cushion Manicure cushion Armrest Assembly: Insert the backrest mount into the left backrest axis, see Fig. ①, similarly do it with the right side, see. fig.②, secure and lock the backrest mount with the hexagonal flat screw, see fig.③. Backrest and seat installation: see figure ④, align the seat mounting hole with the backrest mounting hole, insert the clamp to complete the installation.
- Page 4 It is forbidden to put hands, feet, head or any other part of the body into the gap of the While the chair is in motion. It is forbidden to use when plugs, buttons and other components connected to the power cord are broken. Pilot Azzurro 016C: 1. POWER: Turn massage on/off.
- Page 5 Wiring diagram: Power cord Hot and cold water supply hose Drain connection Drain hose diameter 100 mm Hydromassage function (for 016A and 016C only)： The two water supply hoses at the back of the base are connected to cold and hot water respectively. Turn off the tap and adjust the water temperature to fill the shower tray with water, do not overfill it.
- Page 6 Wiring diagram: Water drain adjustment Hydromassage Control box hydromassage Hot water Whirlpool hose switch Outflow Battery Drain hose Cold water hose Spare hydromassag e switch...
- Page 7 4. Immediately remove the plug from the socket and contact the authorized service provided by ACTIVESHOP SP. Z O.O. in the following cases: a) liquid has entered the device, b) the device emits a strange odor, smoke or makes strange sounds, (c) the power cord was damaged, (d) the device was knocked over or its housing was damaged.
