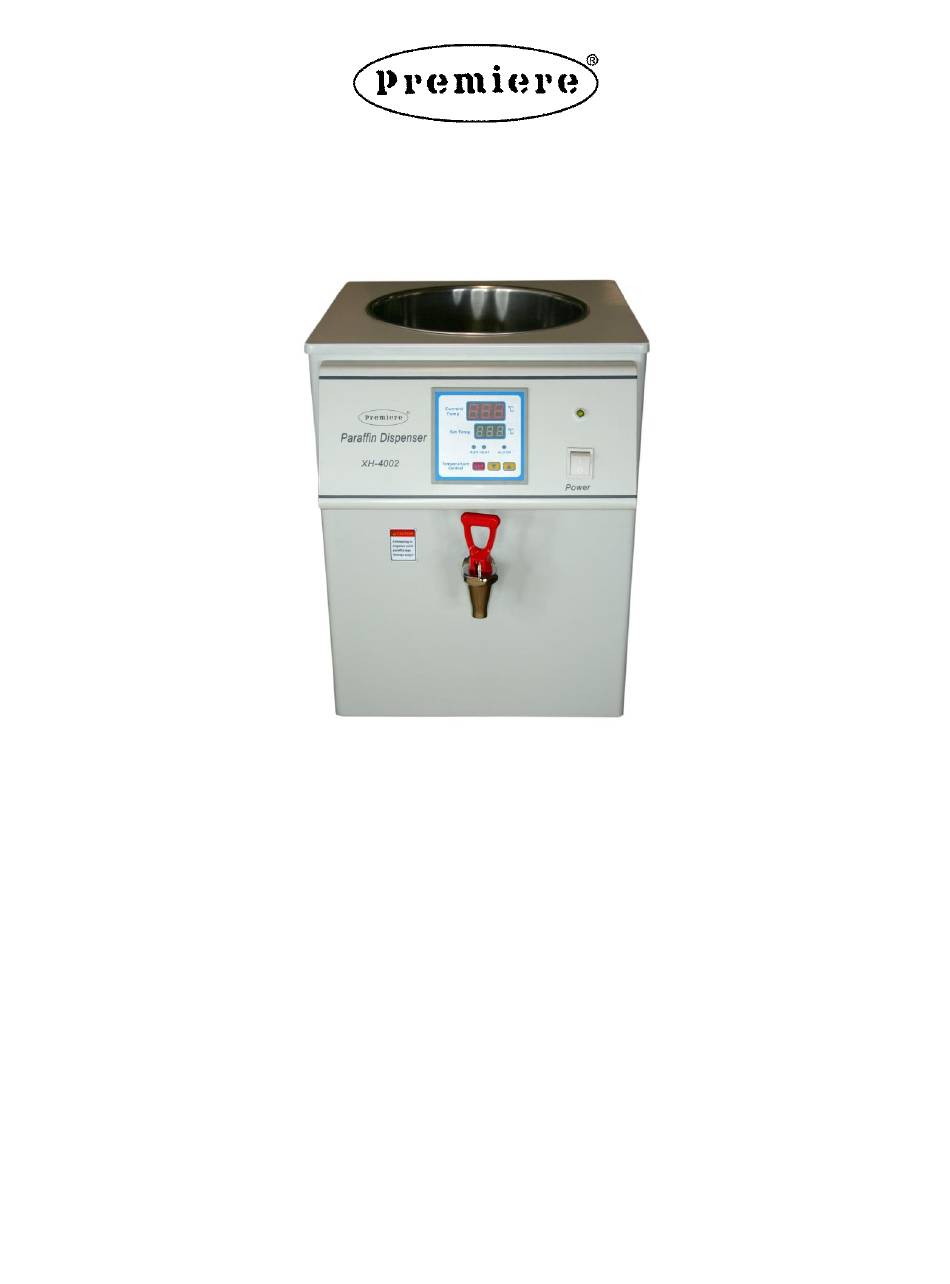

2.5 Gallon Paraffin Dispenser
Model XH-4002
Operating Manual
Before using this product, please read this manual carefully to learn about the available features
to obtain the best results of this equipment.
Warning: To prevent fire or shock hazard, do not expose this unit to rain or moisture. Unless
labeled otherwise, this equipment should be used with AC 110V, 60Hz in the USA or Canada.
220V, 50Hz available as Model No. XH-4002-220
Caution: No user-serviceable parts inside. Refer servicing to qualified service personnel
Advertisement
Summary of Contents for premiere XH-4002
- Page 1 Warning: To prevent fire or shock hazard, do not expose this unit to rain or moisture. Unless labeled otherwise, this equipment should be used with AC 110V, 60Hz in the USA or Canada. 220V, 50Hz available as Model No. XH-4002-220 Caution: No user-serviceable parts inside. Refer servicing to qualified service personnel...
- Page 2 Table of Contents Section • Table of contents Page 1 • Safety Page 2 • Contents /Accessories Page 3 • Specifications Page 4 • Notes of Operation/Setup Page 5 • Control Panel/Spigot Temperature Dial Page 6 • Operation Page 7 •...
- Page 3 2.1 Safety Before using the paraffin dispenser, please read this instruction manual carefully. Incorrect or inappropriate use may result in equipment damage or personal injury! This paraffin dispenser is designed for melting paraffin and dispensing the paraffin. The sole purpose of this Paraffin Dispenser is for histology use along with research, instruction, and experiments in universities and technical secondary schools.
- Page 4 3.1 Contents Number Name Note Paraffin Dispenser 1 set Includes portal for 1 pc thermometer AC Power Cord 1 pc Replacement part for inside of Rubber Stopper 1 pc spigot Plastic Drip Tray 2 pc Operating manual 1 pc Upon receipt, please examine the package, if there's anything wrong, please kindly contact your dealer promptly.
- Page 5 4.1 Specifications Function/ Parameter Technical Data • Clean, dry and ventilated • Stable work surface Environment of use • Relative humidity:≤80% • +5°C~40°C Ambient Temperature • 1060W Power • AC110V 60Hz Applicable Voltage • Room Temperature up to 100°C Heating Range •...
- Page 6 5.1 Notes of operation • Prior to use fill the Paraffin Dispenser with solid paraffin at least halfway full. • Be careful with faucet as it will be hot due to absorbing of heat • Always unplug paraffin dispenser before cleaning or moving it. •...
- Page 7 6.1 Control Panel Control Panel Current Temp ： Actual Temperature Set Temp ： Desired Temperature/Time display in minutes Run: Unit is working Heat: Unit is heating Alarm: Malfunction/overheat SET: Set Time/temperature ▲ ▼：increase/decrease speed /time 6.2 Spigot Temperature Dial The spigot's heating element is controlled by a dial located on the back of the unit. This dial allows for temperature adjustment from 1 to 10, with each increment representing a 10°C increase.
- Page 8 7.1 Operation Temperature Adjustment 1. Turn on power switch. Push the “SET” button once (unit will read “SP”). Use the “▲” or “▼” to increase or decrease the Temperature setting. Once unit is set to desired temperature, push the “SET” button twice until unit reads in Degrees. The 3 digit number beside the word “CURRENT TEMP.”...
- Page 9 Warranty The manufacturer warrants this instrument to be free from defects in materials and workmanship under normal use for a period of one year from the date of purchase (including electrical components). This warranty does not cover damage resulting from misuse, abuse, unauthorized repairs or modifications, or damage incurred during transit.
