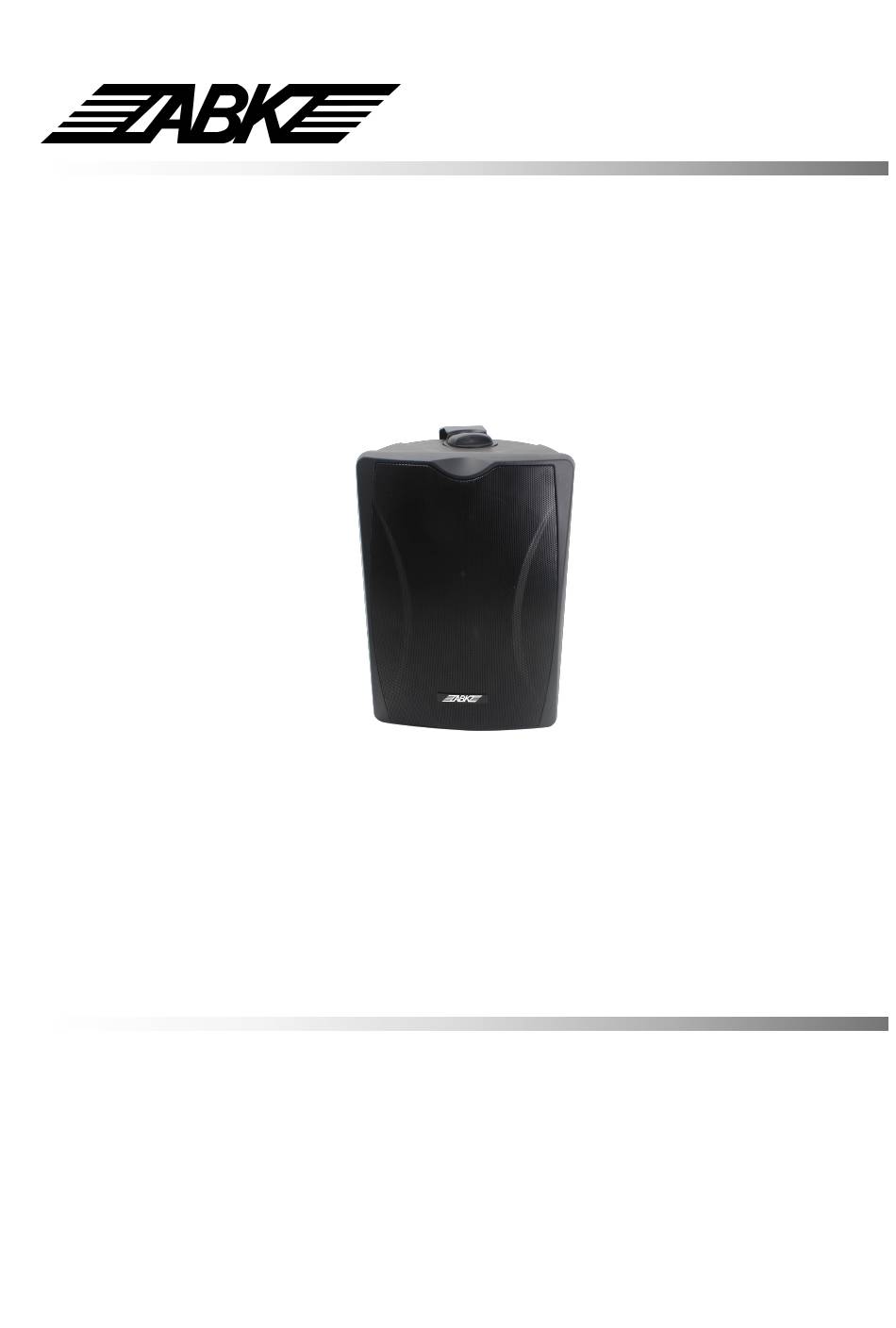

- Page 1 Public Address System IP Wall Mount Speaker WL304N WL306N WL308N User Manual (For black and white speakers) Thank you for using our products. Please read this User Manual carefully to make better use of this equipment.
- Page 2 This page is left blank for memo.
- Page 3 About the Manual This User Manual is available and effective upon completion of development of the IP Wall Mount Speaker. The User Manual includes system introduction, matters needing attentions in use, instructions on system connection, instructions on use of product and technical specifications of the IP Wall Mount Speaker.
- Page 4 Caution To assure the finest performance, please use or operate the product in accordance with corresponding instructions. This symbol indicates "forbidden content" This symbol indicates "compulsory content" ■ Please make sure that the ■ When the equipment is in use, DO NOT block the air power wire is NOT damaged.
- Page 5 IP Wall Mount Speaker CONTENTS I. Features..................................1 II. Functions.................................. 1 2.1 Front Panel................................1 2.2 Rear Panel................................2 III. Connection Diagram............................... 3 3.1 Typical Application..............................3 IV. Installation................................4 Technical Parameters..............................6 Specifications................................8 Packing List...................................8...
- Page 6 IP Wall Mount Speaker I. Features A network speaker integrating network terminal processor and high-fidelity speaker. Based on TCP/IP protocol, support LAN and WAN. With 1-channel network signal input, 1 AUX IN and 1 AUX OUT. Can work independently from network and host, and input signals from the auxiliary audio input port alone. ...
- Page 7 IP Wall Mount Speaker 3. Tweeter 4. Phase Inversion Hole 5. Woofer 2.2 Rear Panel Take WL306N for an example. 1. Left Channel Amplifier Output 2. LAN Port 3. Line OUT 4. Line IN 5. Power IN 6. Power Switch...
- Page 8 IP Wall Mount Speaker III. Connection Diagram 3.1 Typical Application Note: The connection for the rear panel of WL304N, WL306N and WL308N are the same. Take WL306N for an example. * It is required to use the 6.3MM-RCA connector for connection.
- Page 9 IP Wall Mount Speaker IV. Installation This bracket supports two installation methods: vertical and horizontal. Please choose the one that best meets your needs.
- Page 10 IP Wall Mount Speaker According to the bracket mounting holes distance diagram, select an appropriate position to install two nails of 4mm diameter on the wall where the speaker is to be installed, leaving the gap between the nail cap and the wall of 4-6mm.
- Page 11 IP Wall Mount Speaker Technical Parameters...
- Page 12 IP Wall Mount Speaker...
- Page 13 IP Wall Mount Speaker Specifications Items Specifications WL304N WL306N WL308N Unit Driver 4＂×1, 1＂×1 5＂×1, 1＂×1 6.5＂×1, 1＂×1 Sensitivity (1m, 1W) 90±2dB 90±2dB 91±2dB Acoustic System MAX. SPL. (1m) 103±2dB 105±2dB 106±2dB Frequency Response 95Hz-20KHz 80Hz-20KHz 65Hz-20KHz Rated Power (RMS) 2×20W/8Ω...
