SENSOR COMMISSIONING INSTRUCTIONS
PRODUCT RANGE: XCITE LED MINIFLOOD COMPLETE WITH INTEGRAL MICROWAVE
SENSOR AND REMOTE CONTROL
Sensor detection range:
The detection angle of the xcite MINIFLOOD with integral microwave sensor option is 160° with a
detection range of up to 8m, the detection range can be reduced using the sensitivity adjustment on
the remote control; the default setting is 100%.

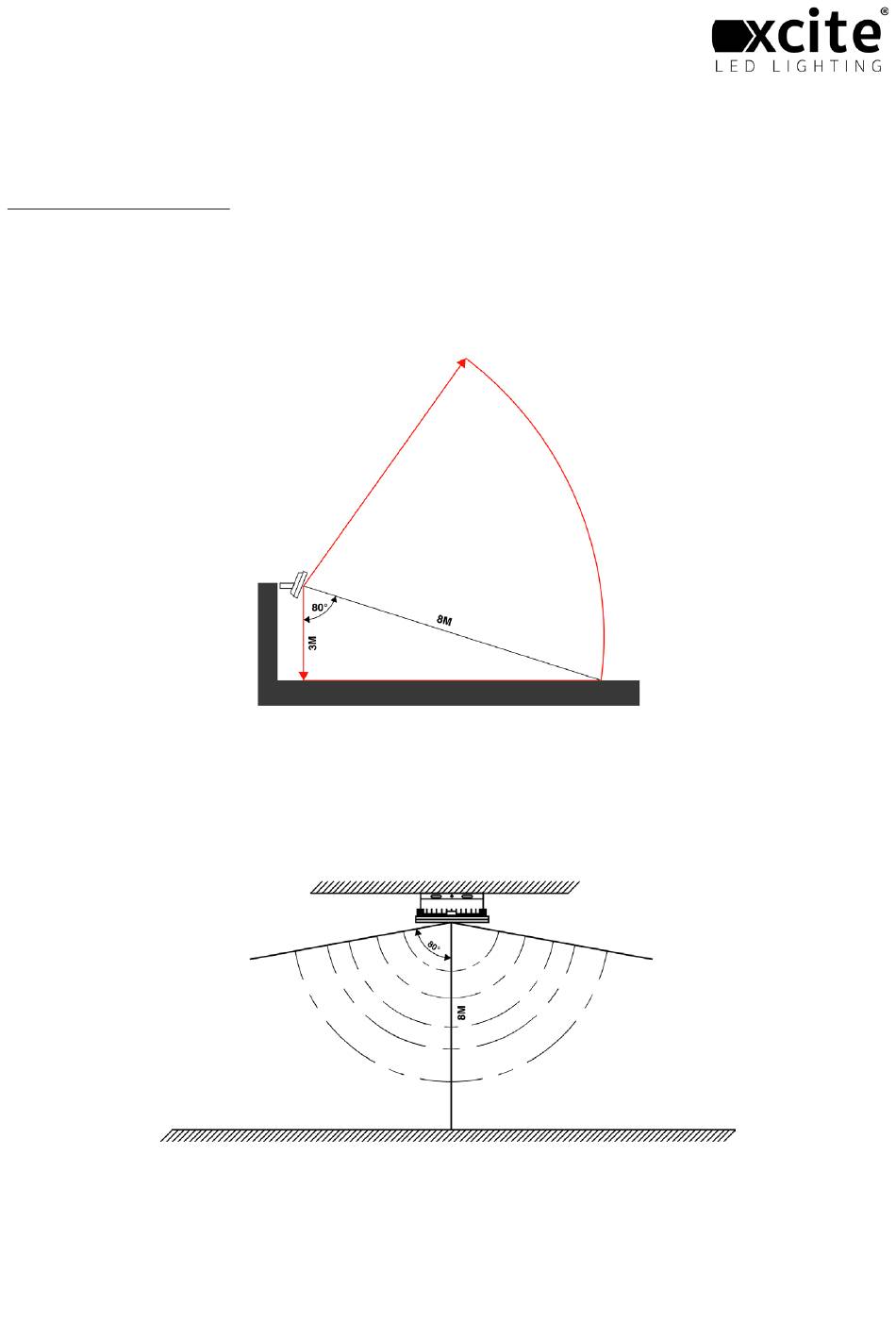

Fig. 1 - Detection pattern integral microwave sensor of Xcite MINIFLOOD
Page 1 of 2
Advertisement
Summary of Contents for XCITE MINIFLOOD
- Page 1 SENSOR AND REMOTE CONTROL Sensor detection range: The detection angle of the xcite MINIFLOOD with integral microwave sensor option is 160° with a detection range of up to 8m, the detection range can be reduced using the sensitivity adjustment on the remote control;...
- Page 2 MICROWAVE COMMISSIONING INSTRUCTIONS To set the below settings, aim the remote at the floodlight and press the desired option (note the floodlight will flash to indicate the setting has been registered). Default Settings o Sensitivity: 100% o Duration Time: 10 Seconds o Mode: Daylight Sensitivity 100%: 7-8m...
