ZEF005953402
PROFIBUS-DP
EZA-MAPRB-01G
Specifications & Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ezABSO EZA-MAPRB-01G and is the answer not in the manual?

Questions and answers

Related Manuals for NSD ezABSO EZA-MAPRB-01G

Summary of Contents for NSD ezABSO EZA-MAPRB-01G

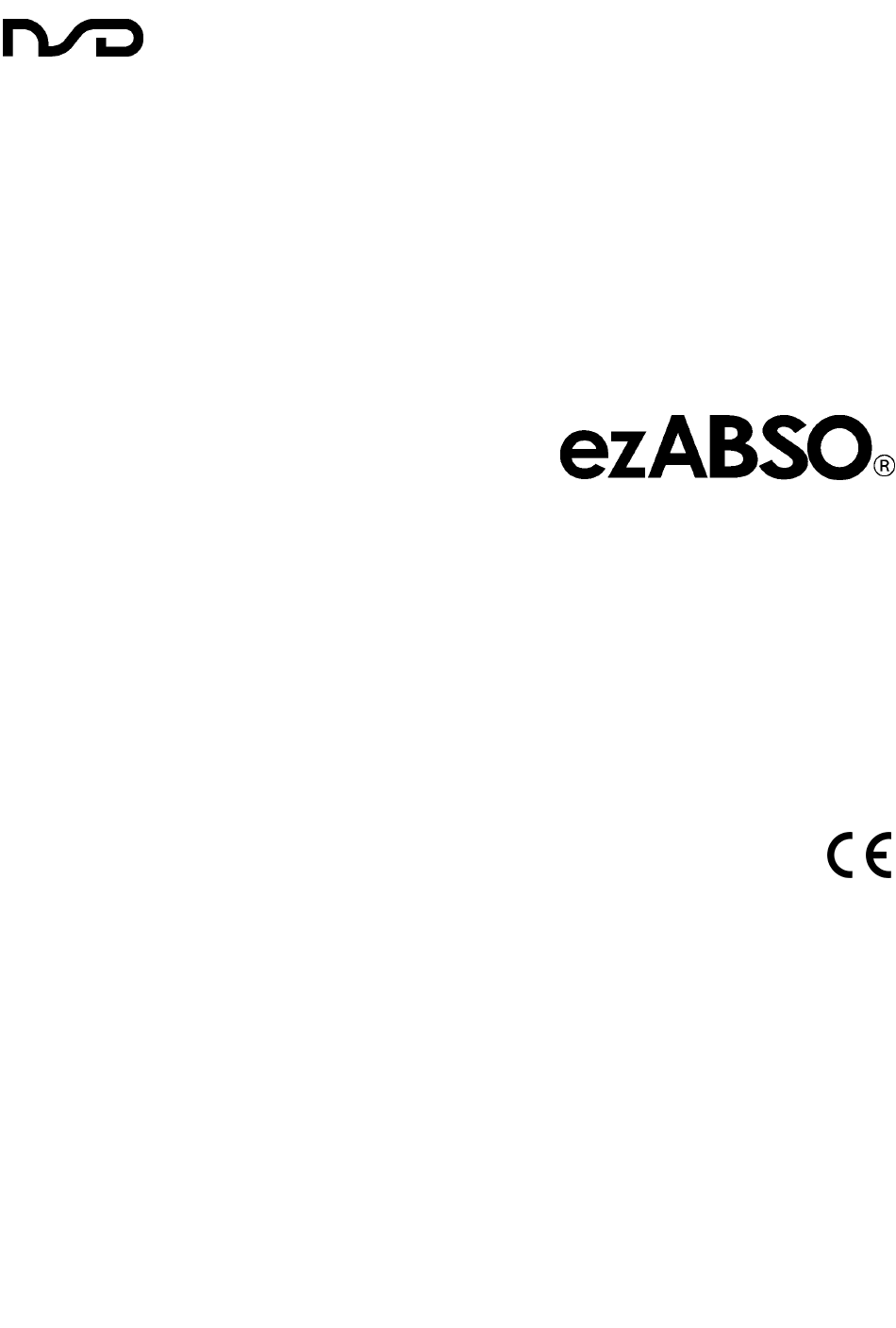

  • Page 1 ZEF005953402 PROFIBUS-DP EZA-MAPRB-01G Specifications & Instruction Manual...

  • Page 3: Table Of Contents

    CONTENTS INTRODUCTION .......................... i GENERAL SAFETY RULES ....................... ii REVISION HISTORY ........................iii 1. OVERVIEW ..........................1 1-1. Features ................................1 1-2. Internal Block Diagram ............................2 2. MODEL SELECTION WHEN ORDERING ................3 2-1. Connection Configuration ..........................3 2-2. Model List ................................3 3.
  • Page 4 8. PROFIBUS-DP Communication ..................18 8-1. Module ................................18 8-2. Input Data (Slave → Master) .......................... 19 8-2-1. Input Data list ............................19 8-3. Output Data (Master → Slave) ........................21 8-3-1. Output Data list ............................21 8-3-2. Preset timing ............................. 22 8-4.

  • Page 5: Introduction

    INTRODUCTION Thank you very much for purchasing our product. Before operating this product, be sure to carefully read this manual so that you may fully understand the product, safety instructions and precautions. - Please submit this manual to the operators actually involved in operation. - Please keep this manual in a handy place.

  • Page 6: General Safety Rules

    NSD. range, and do not exposed to direct sunlight. - Be sure to consult with NSD when ezABSO is stored for long This product is designed to be used under the industrial environments periods.

  • Page 7: Revision History

    REVISION HISTORY The Document No. appears at the upper right of this manual's cover page. Document No. Date Revision Description ZEF005953400 5, Feb., 2021 1st Edition Japanese document: ZEF005953200 ZEF005953401 10, Mar., 2023 2nd Edition Japanese document: ZEF005953201 ZEF005953402 26, July, 2023 3rd Edition Japanese document: ZEF005953202...

  • Page 8: Overview

    1. OVERVIEW EZA-MAPRB-01G (hereinafter referred to as EZA-MAPRB) is a multi-turn type rotary encoder which adopts the electromagnetic induction method. A converter is incorporated in the sensor, and the machine positions can be detected by only a sensor unit. The open field network "PROFIBUS-DP" is used for communicating with the host controller. ●A difference between existing models and EZA-MAPRB-01G The cable gland shape is different between the following existing models and EZA-MAPRB-01G.

  • Page 9: Internal Block Diagram

    1-2. Internal Block Diagram EZA-MAPRB Power circuit 12/24VDC (Isolated) PROFIBUS-DP Power circuit circuit (Non-isolated) (Isolated) Terminator PROFIBUS-DP (ON/OFF switch) Internal circuit ezSCOPE ezSCOPE circuit (Isolated) Computer or tablet...

  • Page 10: Model Selection When Ordering

    2. MODEL SELECTION WHEN ORDERING The following figure indicates the connection configuration of EZA-MAPRB. Before ordering, refer to the connection configuration and model list. Please prepare by customer except (1) and (3) in the connection configuration. 2-1. Connection Configuration Master Termination PROFIBUS-DP PROFIBUS-DP...

  • Page 11: Specifications

    3. SPECIFICATIONS 3-1. EZA-MAPRB Specifications 3-1-1. General specification Items Specifications Power supply voltage 10.8 to 28.8 DCV (including ripple) 240mA or less (at 12DCV) Current consumption 120mA or less (at 24DCV) 10 M-Ohms or more between DC power terminals and case Insulation resistance (by 500 VDC insulation resistance tester) Withstand voltage...

  • Page 12: Function Specification

    3-1-3. Function specification Items Specifications Total number of turns 8,778 Max. 2,301,100,032 divisions (8,778 turns x 262,144 per turn) *1 Total number of divisions Factory setting: 575,275,008 divisions (8,778 turns x 65,536 per turn) Output code Binary code 0.4ms Internal updating cycle (Position data, Speed data) Power supply voltage alarm, Internal temperature alarm, Error detection...

  • Page 13: Terminal Block For Internal Wiring Specification

    3-1-5. Terminal block for internal wiring specification Items Specifications Remarks SPTA 1/12-3,5 Terminal block model － (Manufactured by PHOENIX CONTACT GmbH & Co. KG) Pin spacing 3.5mm － Pin spacing － Solid － 0.2mm to 1.5mm wire － Wire size Flexible 0.2mm to 1mm...

  • Page 14: Dimensions

    4. DIMENSIONS Units: mm 5. CHECKING THE CONTENTS OF THE SHIPPING CASE Open the packing case, and verify that all items are present. Packing list ➀(EZA-MAPRB-01G) is shipped with ② (sealing plug) and ③(cable gland) which are mounted on it. ①...

  • Page 15: Installation

    6. INSTALLATION 6-1. EZA-MAPRB Installation Condition and Precaution The installation conditions and precautions for EZA-MAPRB are described in this section. ● Handling of EZA-MAPRB Item Explanation Precaution (1) Main unit Do not loose a screw or nut except the rear lid. Do not disassemble or remodel EZA-MAPRB.
  • Page 16 ● Mounting of EZA-MAPRB Item Explanation Precaution (1) Mounting Install EZA-MAPRB by referring to “4. DIMENTIONS”. － (2) Cable port Cable port should face downward. Cable port should face － downward. Use a cable clamp, etc., to secure the cable. (3) Cable Use a flexible cable if a cable moves.
  • Page 17 ● Mounting of EZA-MAPRB Item Explanation Precaution (1) Coupling of Be sure to use a coupling device to link the 2 shafts. A “direct-link” installation machine shaft and will result in shaft fatigue Coupling EZA-MAPRB and / or breakage after Direct link Direct link device...
  • Page 18 ●Coupling for EZA-MAPRB Item Explanation Precaution 1. Selection of the coupling device should be based on the following (1) Coupling device If the selected coupling factors; selection device is larger than - Amount of a mounting error caused by machine design. precaution necessary (When used in - Permissible error of coupling device.

  • Page 19: Cable Connection

    6-2. Cable Connection 6-2-1. Wiring precautions for the cables (1) Do not bind or close the cable which is connected to EZA-MAPRB with the main circuit cable and the power supply cable. If location near the above cables is unavoidable, the cable ducts should be separated with individual wiring conduits being provided.

  • Page 20: Precaution For The Cable Gland

    6-2-4. Precaution for the cable gland (1) Process the shield of PROFIBUS-DP cable and power supply cable on the EZA-MAPRB side by referring to the following photos for preventing noises. Cable Gland Parts Push nut Spacer Rubber bush Contact sleeve Double ring ①...

  • Page 21: Ground

    (2) Process following methods on the power supply and master sides for preventing noises. - Ground the shield section of the power supply cable at the spacious area on the power supply side. - Ground the shield section of PROFIBUS-DP cable at the spacious area on the master side. (3) Insert the sealing plug to the cable insertion hole for preventing water and dusts if a cable isn’t inserted to the hole.
  • Page 22 ●PROFIBUS-DP Cable wiring diagram (without lid) Terminator Terminator Wiring to IN side To master Use the sealing plug (Power supply) (Power supply) NOTE - The terminal (OUT side) of the PROFIBUS-DP cable wiring part won't be connected to any circuit if the terminator is set to ON.

  • Page 23: External Connecting Devices

    6-5. External Connecting Devices 6-5-1. Power supply (1) The power supply capacity should be more than twice the current consumption of EZA-MAPRB. Refer to "3-1-1. General specification" for the current consumption of EZA-MAPRB. Consider the voltage drop of the cable. (2) The power supply must have an over current protector.

  • Page 24: Nomenclature

    7. NOMENCLATURE 7-1. Display Contents of the Monitor LEDs The opposite side of the shaft has the monitor LED. Display Contents Monitor LED LED turns ON when EZA-MAPRB operates normally. "READY (byte offset4 bit2)" of the input data is changed to "1" simultaneously during READY PROFIBUS communication.

  • Page 25: Profibus-Dp Communication

    8. PROFIBUS-DP Communication Master: PLC etc. Slave: EZA-MAPRB ※ Download GSD file for EZA-MAPRB from NSD web site. (Note: The parameter initial value may be different depending on GSD version.) 8-1. Module Data contents which are communicated by Input or Output Data can be selected by module selection.

  • Page 26: Input Data (Slave → Master)

    8-2. Input Data (Slave → Master) 8-2-1. Input Data list byte bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 Remarks offset (MSB) Position data (LSB) PRESET READY ERROR Status ANSWER Signal name Name Information Description D0-31 Position data Reads out the position by binary data. PRESET Preset This is an operation checking signal of PRESET.
  • Page 27 ● Setting of position data division number The division number of the position data per turn can be changed by the scaling data setting. Set "8,778 turns (Total number of turns) × division number of data per turn" when changing it. For the scaling data setting, refer to "8-5.

  • Page 28: Output Data (Master → Slave)

    8-3. Output Data (Master → Slave) 8-3-1. Output Data list byte bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 offset PRD31 PRD30 PRD29 PRD28 PRD27 PRD26 PRD25 PRD24 (MSB) PRD23 PRD22 PRD21 PRD20 PRD19 PRD18 PRD17 PRD16 Preset data PRD15 PRD14 PRD13 PRD12...

  • Page 29: Preset Timing

    8-3-2. Preset timing The position data is changed by the preset data (PRD0-PRD31) and PRESET signal (1 bit) which are written from the master. The response time from the point when the PRESET signal changes from “0” to “1”, until the preset setting occurs, is shown below.

  • Page 30: Monitor

    8-4. Monitor The internal status of EZA-MAPRB selected by the monitor selection code can be read out. This function is available when selecting EZA-MAPRB-01(Position, Monitor) module. Refer to "8-1. Module" for selectable module. 8-4-1. Monitor data list Monitor selection bit31~8 bit7 bit6 bit5...

  • Page 31: Monitor Data Contents

    8-4-2. Monitor data contents (1) Error information EZA-MAPRB detects errors. For more details of the error, refer to “8-6. Error Detection". (2) Operation information Code Name Unit Description The speed can be read out by a binary code. (Unit: 0.1 r/min) - Positive numeric value: H 0 ~ H 15F90 (0 ~ 90,000) Speed 0.1r/min...

  • Page 32: Product Information

    (4) Product information Code Name Unit Description The serial number is read out. Serial number (Fixed data “8-bit” + binary “24-bit”) － * The fixed number of the products whose serial codes start from K is "00". The maximum division number for 1-turn is read out by bit unit. Divisions/Turn Fixed at 18 (H 12) The total number of turns is read out.

  • Page 33: Monitor Selection Timing

    8-4-3. Monitor selection timing The monitor selection code answerback and monitor contents are changed by writing the monitor selection code from the master. Read out the data after checking the monitor selection code answerback value. The response time from when the monitor selection code is finished to write until the monitor data starts to change is indicated.

  • Page 34: Parameter

    - The module selection of the configuration setting is different from the actual model. * Designated parameter is stored at the non-volatile memories in EZA-MAPRB. ※ Download GSD file for EZA-MAPRB from NSD web site. (Note: The parameter initial value may be different depending on GSD version.) The setting value of the parameter can be checked by the monitor.

  • Page 35: Parameter Setting Contents

    8-5-2. Parameter setting contents (1) Position data increase direction settings This setting determines rotation direction in which the position data value increases. Selection byte bit0 Description offset Content The position data value will increase when the shaft of EZA-MAPRB (Factory setting) turns in the clockwise direction as viewed from the shaft end.
  • Page 36 (3) Scaling function selection and scaling data setting The scaling setting can be changed the division number of the position data per turn. Set the total number of divisions when changing it. Scaling function selection Selection byte bit2 Description offset Content The scaling is invalid.

  • Page 37: Error Detection

    8-6. Error Detection 8-6-1. Diagnostic data list byte bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 offset Invalid Station Station Master _Slave Ext_Diag Cfg_Fault _Not _Not _Lock _Fault _Supported _Response _Ready _Existent Deacti- Sync Freeze set to 1 Stat Wd_On vated _Mode _Mode...
  • Page 38 (3) Error information Input Data Error When Clear Description Status Probable cause Name Detected Monitor LED Method ERROR READY The position and EZA-MAPRB has -CLR EZA-MAPRB has Sensor error Always speed data are failure -Restart failure unstable. The position and An error has occurred speed data are at the non-volatile...

  • Page 39: Sample Program

    9. SAMPLE PROGRAM The program example of EZA-MAPRB is indicated. (This is an example which is configured by STEP7 manufactured by SIEMENS AG.) 9-1. Configuration Setting (1) PLC address Module Address Remarks EZA-MAPRB I Address IB0 ~ 9 [Additional Field Devices: Encoders] Q Address QB0 ~ 9 Select EZA-MAPRB-01(Position, Monitor)

  • Page 40: Program For Error Detection

    9-2. Program for Error Detection (1) OB1 "Diagnostic Data" is transmitted to DB1 when the error detection is ON. Error information is cleared when the error detection is OFF. Outputs the error information.
  • Page 41 (2) OB82 The data type of the error detection data is converted. Conversion (byte to int) The data type of the error code is converted. Conversion (byte to int) The error detection is set to ON or OFF.

  • Page 42: Program For Position Data Reading

    9-3. Program for Position Data Reading (1) OB1 Outputs the position data to QB30 to33. The position data is transmitted to MD30.

  • Page 43: Program For Preset

    9-4. Program for Preset (1) OB1 Transmits the preset data. Preset command Preset completion output...

  • Page 44: Program For Monitor

    9-5. Program for Monitor The program for monitor is needed to select EZA-MAPRB-01(Position, Monitor) from module selection. For the module selection, refer to "8-1. Module". (1) OB1 Transmits the monitor selection code The data type of the monitor selection code is converted. Conversion (byte to int) The data type of the monitor selection code answerback is...

  • Page 45: Inspection

    10. INSPECTION The inspection should be conducted once every 6 months to a year. Any inspected items which do not satisfy the criteria shown below should be repaired Inspection Inspection Description Criteria Remark item Power Measure the voltage fluctuation at the power Within 10.8V to 28.8VDC range Tester supply supply terminal block.

  • Page 46: Trouble Shooting

    - EZA-MAPRB and cable must keep far from noise sources. - Reconsider shielding or grounding method. Isn't the position data Go to "11-2. Flowchart when Position Data is not Read." read out correctly? Contact your NSD representative for providing us details of the problem.

  • Page 47: Flowchart When Position Data Is Not Read

    PRESET signal Set the PRESET signal to "0". outputs "1" or "0" repeatedly. EZA-MAPRB has failure. The ezSCOPE's Contact your NSD representative for providing us position data output details of the problem. normally. The operation is normal when replacing a new EZA-MAPRB.

  • Page 48: Appendix 1. Ce Marking

    APPENDIX 1. CE MARKING EZA-MAPRB conforms to EMC directive. The low voltage directive is out of the range because EZA-MAPRB is activated by 24VDC power supply. APPENDIX 1-1. EMC Directives It is necessary to do CE marking in the customer’s responsibility in the state of a final product. Confirm EMC compliance of the machine and the entire device by customer because EMC changes configuration of the control panel, wiring, and layout.
  • Page 50 Manufacturer NSD Corporation 3-31-28, OSU, NAKA-KU, NAGOYA, JAPAN 460-8302 Distributor NSD Trading Corporation 3-31-23, OSU, NAKA-KU, NAGOYA, JAPAN 460-8302 Phone: +81-52-261-2352 Facsimile: +81-52-252-0522 URL: www.nsdcorp.com E-mail: foreign@nsdcorp.com Copyright©2023 NSD Corporation All rights reserved.
