HP LD5511 User Manual

HP LD5511 User Manual

Display
Hide thumbs Also See for LD5511:

Advertisement

Quick Links

Download this manual

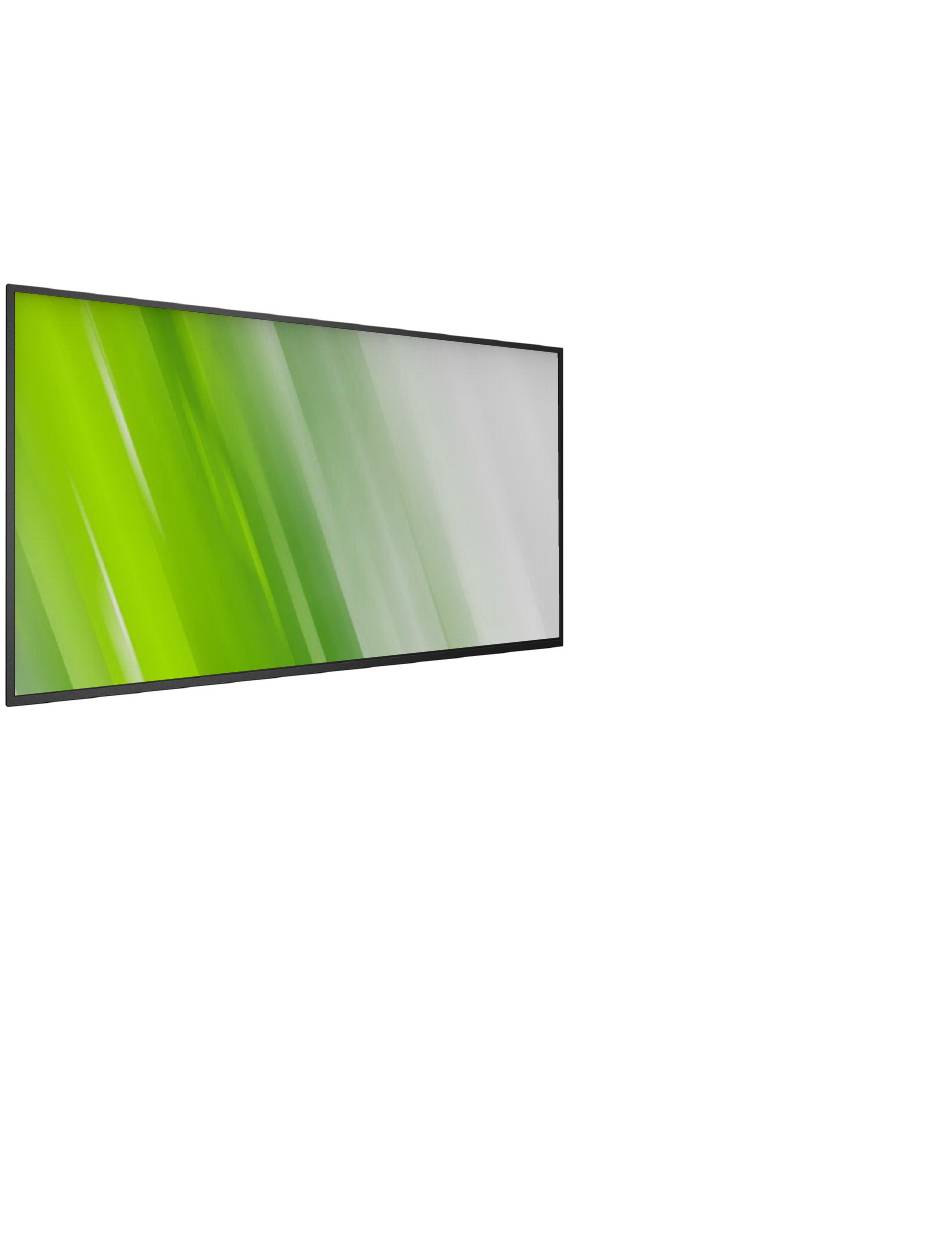

LD5511
HP Digital Signage Display
User Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the LD5511 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HP LD5511

Summary of Contents for HP LD5511

  • Page 1 LD5511 HP Digital Signage Display User Guide...
  • Page 2 (c) Copyright 2016 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
  • Page 3 LD5511 Safety Instructions • If turning off the display by detaching the power cable, wait for 6 seconds before re-attaching the power cable for normal operation. Warnings and Precautions • To avoid the risk of shock or permanent damage to the set do not expose the display to rain or excessive moisture.
  • Page 4 LD5511 WARNING: The mains plug or appliance coupler is used as the • EN55024:2010 (Immunity requirement of Information Technology disconnect device,the disconnect device shall remain Equipment) readily operable. • EN61000-3-2:2006 +A1:2009+A2:2009 (Limits for Harmonic Current Emission) WARNING: To prevent the spread of fire, keep candles or other open flames away from this product at all times.
  • Page 5 LD5511 This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug proceed as follows: 1. Remove fuse cover and fuse. 2. Fit new fuse which should be a BS 1362 5A,A.S.T.A. or BSI approved type.
  • Page 6 LD5511 China RoHS ケーブル＆ワ 除外項目 イヤ 中国电子信息产品污染控制标识要求 ( 中国 RoHS 法规标示要求 ) 产品中有害物质的名称及含量。 リモコン 除外項目 *：はベア印刷回路基板、はんだ付け、および抵抗器、コンデ 有害物质 ンサ、アレー、コネクタ、チップなど、その表面実装素子で 構成される。 六价铬 多溴 多溴二 零部件名称 铅 汞 镉 联苯 苯醚 (Pb) (Hg) (Cd) 注1：「○」は、算出対象物質の含有率が含有率基準値以下で (VI)) (PBB) (PBDE) あることを示す。 注2：「除外項目」は、算出対象物質がJIS C 0950規格によって 塑料外框...
  • Page 7 LD5511 　 维 文 环保使用期限 在产品本体上标示的该标志表示环境保护使用期限为 10 年。 “Louzsim 电子信息产品的环境保护使用期限是指电子信息产品中所含的有 Danghnaeuz denyouz vuenh ndaej mbouj habdangq aiq miz 害物质不会向外部泄漏或出现突然变异，并且电子信息产品的用 gij yungyiemj fatseng bauqcaq 壮 文 户在使用该电子信息产品时也不会对环境造成严重污染或对人 Cijndaej yungh gij denyouz doengzyiengh loihhingz roxnaeuz 体、财产带来严重损害的期限。 daengjyauq loihl haenx vuenh” 在环境保护期限中，请按照使用说明书使用本产品。 “接入本设备的有线网络天线必须与保护接地隔离 , 不...
  • Page 8 LD5511 Waste Electrical and Electronie Equipment- North Europe (Nordic Countries) WEEE Information Attention users in European Union private households Placering/Ventilation This marking on the product or on its packaging VARNING: illustrates that, under European Directive 2012/19/ FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH UTTAG EU governing used electrical and electronic appliances, ÄR LÄTÅTKOMLIGA, NÄR DU STÄLLER DIN UTRUSTNING...
  • Page 9 LD5511 Table Of Contents Change your settings ............. 16 5.1. Settings ....................16 5.1.1. Picture menu ............16 Unpacking and Installation ............1 5.1.2. Sound menu .............17 1.1. Unpacking ..................1 5.1.3. General settings menu ........17 1.2. Package Contents ................1 5.2. Network Settings ..............18 1.3. Installation Notes .................1 USB device compatibility ............19 1.4.
  • Page 10 You might like to save the package box and packing material for shipping the display. • To locate updates to the user guide for your product, go to http://www.hp.com/support, and select your country. Select Drivers & Downloads, and then follow the on-screen instructions.
  • Page 11 LD5511 1.4. Mounting on a Wall To mount this display to a wall, you will have to obtain a standard wall-mounting kit (commercially available). We recommend using a mounting interface that complies with TUV-GS and/or UL1678 standard in North America.
  • Page 12 LD5511 Ventilation Requirements for enclosure locating To allow heat to disperse, leave space between surrounding objects as shown in the diagram below. 100 mm 100 mm 100 mm 100 mm 1.5. Using the Remote sensor and power indicator 1. Pull down the lens to have better remote control performance and easy to observe the light information of power status 2.
  • Page 13 LD5511 Parts and Functions 2.1. Control Panel MUTE INPUT MENU [ ] button [ ] button Use this button to turn the display on or put the display in standby. Move the highlight bar down to adjust the selected item while OSD menu is on.
  • Page 14 LD5511 2.2. Input/Output Terminals NOTES: MAIN POWER SWITCH • This display’s remote control sensor will stop working if the jack Switch the main power on/off. [IR IN] is connected. AC IN • To remotely control your A/V device via this display, refer to AC power input from the wall outlet.
  • Page 15 LD5511 2.3. Remote Control [ ] POWER button Switch this display on or off. 2.3.1. General functions [PLAY] buttons Control playback of media files. ] SOURCE button Select input source. Press [ ] or [ ] button to select from...
  • Page 16 LD5511 2.3.2. Inserting the batteries in the remote control The remote control is powered by two 1.5V AAA batteries. To install or replace batteries: 1. Press and then slide the cover to open it. 2. Align the batteries according to the (+) and (–) indications inside the battery compartment.
  • Page 17 LD5511 Connecting External Equipment 3.1. Connecting External Equipment (DVD/VCR/VCD) 3.1.1. Using COMPONENT video input Audio Out COMPONENT Out (YPbPr) DVD / VCR / VCD [AUDIO IN] [COMPONENT IN] AC IN (YPbPr) PC Line IN HDMI IN DVI IN VGA IN COMPONENT IN 3.1.2.
  • Page 18 LD5511 3.1.3. Using HDMI video input DVD / VCR / VCD HDMI Out AC IN [HDMI IN] PC Line IN HDMI IN DVI IN VGA IN COMPONENT IN 3.2. Connecting a PC 3.2.1. Using VGA input VGA Out D-Sub 15 pin...
  • Page 19 LD5511 3.2.3. Using HDMI input HDMI Out AC IN [HDMI IN] PC Line IN HDMI IN DVI IN VGA IN COMPONENT IN 3.3. Connecting Audio Equipment 3.3.1. Connecting an external audio device AUDIO IN STEREO AMPLIFIER COMPONENT OUT (YPbPr) AUDIO OUT...
  • Page 20 LD5511 3.4. Connecting Multiple Displays in a Daisy-chain Configuration You can interconnect multiple displays to create a daisy-chain configuration for applications such as a video wall. 3.4.1. Display control connection Connect the [RS232C OUT] connector of DISPLAY 1 to the [RS232C IN] connector of DISPLAY 2.
  • Page 21 LD5511 3.6. Wire-connecting to Network If you connect this display to a home network, you can play photos, music and videos from your computer. See Play multimedia files via Local Area Network (Page 13) for more detail. INTERNET ROUTER [RJ-45]...
  • Page 22 LD5511 Operation 3. Select a file from the content browser, then press button to start playing. NOTE: The control buttons described in this section is mainly on the 4. Press the Play buttons on the remote control to control playing. remote control unless specified otherwise..
  • Page 23 LD5511 4.3.2. Playing movie files Caution: 1. Select in the top bar. • The manufacturer is not responsible if the USB device is not supported, nor is it responsible for damage to or loss of data in the 2. Select a video, then press button.
  • Page 24 LD5511 4.3.3. Playing photo files 1. Select in the top bar. 2. Select a photo thumbnail, then press button. Date Info Play All Sort USB device Options Start a slideshow If there are multiple photos in a folder, select a photo, then select {Play All}.
  • Page 25 LD5511 Change your settings 5.1. Settings Using the remote control: 5.1.1. Picture menu Picture Picture style Sound Restore style General settings Backlight Network settings Contrast Brightness Colour Sharpness Advanced Video or PC Format and edges 1. Press button to display the OSD menu.
  • Page 26 LD5511 5.1.3. General settings menu Video or PC When viewing content from a connected video console, select {Video} to apply video settings. When a computer is connected through HDMI, Picture Menu language select {PC}. Sound Monitor id Make sure that {Format and edges}  {Picture format}  {Unscaled}...
  • Page 27 LD5511 • {Unlock}: Enable the keyboard function. • {Lock all}: Lock all keyboard function. • {Lock but volume}: Disable all the keyboard function except button. • {Lock but power}: Disable all the keyboard function except the button. • {RC lock}: Choose to enable or disable the button function of the remote control.
  • Page 28 LD5511 USB device compatibility USB Video Subtitle Formats (for language subtitles, etc.) File Max.Bit Rate Container Video codec Maximum resolution Max.Frame Rate (fps) Audio codec Extensions (Mbps) MPEG-1 1920x1080 25p,30p,50i,60i MPEG-1(L1&L2), .mpg MPEG-2 1920x1080 25p,30p,50i,60i MPEG-1,2,2.5 L3, mpeg AAC/HE-AAC(v1&v2), MPEG-4 ASP...
  • Page 29 LD5511 USB Multimedia Formats Frequency Max.Bit Rate File Extensions Container Video codec Maximum resolution Audio codec (kHz) (Mbps) .mp3 MPEG-1,2,2.5 L3 .wma .asf (V2 up to V9.2) .wma WMA Pro WMA,WMA Pro .wav(PC) LPCM LPCM .aif(mac) LPCM LPCM .aiff(mac) .aac .mp4...
  • Page 30 LD5511 Input Mode VGA Resolution: Active Resolution Standard Refresh Rate Pixel Rate Aspect Ratio Stand for Mode Resolution H Pixels V Lines 60 Hz 25.175 MHz 72 Hz 31.5 MHz Video Graphic Array 75 Hz 31.5 MHz WVGA 70 Hz 33.75 MHz...
  • Page 31 LD5511 Pixel Defect Policy We strive to deliver the highest quality products and use some of the industry’s most advanced manufacturing processes whilst practicing stringent quality control. However, pixel or sub-pixel defects on the PDP / TFT panels used in Plasma- & LCD- displays are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but guarantees that any Plasma- &...
  • Page 32 LD5511 8.4. Dark Dot Defects Black dot defects appear as pixels or sub-pixels that are always dark or “off ”. These are the examples of black dot defects: One dark dot Two adjacent dark dots = 1 pair of dark dots...
  • Page 33 LD5511 Cleaning and Troubleshooting 9.1. Cleaning Caution When Using the Display • Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes.
  • Page 34 LD5511 9.2. Troubleshooting Symptom Possible Cause Remedy No picture is displayed 1. The power cord is disconnected. 1. Plug in the power cord. 2. The main power switch on the back of the 2. Make sure the power switch is switched on. display is not switched on.
  • Page 35 LD5511 Technical Specifications Display: Item Specifications Screen Size (Active Area) 1209.6(H) x 680.4(V) Aspect Ratio 16:9 Number of pixels 1920 (H) x 1080 (V) Pixel pitch 0.63(H) x 0.63(V) Displayable colors 16.7M Brightness (typical) 350 cd/m Contrast ratio (typical) 1200:1...
  • Page 36 LD5511 Environmental Condition: Item Specifications Temperature Operational 0 ~ 40°C Storage -20 ~ 60°C Humidity Operational 20 ~ 80% RH (No condensation) Storage 5 ~ 95% RH (No condensation) Altitude Operational 0 ~ 3,000 m Storage / Shipment 0 ~ 9,000 m...
