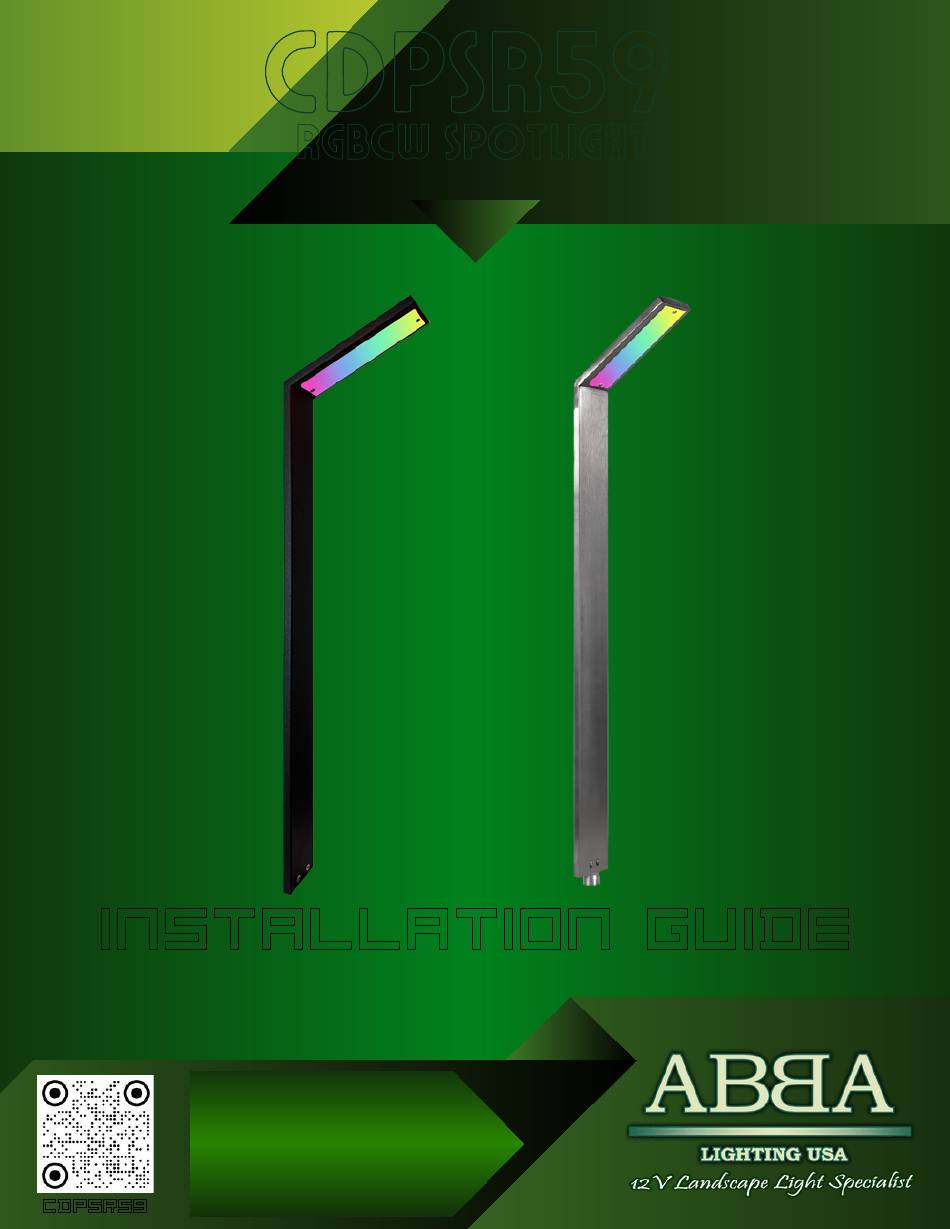

- Page 1 CDPSR59 CDPSR59 RGBCW SPOTLIGHT RGBCW SPOTLIGHT INSTALLATION GUIDE INSTALLATION GUIDE (800) 360-2960 7701 Alabama Ave., Canoga Park CA, 91335 www.ABBALightingUSA.com CDPSR59 CDPSR59...
- Page 2 Congratulations on your purchase of this high-quality product! We want to ensure that you have the best possible experience with it, so we kindly ask that you take a moment to carefully read and follow all instructions before assembly, installation, and use.
- Page 3 WARNING: IMPORTANT SAFETY INSTRUCTIONS LIGHTEN LAMP IS HOT! WARNING: TO REDUCE THE RISK OF FIRE OR INJURY TO PERSONS: Please exercise caution when using the lamp, as it tends to HEAT up rapidly. We recommend taking necessary safety measures to ensure optimal usage. For your safety, please refrain from touching the HOT lens, guard, or enclosure.
- Page 4 CAUTION: FIXTURE(S) MUST BE INSTALLED IN ACCORDANCE WITH ALL LOCAL CODES AND ORDINANCES. DO NOT INSTALL WITHIN 10 FEET OF A POOL, SPA OR FOUNTAIN PRODUCT OVERVIEW The CDPS59 Stainless Steel Path Light is designed to enhance outdoor landscapes, providing both functionality and style. Constructed from high-quality stainless steel, this durable fixture is ideal for illuminating walkways, gardens, and other outdoor spaces.
- Page 5 INSTRUCTION MANUAL FOR CDPSR59 INSTALLATION STEP-BY-STEP INSTALLATION INSTRUCTIONS Step 1: Plan Your Layout Determine Placement: Choose the path or area where the lights will be installed. Measure the distance between lights to ensure even illumination. A typical spacing is 6–10 feet apart, depending on the desired light spread.
- Page 6 INSTRUCTION MANUAL FOR CDPSR59 INSTALLATION Waterproof the Connections: Use WN12 waterproof wirenuts (Sold Separately) to protect the wiring from moisture and outdoor conditions when connecting the wires from the fixture. Step 4: Attach the Path Light Mount the Fixture: Once the wiring is complete, securely attach the CDPS58 path light to the ground stake.
- Page 7 INSTRUCTION MANUAL FOR CDPSR59 INSTALLATION After downloading your APP. Proceed to register your account using your mobile number. Expect a verification code via text message or email within a few minutes. Enter the code when prompted to establish your password.
- Page 8 INSTRUCTION MANUAL FOR CDPSR59 INSTALLATION Proceed by choosing your 2.4 Ghz WI-FI network and input the corresponding password Upon successful completion. You will recieve a prompt confirming that the device has been successfully added. Open the app to customize the lighting to your preference...
- Page 9 INSTRUCTION MANUAL FOR CDPSR59 INSTALLATION strongly recommend that main cable from transformer buried underground safety reasons. Additionally, please be sure to avoid exceeding the maximum wattage on the fixture(s) to prevent any damage or hazards Main Line Connect the wires using...
- Page 10 Ensure the mounting surface is capable of supporting the weight of both the bracket and the lighting fixture. ADDITIONAL RESOURCES For a detailed video tutorial on how to install the CDPSR59, visit our YouTube channel and search for "CDPSR59" Please visit our website for more of our products.
