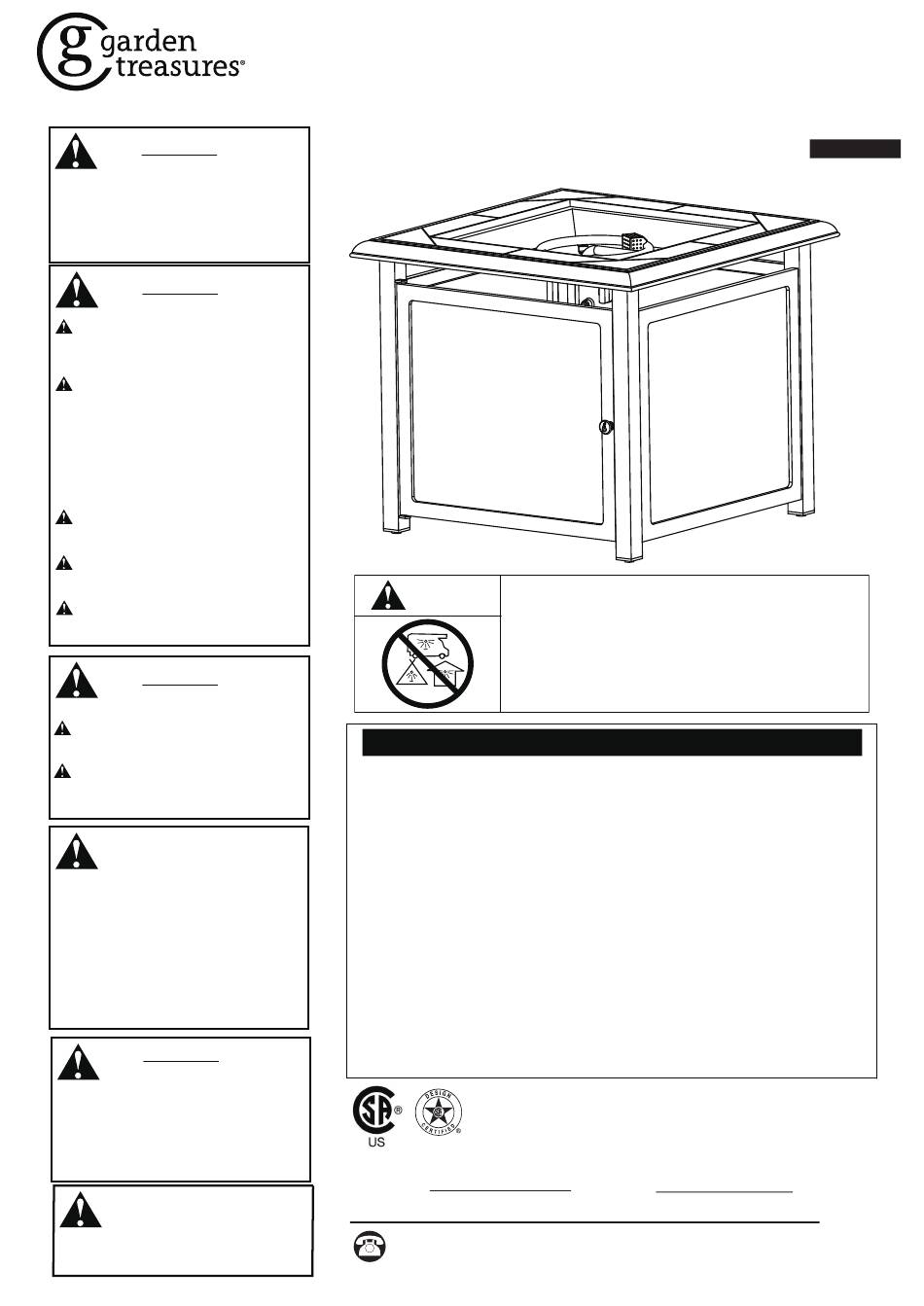

Garden Treasures FHTS80063E-3 Assembly Instructions Manual

29.33-in tile top gas fire table

Advertisement

Available languages

Available languages

Quick Links

Garden Treasures® is a registered trademark
of LF, LLC. All Rights Reserved.
WARNING
FOR YOUR SAFETY:
For Outdoor Use Only (outside, non-enclosed
area) Do Not Use For Cooking.
Installation and service must be performed by
a qualified installer, service agency, or the gas
supplier.
WARNING
FOR YOUR SAFETY:
If the information in this manual is not
followed exactly, a fire or explosion may
result causing property damage, personal
injury or loss of life.
WHAT TO DO IF YOU SMELL GAS:
• Do NOT try lighting any appliance.
• Do NOT touch any electrical switch; do
NOT use any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone.
• Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call
the fire department.
Installation and service must be performed
by a qualified installer, service agency or
gas supplier.
INSTALLER: Leave this manual with the
appliance. CONSUMER: Retain this manual
for future reference.
If you are assembling this unit for someone
else, give this manual to him or her to read
and save for future reference .
WARNING
FOR YOUR SAFETY:
Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage.
Read the installation, operation and
maintenance instructions thoroughly before
installing or servicing this equipment.
DANGER
If you smell gas:
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. If odor continues, leave the area
immediately.
4. After leaving the area, call your gas
supplier or fire department.
Failure to follow these instructions could result
in fire or explosion, which could cause property
damage, personal injury, or death.
WARNING
FOR YOUR SAFETY:
1. Do NOT store or use gasoline or other
flammable vapors or liquids in the vicinity of
this or any other appliance.
2. An LP-cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
DANGER
Do NOT leave this appliance unattended while
it is in operation.
PH1911
DANGER
• This appliance can produce carbon monoxide which has
no odor.
• Using it in an enclosed space can kill you.
• Never use this appliance in an enclosed space such as a
camper, tent, car or home.
Table of Contents
. . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Package Contents
. . . . . .
Important Safety Information
Propane (LP) Dangers And Warnings
. . . . . . . . . . . . . . . . . .
. . . . . .
Caution
Hose & Regulator Assembly and replacement
. . . . . . . . . . . . . . . . . . . . . . . .
Assembly Instructions
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting
.
Warranty and Replacement Parts List
This appliance complies with "ANSI Z21.97-2017-/CSA 2.41-2017, Outdoor Decorative Gas Appliances."
This product can expose you to carbon monoxide, which is a combustion
California Proposition 65:
by product known to the State of California to cause cancer birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov.
Handling the brass material on this product can expose you to Lead, which
California Proposition 65:
is known to the State of California to cause cancer and birth defects or other reproductive harm.
Wash hands after handling. For more information go to www.P65Warnings.ca.gov.
Gas Conversion Kits are also available in Lowes.com
ATTACH YOUR RECEIPT HERE
Serial Number
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 8 p.m., EST, Monday - Friday.
29.33-IN TILE TOP GAS
CARBON MONOXIDE HAZARD
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
. . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Purchase Date
1
ITEM # 1260934
FIRE TABLE
MODEL
# FHTS80063E-3
Español p. 14
. . . .
2
11
12
13
LBWU-003661656
