MPC P500-WIFI Operation, Maintenance And Installation Manual

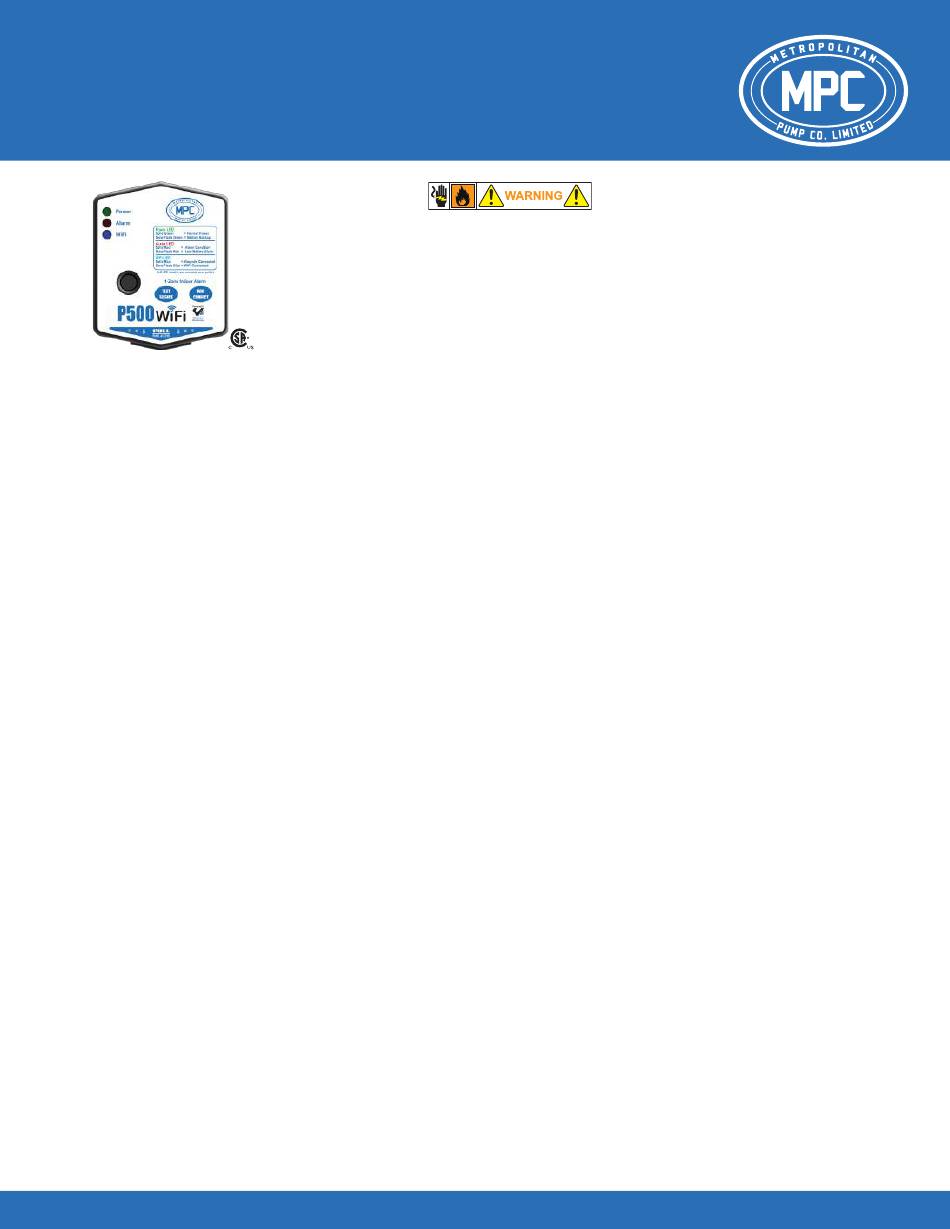

P500 WiFi 1-Zone Indoor Alarm
WiFi, Model: P500-WIFI | Rated Type 1 (Indoor), Alarm Panel
Operation, Maintenance, and Installation Manual
Safety Guidelines
1. DISCONNECT ALL ELECTRICAL SERVICE BEFORE WORKING ON OR HANDLING THE PRODUCT.
2. DO NOT USE WITH FLAMMABLE OR EXPLOSIVE FLUIDS SUCH AS GASOLINE, FUEL OIL, KEROSENE, ETC.
DO NOT USE IN EXPLOSIVE ATMOSPHERES.
3. ALARM PANEL MUST BE MOUNTED INDOORS. FOR OUTDOOR APPLICATIONS, CONSULT FACTORY.
Specifications
Primary Power
120VAC, 50/60 Hz
Circuit Board Primary Power
11.1VDC, 500mA maximum
Circuit Board Secondary Power
4.5VDC, (3) standard AA batteries
(battery backup; not included)
Field Connection Sensor
3-10VAC/DC, 10mA minimum
(signaling device)
Auxiliary Contacts
30VDC, 700mA maximum
Normally Open; Single Pole, Single Throw
Description of Operation
The P500 WiFi 1-Zone Indoor Alarm is an indoor rated alarm panel, powered by a standard 120VAC wall outlet. The green
power LED will illuminate (solid) when powered. The P500 WiFi indoor alarm is a multipurpose alarm panel that can be used
for a variety of applications, including but limited to: septic tanks, sumps, holding tanks, pump chambers, water tanks, flow,
pressure, condensate, temperature, and any others where a "dry" contact can be connected to the alarm panel. Connect
and register your wireless device to the cloud based Vizzy.Site™ to begin monitoring and receiving text and email alerts
for system conditions.
The alarm panel is equipped with audible and visual alarm indication, activated by a normally open or normally closed
sensor wired to the terminals and/or the low battery alarm detection. A variety of sensors can be used such as a float
switch, pressure switch, or any "dry" type sensor that "closes" during an alarm condition (normally open or normally closed).
Installing (3) AA batteries (not included) provides battery backup during power outages. Use the auxiliary contacts to
connect to building automation systems (BAS) and phone dialers. Multiple sensors (signaling device) can be connected for
expanded monitoring.
An alarm condition occurs when the sensor (signaling device) contact is activated, during which the red alarm LED will
illuminate (solid), buzzer will annunciate (solid), and the auxiliary contacts will activate. The alarm condition will stay on until
the sensor is deactivated. If the test/silence pushbutton is pressed during an alarm condition, it will silence the buzzer while
the alarm LED remains on (solid) with activated auxiliary contacts (alarm LED slow flash). The silence condition will reset
when the sensor deactivates and the alarm panel will auto reset for the next alarm cycle.
QSG00453_Rev01_Metropolitan Pump Co P500 WiFi 1-Zone Indoor Alarm | July 19, 2023 8:31 AM
Metropolitan Pump Co. Limited | 475 Thompson Drive, Cambridge, Ontario N1T 2K7 | www.metropump.com
Introduction
Before proceeding with the installation or operation of the product, make sure to read all
instructions thoroughly, as well as complying with all Federal, State and Local Codes,
Regulations and Practices. The product must be installed by qualified personnel familiar
with all applicable local electrical and mechanical codes. Refer to the National Electrical
Code (NFPA 70). Failure to properly install, test, and operate this product can result in
personal injury or equipment malfunction.
260894
LEDs
Green (power), Red (alarm),
and Blue (Vizzy/WiFi)
Buzzer
85 dB @ 10-feet
Wall-Mounted Power Supply
120VAC, 50/60 Hz (input)
11.1VDC, 500mA maximum (output)
(6-foot cord)
Enclosure
Thermoplastic
5 x 4 x 1.3 (inches)
Type 1, Indoor
Removable cover
Certifications
CSA (US and Canada)
FCC Part 15 (US and Canada)
Three-Year Limited Warranty
Installation Instructions | Page 1
