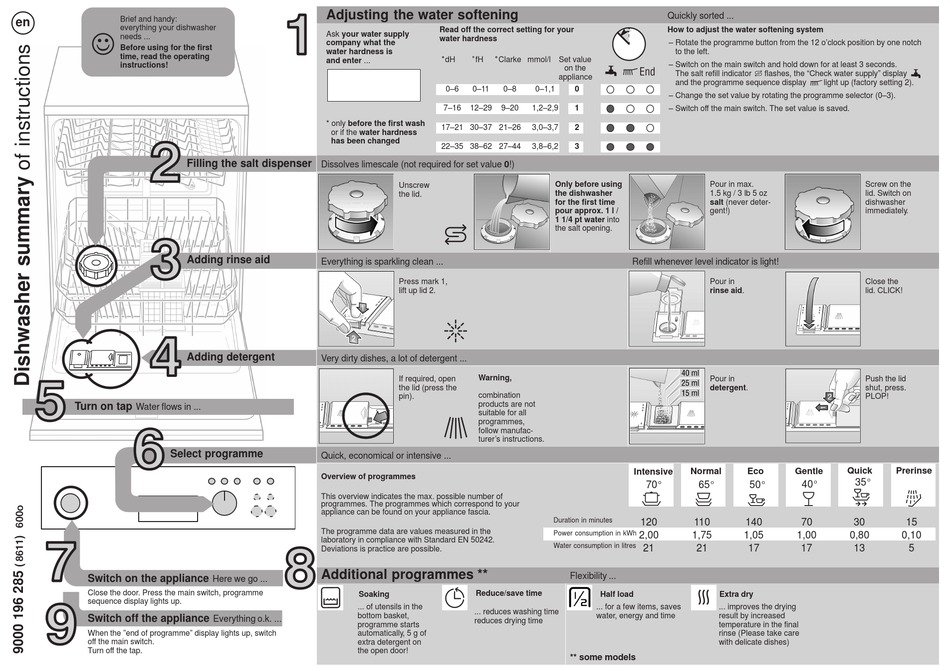

BALAY 3VI340XP - annexe 1 Instructions

Brief and handy:
en
everything your dishwasher
needs ...
Before using for the first
time, read the operating
instructions!
Filling the salt dispenser
Adding rinse aid
Adding detergent
Turn on tap
Water flows in ...
Select programme
Switch on the appliance
Close the door. Press the main switch, programme
sequence display lights up.
Switch off the appliance
When the "end of programme" display lights up, switch
off the main switch.
Turn off the tap.
Adjusting the water softening
system *
Ask your water supply
company what the
water hardness is
and enter ...
* only before the first wash
or if the water hardness
has been changed
Dissolves limescale (not required for set value 0!)
Everything is sparkling clean ...
Very dirty dishes, a lot of detergent ...
Quick, economical or intensive ...
Overview of programmes
This overview indicates the max. possible number of
programmes. The programmes which correspond to your
appliance can be found on your appliance fascia.
The programme data are values measured in the
laboratory in compliance with Standard EN 50242.
Deviations is practice are possible.
Additional programmes **
Here we go ...
Soaking
... of utensils in the
bottom basket,
Everything o.k. ...
programme starts
automatically, 5 g of
extra detergent on
the open door!
Read off the correct setting for your
water hardness
°dH °fH °Clarke mmol/l Set value
on the
appliance
0–6 0–11 0–8 0–1,1 0
7–16 12–29 9–20 1,2–2,9 1
17–21 30–37 21–26 3,0–3,7 2
22–35 38–62 27–44 3,8–6,2 3
Only before using
Unscrew
the dishwasher
the lid.
for the first time
pour approx. 1 l /
1 1/4 pt water into
the salt opening.
Press mark 1,
lift up lid 2.
Warning,
If required, open
the lid (press the
combination
pin).
products are not
suitable for all
programmes,
follow manufac-
turer's instructions.
Duration in minutes
Power consumption in kWh
Water consumption in litres
Flexibility ...
Reduce/save time
... reduces washing time
reduces drying time
** some models
Quickly sorted ...
How to adjust the water softening system
– Rotate the programme button from the 12 o'clock position by one notch
to the left.
– Switch on the main switch and hold down for at least 3 seconds.
The salt refill indicator flashes, the "Check water supply" display
and the programme sequence display
– Change the set value by rotating the programme selector (0–3).
– Switch off the main switch. The set value is saved.
Pour in max.
1.5 kg / 3 lb 5 oz
salt (never deter-
gent!)
Refill whenever level indicator is light!
Pour in
rinse aid.
Pour in
detergent.
Intensive Normal Eco
70_ 65_ 50_
120 110 140
2,00 1,75 1,05
21 21 17
Half load Extra dry
... for a few items, saves ... improves the drying
water, energy and time result by increased
temperature in the final
rinse (Please take care
with delicate dishes)
light up (factory setting 2).
Screw on the
lid. Switch on
dishwasher
immediately.
Close the
lid. CLICK!
Push the lid
shut, press.
PLOP!
Quick Prerinse
Gentle
35_
40_
70 30 15
1,00 0,80 0,10
17 13 5
