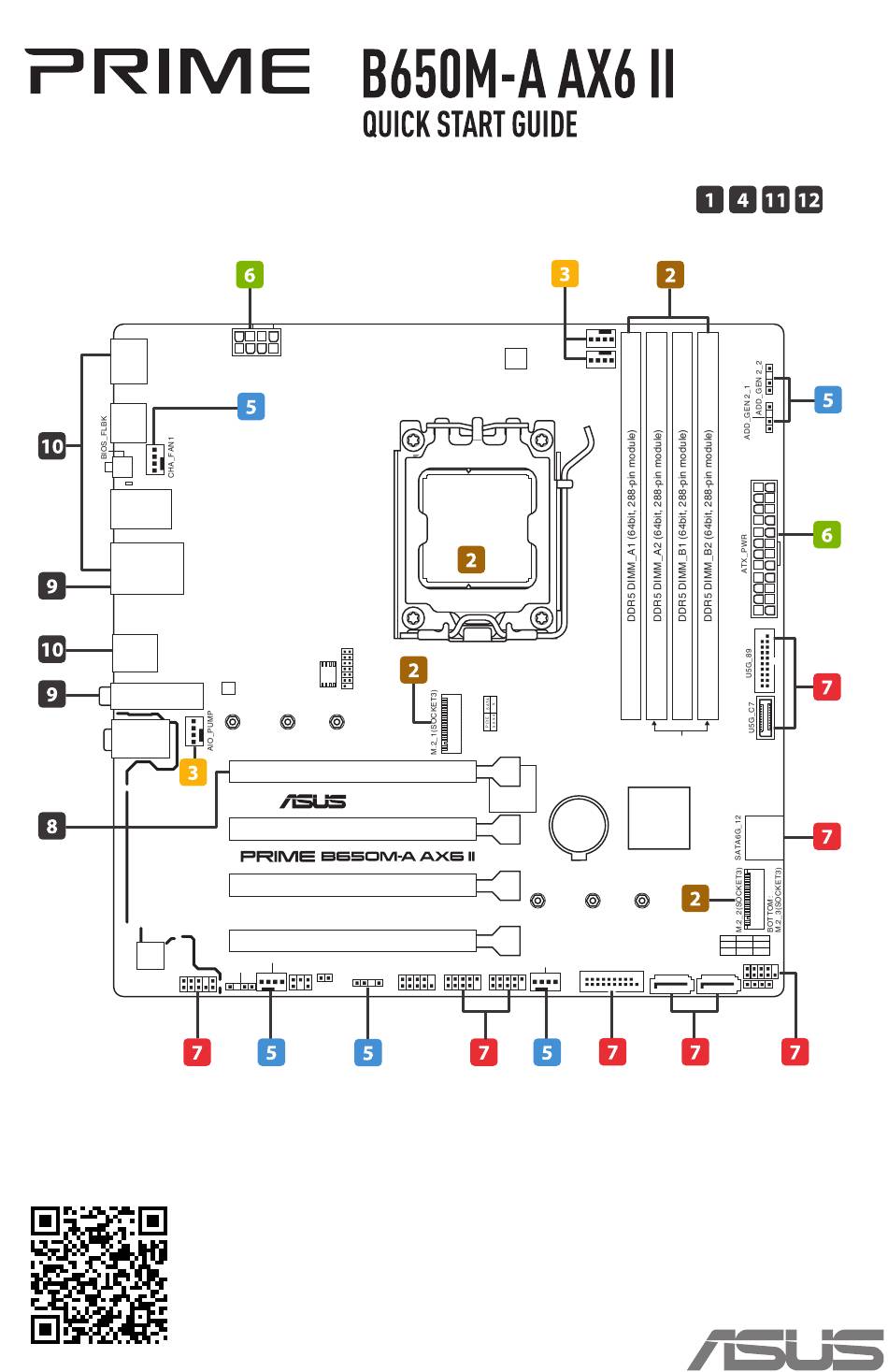

The items labeled below correspond to the installation steps, for steps
and more information on the steps, please refer to the rest of the guide.
DP
HDMI
FLBK_LED
USB_5_E123
LAN_U5G_34
U10G_6
U10G_C2
M.2(WIFI)
AUDIO
Audio
Codec
F_AUDIO
Front Audio
SEEKING A SOLUTION?
Scan now for assistance
Support
CPU_12V
Chassis Fan
256Mb
BIOS
TPM
Ethernet
2280
2260
2242
PCIEX16_1
PCIEX16_2
PCIEX16_3
PCIEX16_4
CHA_FAN2
SPDIF_OUT
COM_DEBUG
ADD_GEN 2_3
CLRTC
Chassis Fan
ARGB
DIGI
+VRM
SOCKET AM5
Super
I/O
BATTERY
2280
CHA_FAN3
COM
USB_1415 USB_1617
USB 2.0
Chassis Fan
CPU_FAN
CPU_OPT
1
st
AMD
B650
2260
2242
PCIE
M.2_2
4.0 X4
M.2_3
4.0 X2
F_PANEL
U5G_1011
SATA6G_4 SATA6G_3
SPEAKER
USB 5Gbps
ARGB
USB 5Gbps
SATA
X
X
Front Panel
Advertisement
Related Manuals for Asus PRIME B650M-A AX6 II
Summary of Contents for Asus PRIME B650M-A AX6 II
- Page 1 The items labeled below correspond to the installation steps, for steps and more information on the steps, please refer to the rest of the guide. DIGI CPU_12V +VRM CPU_FAN CPU_OPT ARGB HDMI Chassis Fan FLBK_LED USB_5_E123 SOCKET AM5 LAN_U5G_34 256Mb U10G_6 BIOS U10G_C2...
- Page 2 Q23478 / First Edition / March 2024 Prepare the components Memory M.2 SSD Chassis CPU Cooler SATA device Power supply unit Graphics card NOTE: The components listed above are recommendations, please prepare components according to your needs. Install key components •...
- Page 3 • Install the M.2 SSD Remove Remember to rotate the M.2 Q-latch, secure the screw properly, or insert the pin of the M.2 Anchor into the hole. Install the bundled rubber for M.2 when installing a single sided M.2 module. OPTIONAL NOTE: Please refer to the manual(s) for more information: Motherboard...
- Page 4 Install the motherboard into the chassis For non pre-mounted I/O shield models only. NOTE: Please refer to the manual(s) for more information: Motherboard Chassis Connect cables from Chassis Connect to chassis fan and ARGB/RGB headers Chassis fan ARGB header RGB header Ground Data +12V...
- Page 5 Connect cables from PSU • Connect the power cables to the motherboard NOTE: Please refer to the manual(s) for more information: Motherboard Connect cables from Chassis Connect everything to the motherboard • Front panel header CHASSIS Power Power PLED PWRSW PLED PWRSW SPEAKER...
- Page 6 Connect to the Internet via Ethernet/Wi-Fi antenna NOTE: Please refer to the manual(s) for more information: Motherboard Connect peripherals (monitor, keyboard, mouse, etc.) Turn on the PSU and your PC NOTE: Please check the Q-LEDs or Q-LED Core on selected motherboards when powering on your PC for system status.
- Page 7 Install the operating Stappen: system and drivers Bereid de onderdelen voor Installeer belangrijke onderdelen Installeer het koelsysteem Installeer het moederbord in de behuizing Sluit aan op de behuizingsventilator en de ARGB/RGB-koppen Installeer en sluit de voeding (PSU) aan Sluit alles aan op het moederbord Installeer de grafische kaart Maak verbinding met internet via ethernet/wifi-antenne 10.
- Page 8 Βήματα: 단계: Προετοιμάστε τα εξαρτήματα 구성 요소를 준비합니다 Εγκαταστήστε τα βασικά εξαρτήματα 주요 구성 요소를 설치합니다 Εγκαταστήστε το σύστημα ψύξης 냉각 시스템을 설치합니다 Εγκαταστήστε τη μητρική πλακέτα στο πλαίσιο 메인보드를 섀시에 설치합니다 Συνδέστε με τον ανεμιστήρα τους πλαισίου και τις φίσες ARGB/RGB 섀시 팬과 ARGB/RGB 헤더에 연결합니다 Εγκαταστήστε και συνδέστε τη μονάδα τροφοδοσίας (PSU) 전원 공급 장치(PSU)를 설치하고 연결합니다...
- Page 9 Kroki: Kroky: Przygotuj podzespoły Pripraviť všetky súčasti Zainstaluj główne podzespoły Nainštalovať hlavné súčasti Zainstaluj układ chłodzenia Nainštalovať chladiaci systém Zainstaluj płytę główną w obudowie Nainštalovať základnú dosku na rám Podłącz do wentylatora i złączy header ARGB/RGB w obudowie Pripojiť ventilátor na rám a hlavičku ARGB/RGB Zainstaluj i podłącz zasilacz (PSU) Nainštalovať...
- Page 10 :الخطوات Кроки: جهز المكونات . 1 Підготуйте компоненти ثبت المكونات األساسية . 2 Встановіть ключові компоненти ثبت نظام التبريد . 3 Встановіть охолоджувальну систему ثبت اللوحة األم بالهيكل . 4 Встановіть материнську плату в корпус ARGB/RGB صل مروحة الهيكل ورؤوس . 5 Підключіть до корпусу вентилятор і з’єднувачі ARGB/RGB (PSU) ركب وحدة اإلمداد بالطاقة . 6 Встановіть...
- Page 11 Button/Coin Batteries Safety Information 1. Remove and immediately recycle or dispose of used batteries according to local regulations and keep out of reach of children. Do not incinerate or dispose of batteries in household trash. 2. If ingested or inserted inside any part of the body, call a local poison control center for treatment information. Even used batteries may cause serious injury or death.
- Page 12 General Notices FCC Compliance Information Responsible Party: Asus Computer International Address: 48720 Kato Rd., Fremont, CA 94538, USA Phone / Fax No: (510)739-3777 / (510)608-4555 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 13 ASUS products sold in Vietnam, on or after September 23, 2011,meet the requirements of the Vietnam Circular 30/2011/ TT-BCT. Các sản phẩm ASUS bán tại Việt Nam, vào ngày 23 tháng 9 năm2011 trở về sau, đều phải đáp ứng các yêu cầu của Thông tư 30/2011/TT-BCT của Việt Nam.
- Page 14 Notices for Wi-Fi model FCC RF Caution Statement WARNING: Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. RF exposure warning This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
- Page 15 ASUSTek Computer Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of The Radio Equipment Regulations 2017 (S.I. 2017/1206). Full text of UKCA declaration of conformity is available at https://www.asus.com/support/. The WiFi operating in the band 5150-5350MHz shall be restricted to indoor use for the country listed below:...
- Page 16 às diretivas 2014/53/ persyaratan utama dan ketentuan relevan lainnya yang terdapat pada Petunjuk UE. O texto completo da declaração de conformidade CE está disponível em https:// 2014/53/EU. Teks lengkap pernyataan kesesuaian EU tersedia di: https://www.asus. www.asus.com/support/ com/support/...
- Page 17 Spoločnosť ASUSTek Computer Inc. týmto vyhlasuje, že toto zariadenie je v súlade so základnými požiadavkami a ďalšími príslušnými ustanoveniami smernice č. 2014/53/ V-M.2 PCIE WIFI CARD/ RTL8851BE EÚ. Plné znenie vyhlásenia o zhode pre EÚ je k dispozícii na lokalite https://www.asus. Wi-Fi 6 module with Bluetooth com/support/ CCAI23Y10050T5 Model: RTL8851BE Činnosť...
- Page 18 ASUS offers a voluntary manufacturer’s Commercial Guarantee. • SUS biedt een vrijwillige commerciële garantie van de fabrikant. • ASUS reserves the right to interpret the provisions of the ASUS Commercial • ASUS behoudt zich het recht voor om de bepalingen van de commerciële Guarantee.
- Page 19 Du finner fullstendig informasjon om garanti på https://www.asus.com/no/support/. • Bảo hành thương mại này của ASUS được cung cấp độc lập và ngoài Bảo đảm pháp Informacije o ASUS garanciji lý theo luật định và không có cách nào ảnh hưởng đến hoặc giới hạn các quyền theo Bảo lãnh pháp lý.
- Page 20 Address: 1F., No. 15, Lide Rd., Beitou Dist., Taipei City 112 ASUS COMPUTER INTERNATIONAL (America) Address: 48720 Kato Rd., Fremont, CA 94538, USA ASUS COMPUTER GmbH (Germany and Austria) Address: Harkortstrasse 21-23, 40880 Ratingen, Germany ASUSTeK (UK) LIMITED Address: 1st Floor, Sackville House, 143-149 Fenchurch Street, London, EC3M 6BL, England, United Kingdom Service and Support Visit our multi-language website at https://www.asus.com/support.
- Page 24 15060-26TJ0000...
