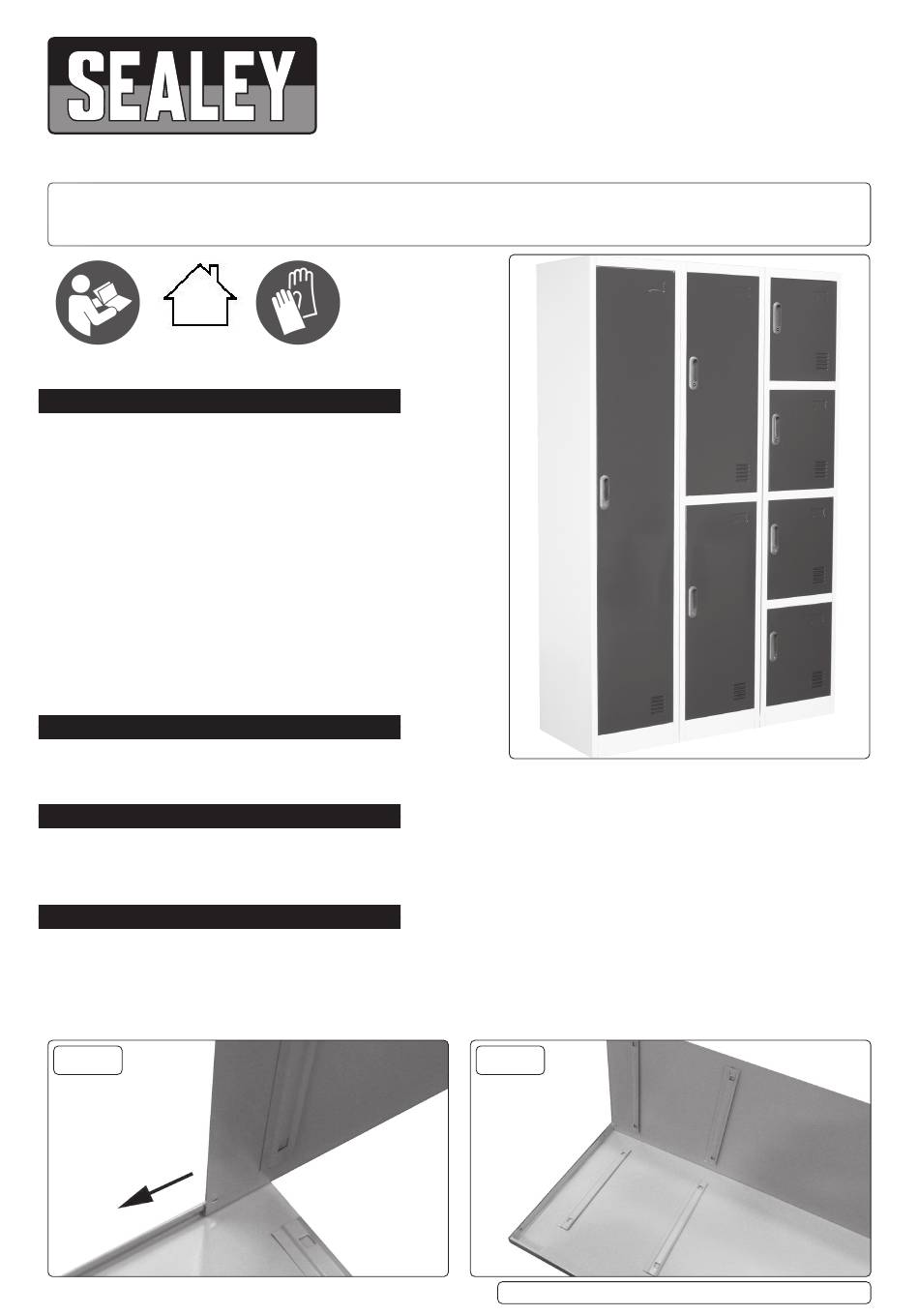

Sealey SL2D.V4 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Indoor use only
instructions
1. SAFETY
WARNING! Ensure Health & Safety, local authority, and general
‰
workshop practice regulations are adhered to when using these lockers.
Wear protective gloves.
Locate locker in a suitable work area.
9
Keep the work area clean, uncluttered and ensure there is adequate
9
lighting.
WARNING! Use locker on level and solid ground, preferably concrete.
‰
Keep the locker clean and tidy in accordance with good workshop
9
practice.
Keep children and unauthorised persons away from the work area.
9
DO NOT use the locker for any purpose other than that for which
8
it is designed.
DO NOT use the locker outdoors.
8
DO NOT get the locker wet or use in damp or wet locations or areas
8
where there is condensation.
DO NOT clean the locker with any solvents which may damage the
8
surfaces or the protective coating.
2. INTRODUCTION

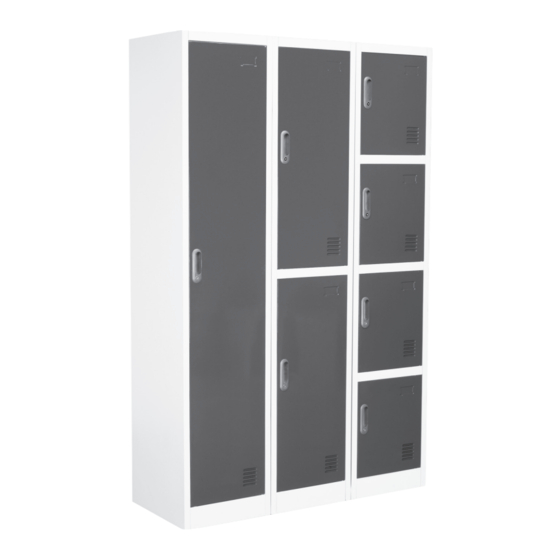

A range of lockers suitable for a variety of commercial applications.
Model No's SL1D and SL2D feature a hanging bar and small vanity
mirror for each locker. SL1D also has single shelf. Doors on all models are ventilated and fitted with cylinder locks. Supplied flat-packed.
3. SPECIFICATION
Model No: . . . . . . . . . . . . . . . . . . . . . . . . . . SL1D.V2 . . . . . . . . . . . . . . . . . . . SL2D.V4 . . . . . . . . . . . . . . . . . . . . SL4D.V2
Doors: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 door . . . . . . . . . . . . . . . . . . . . .2 doors . . . . . . . . . . . . . . . . . . . . . 4 doors
Overall Size (W x D x H): . . . . . . 380 x 450 x 1850mm . . . . . . . . . .380 x 450 x 1850mm . . . . . . . . . . 380 x 450 x 1850mm
Nett Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . 17.73kg . . . . . . . . . . . . . . . . . . . . 21.38kg . . . . . . . . . . . . . . . . . . . . . 21.38kg
4. ASSEMBLY
4.1. Lay out the back panel and the two side panels. The side panels have a cut-out at the front and a lip at the bottom.
4.2. Slide the back panel into one of the side panels from the top (fig.1) and slide it all the way down (fig.2).
NOTE: The shelf runners should line up and face the same direction, with the opening at the top ready for the shelves to slot in.
4.3. Fit the other side panel to the back panel following the same procedure. Ensure that the side panels are supported in an upright
position so that the panels are not twisted, two people maybe necessary. All the shelf runners should be the same way up.
4.4. Carefully stand the unit up, again ensuring that the panels are not twisted, two people are required for this process.
fig.1
© Jack Sealey Limited
LOCKER 1 DOOR / 2 DOOR / 4 DOOR
MODEL NO:
Wear protective
gloves
Original Language Version
SL1D.V2 / SL2D.V4 / SL4D.V2
fig.2
SL1D.V2 / SL2D.V4 / SL4D.V2 | (H,F) Issue 4 09/04/2024
