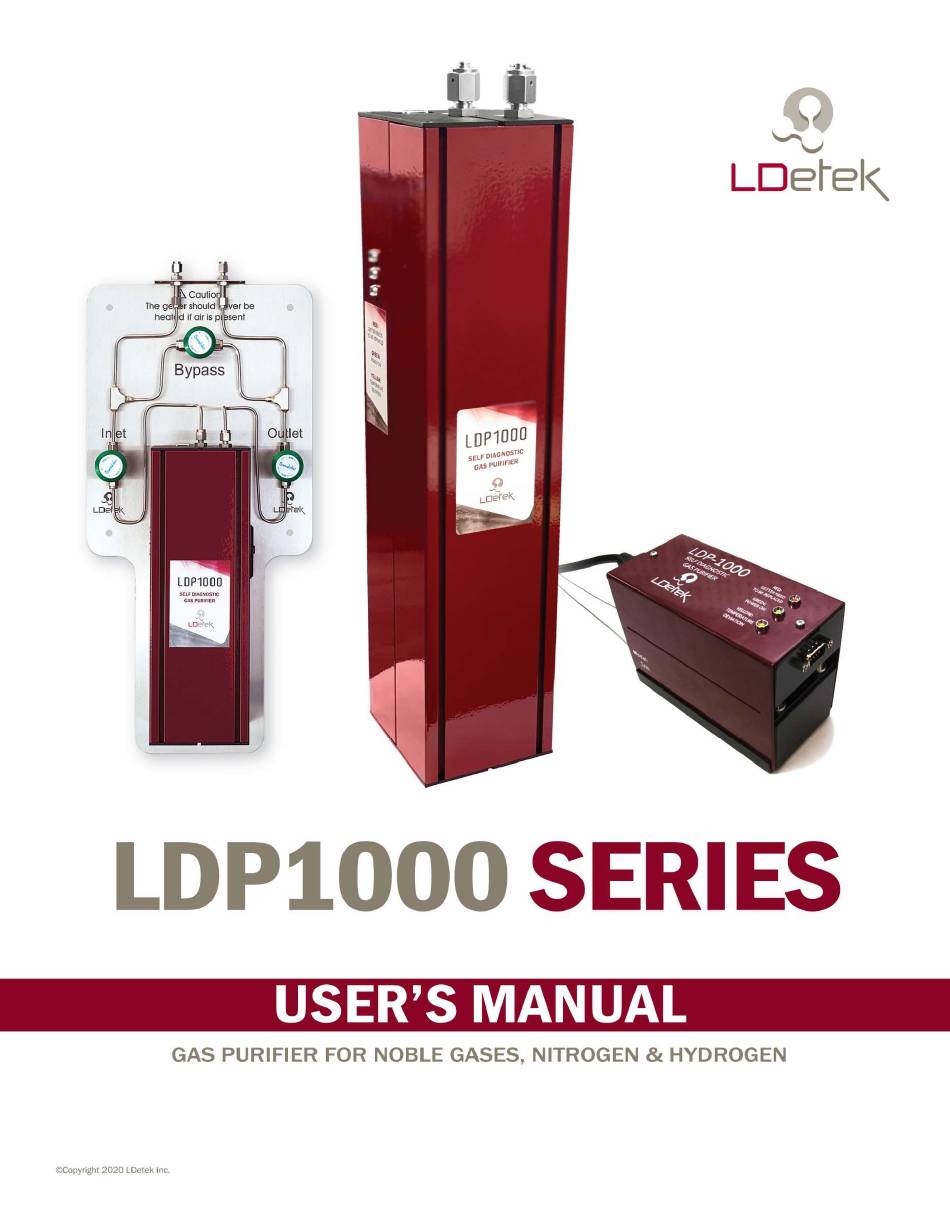

- Page 3 LDP1000 Serie Gas Purifier USER’S MANUAL V2.1 Printed in Canada Copyright 2025...
- Page 4 Table of Contents Table of Contents ....................... 4 Table of Figures ......................... 5 1. Forewarning ........................6 2. Warranty, maintenance, and service policies ..............7 3. Declaration of conformity ....................10 4. Specifications ........................12 5. Installation ........................14 5.1. Cautions ........................14 5.2.
- Page 5 Table of Figures Figure 1: Serial communication settings ....................19 Figure 2: Serial communication output ....................19 Figure 3: Top plate ..........................27 Figure 4: LDP100 internals ........................27 Figure 5: LDP1000 PCB ........................28...
- Page 6 LDP1000 Serie User’s manual 1. Forewarning Any user that wants to use the compact-LDP1000, LDP1000 or Large-LDP1000 must read this manual. It contains important information to successfully operate this purifier. LDetek assumes that all operators have taken the time to read this information before installing, operating and troubleshooting this device.
- Page 7 LDP1000 Serie User’s manual 2. Warranty, maintenance, and service policies Goods and part(s) (excluding consumables) manufactured by the seller are warranted to be free from defects in workmanship and material under normal use and service for twelve (12) months after installation and start-up and not exceeding eighteen (18) months from shipment date.
- Page 8 LDP1000 Serie User’s manual MANUFACTURED BY SELLER GIVING RISE TO THE CAUSE OF ACTION. BUYER AGREES THAT IN NO EVENT SHALL SELLER'S LIABILITY EXTEND TO INCLUDE INCIDENTAL OR CONSEQUENTIAL DAMAGES. CONSEQUENTIAL DAMAGES SHALL INCLUDE BUT ARE NOT LIMITED TO, LOSS OF ANTICIPATED PROFITS, LOSS OF USE, LOSS OF REVENUE, COST OF CAPITAL AND DAMAGE OR LOSS OF OTHER PROPERTY OR EQUIPMENT.
- Page 9 LDP1000 Serie User’s manual RETURNING A PRODUCT FOR REPAIR Upon determining that repair services are required, the customer must: • Obtain an RMA (Return Material Authorization) number. • Supply a purchase order number or other acceptable information. • Include a list of problems encountered along with the name, address, telephone, and RMA number.
- Page 10 LDP1000 Serie User’s manual 3. Declaration of conformity...
- Page 11 LDP1000 Serie User’s manual...
- Page 12 LDP1000 Serie User’s manual 4. Specifications Noble Gas Purifier Nitrogen Hydrogen Purifier Purifier Getter type: Alloy of Zr/V/Fe Alloy of Zr/V/Fe Alloy of Zr/V/Fe 2 beds (350 °C and 210 °C) 2 beds (350 °C and 250 2 beds (350 °C and 250 °C) °C) Gases purified:...
- Page 13 LDP1000 Serie User’s manual Carbon Dioxide Oxygen Purifier Purifier Getter type: Alloy of Zr/V/Fe Alloy of Zr/V/Fe 1 bed (40 °C) 2 beds (40 °C and ambient) Gases purified: Carbon Dioxide Oxygen Impurities removed: O, O , CH4, NMHC O, CO, CO , CH NMHC Impurity level:...
- Page 14 LDP1000 Serie User’s manual 5. Installation 5.1. Cautions Purifiers for Noble Gas, Nitrogen, Hydrogen and Carbon Dioxide should not be used with pure oxygen or gases with a high concentration of oxygen. The purifier’s gettering alloy is pyrophoric, therefore, using it with oxygen can result in the combustion of the material, damage to the surrounding area and possible injury.
- Page 15 LDP1000 Serie User’s manual 5.2. Application The LDP1000 is specifically designed for purifying samples as outlined in the document "Operating Parameters". Using this instrument with any other gas type will damage the purifier and may result in injuries. To ensure safe and proper use, refer to the document "Operating Parameters"...
- Page 16 LDP1000 Serie User’s manual 8. Once powered on, let the purifier purge to the atmosphere for 3 hours. After about 30 min of purging, the getter should have reached its operating temperature. You can confirm it by looking at the yellow LED and make sure that it is off. 9.
- Page 17 LDP1000 Serie User’s manual 5.5. Typical installation Suggested installation for a Noble Gas, Nitrogen, Carbon Dioxide or Oxygen Gas Purifier: Double Stage Stainless Steel regulator analytical instruments LDP1000 purifier Purging valve (Vent to atmosphere) UHP Grade 5.0 or better...
- Page 18 LDP1000 serie User’s manual 6. RS-232 serial communication For diagnostic purposes, the serial port can be connected to a computer to monitor the beds’ temperature. This feature can be used if for instance there is a temperature deviation alarm. On the computer, we recommend using the HyperTerminal to monitor the temperature.
- Page 19 LDP1000 serie User’s manual Figure 1: Serial communication settings 5. Once the HyperTerminal is configured, click on “OK” to open the connection. 6. The below screenshot shows an example of the transmitted data. New values will appear every 5 seconds. Temperature_1 the temperature of the first getter (also called 1st bed), and Temperature_2 is the temperature of the second getter (also called 2nd bed).
- Page 20 LDP1000 serie User’s manual 7. Drawings & Schematics 7.1. LDP1000 Standard and Large series wiring diagram Heater #2 Thermal Cutoff switch Heater #1 Red LED Thermocouple #1 Green LED Yellow LED Thermocouple #2 RS-232 Pin A CorcomPin C connector Module Pin B Pin D...
- Page 21 LDP1000 serie User’s manual 7.2. Compact-LDP1000 series wiring diagram Heater #1 Thermocouple #2 Heater #2 Thermocouple #1 Thermal Cutoff switch Programming connector Power cable Red, greed and Yellow LEDs 2 x Power fuses 1Amp RS-232 connector...
- Page 22 LDP1000 serie User’s manual 7.1. LDP1000 dimensional drawing...
- Page 23 LDP1000 serie User’s manual 7.2. Compact-LDP1000 dimensional drawing...
- Page 24 LDP1000 serie User’s manual 7.3. Large-LDP1000 with supporting plate dimensional drawing...
- Page 25 MULTIDETEK3 User’s manual 8. Maintenance and troubleshooting When operated under normal conditions, the lifespan of a getter vary between 3 and 5 years. When the compact-LDP1000 is saturated, the whole unit must be replaced. For the standard and large version, the getter can be replaced following the procedure on the section 8.3.
- Page 26 MULTIDETEK3 User’s manual PCB- PCB for LDP1000 and Capital part LDP1000/LargeLD LargeLDP1000 version P1000 GK1/8 Gasket FaceSeal 1/8 for purifiers Capital part with face seal fittings GK1/4 Gasket FaceSeal ¼ for purifiers Capital part with face seal fittings 8.2. Tools Some tools are required when doing a start-up, maintenance or troubleshooting on the LDP1000.
- Page 27 MULTIDETEK3 User’s manual Step 4: Remove the 4 screws securing the top plate. Figure 3: Top plate Step 6: Disconnect connectors on the circuit identified as J1, J2, J4 and J5. Refer to Figure 5 if Step 5: necessary. Remove screws bottom plate that secure...
- Page 28 MULTIDETEK3 User’s manual 8. Remove the old getter and install the new one by following the same steps in reverse order, except for replacing the front panel. 9. After replacing the getter, but before installing the front panel, power on the unit temporarily and short both pins of connector J7 to reset the microcontroller.
- Page 29 MULTIDETEK3 User’s manual 2. Remove the 4 screws securing the top plate ( Figure 3 3. Remove the 2 screws on the bottom plate that secure the front plate ( Figure 4 4. Prepare a 5N Helium or Argon gas source with a flow rate of 200 sccm and purify it using a purifier.
- Page 30 MULTIDETEK3 User’s manual...
- Page 35 Where innovation leads to success...
