PINS TO
SHORTCIRCUIT
CURVE BANK
-TWO POSITIONS-
BANK -1-
BANK -2-
CURVE SELECTOR
-FOUR POSITIONS-
+
C4
C3
C2
C1
BANK -1-
BRAKE SELECTOR
-FOUR POSITIONS-
MAXIMUM
BRAKE
+
100%
MINIMUM
BRAKE
+
C8
C7
C6
C5
BANK -2-
85
75
50

Advertisement

loading
Need help?

Need help?

Do you have a question about the LITE-EVO and is the answer not in the manual?

Questions and answers

Summary of Contents for SLOTING PLUS LITE-EVO

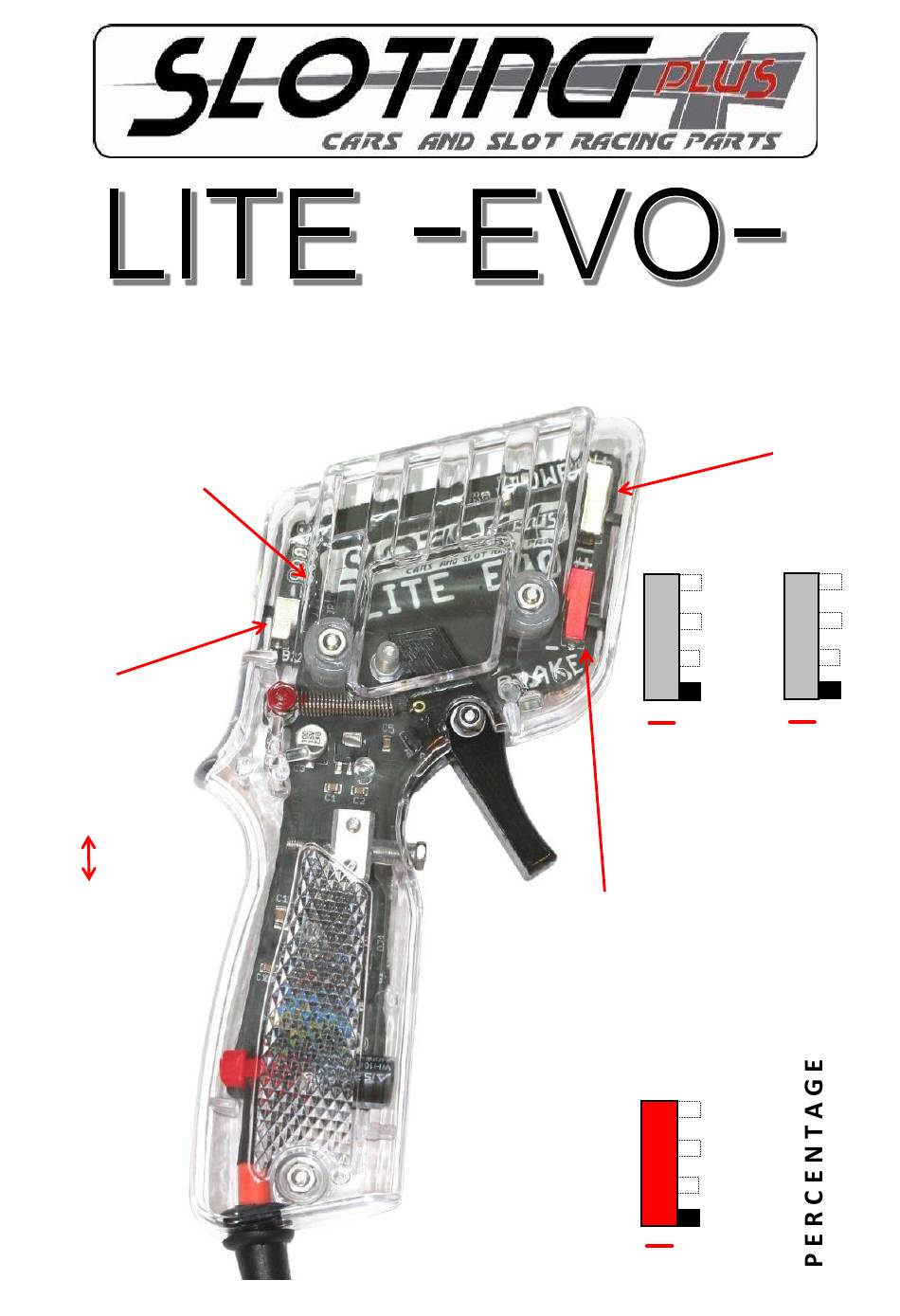

  • Page 1 CURVE SELECTOR -FOUR POSITIONS- PINS TO SHORTCIRCUIT CURVE BANK -TWO POSITIONS- BANK -1- BANK -2- BANK -1- BANK -2- BRAKE SELECTOR -FOUR POSITIONS- MAXIMUM BRAKE 100% MINIMUM BRAKE...
  • Page 2 TECHNICAL FEATURES OF THE CONTROLLER -LITE -EVO- - 100% electronic controller. - Built-in microcontroller. - Acceleration and brake control through PWM signals and Mosfet ..transistors. - No rheostat to corrode and fail. - Use the controller on tracks with positive or negative connection. - Green operating LED indicates track power.
  • Page 3 CURVE SELECTOR: You have 8 curves, four in SETUP -1- and four more in SETUP -2-. The setups are selected with switch (B1 switch up for setup-1 and B2 switch down for setup-2, both are printed on the plate). With switch you can select the four curves that are available in each setup, and we can switch between them following symbols printed on the...
  • Page 4 TRIGGER CALIBRATION: The track must have power and there must be no cars on the track lane. 1st Plug in the controller (the green LED will light up) and, ..WITHOUT TOUCHING THE TRIGGER-, gently touch the two pins (located on the back/side of the case) with a metal object for a moment to cause a short circuit.
  • Page 5 Reassemble the entire assembly in the reverse order, remembering to put the washers (one at each end of the cylinder) and -DO NOT- tighten the trigger screw -T2- too hard as it is self-locking. Once the trigger assembly is complete, make sure that it operates smoothly and then you must calibrate the trigger.
  • Page 6 -PINS- CONNECTIONS SCHEME WHITE BLUE POWER SUPLY GREEN-YELLOW BLACK TRACK-MOTOR BROWN POWER SUPLY...
  • Page 7 POSITIVE CONNECTION POLARITY CONTROLLER -STANDARD- DIRECTION OF TURN POWER SUPLY FUSE VERY IMPORTANT Before connecting the controller to the track, make sure that the polarity of the track corresponds to that of the controller (positive polarity) If you want to change the direction of rotation for the car on the track, you ONLY have to change the connections on the track rails.
  • Page 8 Sloting Plus, S.L. Aigua Nova, 3-A baixos 2 43204 Reus - Tarragona - SPAIN +34 977 30 18 08 www.sloting.com - info@sloting.com The manufacturer reserves the right to modify and/or change the design or parts thereof without prior notice.
