Summary of Contents for WATSON Alle Mobile Planter

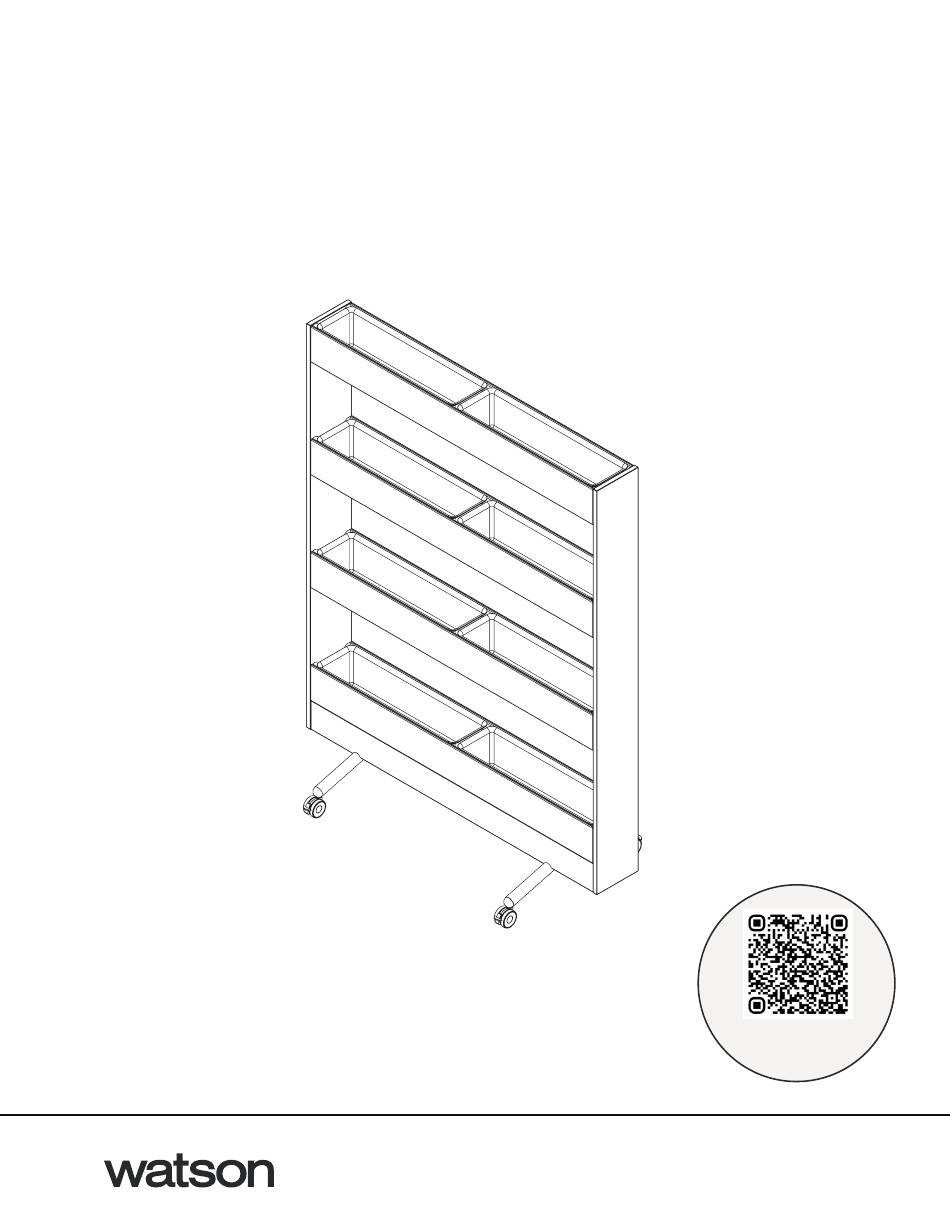

- Page 1 ASSEMBLY Allé Mobile Planter View Digitally V.24.0 10/2024 360.394.1300 watsonfurniture.com...
- Page 2 Hardware 8mm length Screw, M8 Cone Tip Set (0002791) M8-1.25 x 25mm 20 x 14 x 6mm Screw, Low Head Nut, Rectangular (0002870) (0002935) Planter Tray Optional (0002821) 2 ALLÉ MOBILE PLANTER ASSEMBLY INSTRUCTIONS...
- Page 3 Parts Planter Case Assembly Mobile Leg Assembly 3 ALLÉ MOBILE PLANTER ASSEMBLY INSTRUCTIONS...
- Page 4 Secure Legs to Extrusion Loosely secure the T-nut (PN 0002935) with the M8 screw (0002870) through the center casting of each leg assembly. Slide the T-nut and center casting of the leg assembly into the corresponding channel of the aluminum extrusion. The leg assembly will need to slide along the length of the extrusion into their final position in the case assembly.
- Page 5 Insert Mobile Legs into Case Assembly Slide the leg assemblies along the extrusion until they are aligned with the holes in the bottom of the lower panels. Insert each leg assembly into the lower panel holes. Insert a set screw (PN 0002791) into each housing (PN 0002790) in the lower case panel and fully tighten in place.
- Page 6 Place Planter Trays into Troughs If optioned with plastic planter trays, place QTY: 2 into each trough level of the planter assembly.. Planter Tray Optional (0002821) (x6-8) 6 ALLÉ MOBILE PLANTER ASSEMBLY INSTRUCTIONS...
