Sentino™ filter dispenser

Operating Instructions

Original instructions

cytiva.com

Need help?

Do you have a question about the Sentino 13184 and is the answer not in the manual?

Questions and answers

Summary of Contents for cytiva Sentino 13184

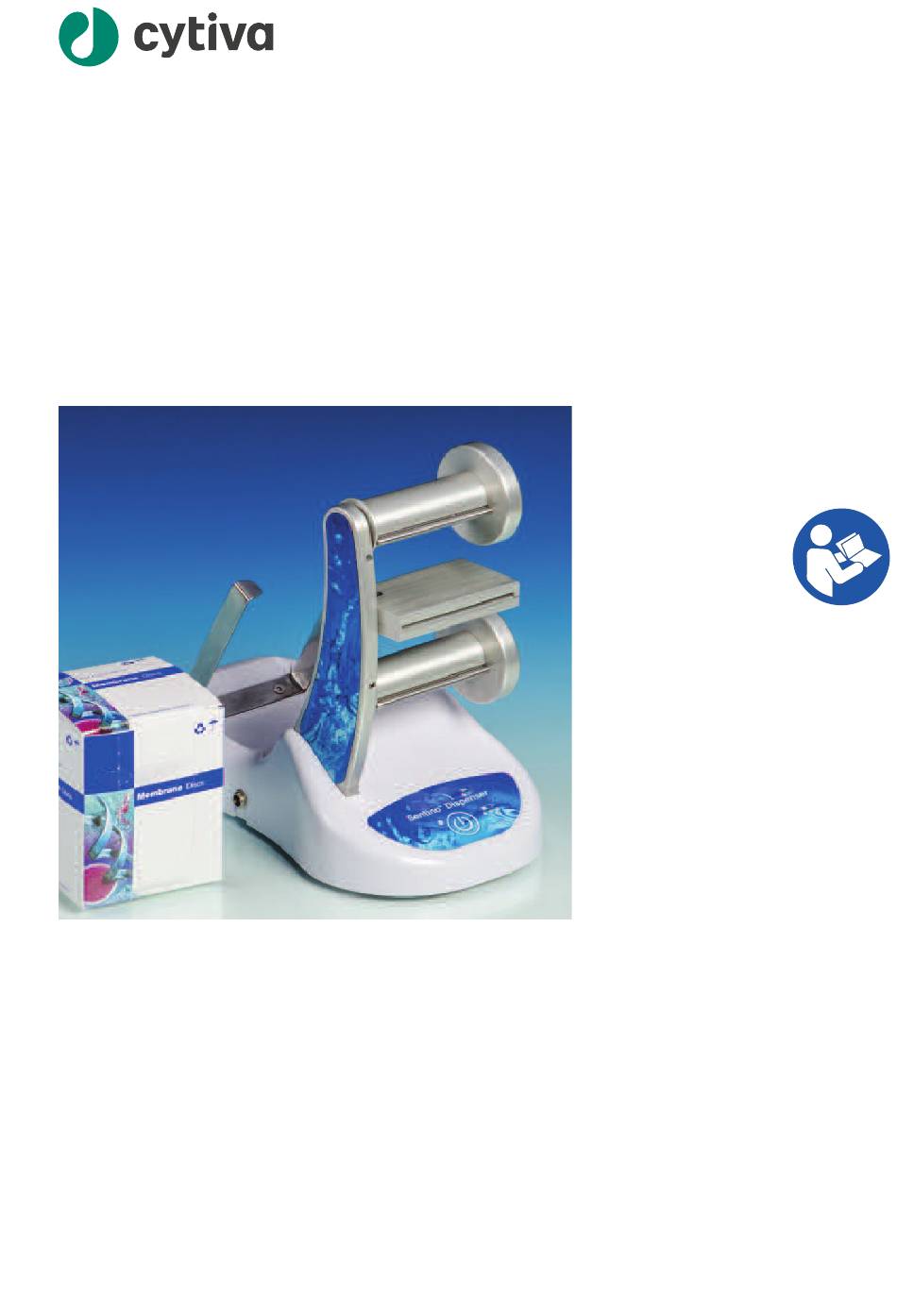

Page 1 Sentino™ filter dispenser Operating Instructions Original instructions cytiva.com...
Page 2 Table of Contents Table of Contents Introduction ......................3 Important user information ........................4 About this manual ............................5 Associated documentation ........................6 Safety instructions ..................... 7 Safety precautions ............................8 Labels and symbols ............................10 System description .................... 11 Operation ......................
Page 3 1 Introduction Introduction About this chapter This chapter contains information about this manual and associated user documenta- tion, important user information, and intended use of the product. In this chapter Section See page Important user information About this manual Associated documentation Sentino filter dispenser Operating Instructions 89965 AA...
Page 4 1 Introduction 1.1 Important user information Important user information Introduction This section contains important user information about the product and this manual. Read this before operating the product All users must read the entire Operating Instructions before installing, oper- ating, or maintaining the product. Always keep the Operating Instructions at hand when operating the product.
Page 5 1 Introduction 1.2 About this manual About this manual Introduction This section contains information about the purpose and scope of this manual, notes and tips, and typographical conventions. Purpose of this manual This manual provides information needed to install, operate, and perform maintenance in a safe way.
Page 6 1 Introduction 1.3 Associated documentation Associated documentation Access user documentation online Scan the QR code or visit cytiva.com/instructions. Enter the title or the document number to access the file. Sentino filter dispenser Operating Instructions 89965 AA...
Page 7 2 Safety instructions Safety instructions About this chapter This chapter describes safety precautions, labels, and symbols. In this chapter Section See page Safety precautions Labels and symbols Important WARNING All users must read and understand the entire contents of this general safety chapter, and the specific safety precau- tions information in each subsequent chapter of this manual to become aware of the hazards involved.
Page 8 2 Safety instructions 2.1 Safety precautions Safety precautions Introduction This section describes the general hazards you must be aware of before performing installation, operation, or maintenance. Definitions This user documentation contains safety notices (WARNING, CAUTION, and NOTICE) concerning the safe use of the product. See definitions below. WARNING WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
Page 9 2 Safety instructions 2.1 Safety precautions WARNING Do not immerse. WARNING Appropriate care must always be taken when using electrical equipment around aqueous solutions in the laboratory. WARNING Only use parts approved by the manufacturer. WARNING For laboratory use only and must not be used in a manner other than indicated.
Page 10 2 Safety instructions 2.2 Labels and symbols Labels and symbols Nameplate The nameplate provides information about the model, manufacturer, and technical data. Description of symbols and text The following symbols and text can be present on the nameplate: Symbol / Description text Warning! Read the user documentation before using the system.
Page 11 3 System description System description About this chapter This chapter gives an overview of the Sentino filter dispenser, and a brief description of its function. Introduction The membrane filtration (MF) technique is a method of analyzing aqueous samples for microbial contamination. A fluid sample is pulled through a membrane filter and the filter is placed on growth media and incubated.
Page 12 3 System description Keypad The image below shows a Sentino filter dispenser keypad. Part Description Main power indicator Membrane dispense button Battery charge indicators Battery status indicator Sentino filter dispenser Operating Instructions 89965 AA...
Page 13 3 System description Body The image below shows the body of Sentino filter dispenser. Part Description Upper spool with retainer clip (slides horizontally off spool as shown) Retention groove Retainer clip pin Retainer clip knob Positioning sensor Guide plates Lower spool with retainer clip Upright support Sentino filter dispenser Operating Instructions 89965 AA...
Page 14 3 System description Base The image below shows bottom view of the Sentino filter dispenser. Part Description Refill pack holder Product identification label Sentino filter dispenser Operating Instructions 89965 AA...
Page 15 3 System description Power The image below shows the power cords for Sentino filter dispenser. Part Description Power cord (EU, UK and NA plugs are included in each instrument) Transformer input interface Transformer power entry plug (power socket centrally located on back of unit, not shown) Keypad functionality See the below table for keypad controls and functionality.
Page 16 3 System description Button Symbol Description Battery charge When operating on battery power, indicator three blue LED lights will illuminate to indicate the relative level of battery charge when the dispense button is pressed. • All three LED's will illuminate after pressing the dispense button when the battery is fully charged or near full charge.
Page 17 4 Operation Operation About this chapter This chapter gives instructions on how to operate the Sentino filter dispenser in a safe way. Connecting power supply and charging Follow the steps below to connect power supply and to charge battery. Step Action Position the Sentino filter dispenser on a laboratory bench.
Page 18 4 Operation Installing the filter refill pack The Sentino filter dispenser is designed to accommodate Cytiva dispenser refill packs. Follow the steps below to install the filter refill pack. Step Action Remove lid flaps of the membrane refill box. Remove U-shaped cut-out for viewing end of pack when loaded in the dispenser.
Page 19 4 Operation Step Action Remove retainer clips from upper and lower spools. Insert the fan folded media between the membrane guide plates as shown in the image below and pull 1½ filters between the guide plates. Separate the film layer from the paper layer, wrap the clear film in a counter clockwise direction over the retention groove positioned at the 2 o’clock position.
Page 20 4 Operation Step Action Replace the upper retainer clip and secure the film by catching the end of the film between one pin of the retainer clip and the retention groove on the spool. Note: To avoid jamming, it is only necessary to capture the film with one side of the retention clip.
Page 21 4 Operation Step Action Press membrane dispense button to dispense a single disc of membrane. Note: At any point at idle operation, the retainer knobs can be used to adjust the tension of the refill web on the spools. Sentino filter dispenser Operating Instructions 89965 AA...
Page 22 Sentino filter dispenser. Safety precautions WARNING Do not immerse. NOTICE The dispenser is designed only for use with Cytiva membrane refill packs. Note: Save original packaging for service and warranty repairs. Cleaning body and plates Surfaces may be wiped down with a towel moderately soaked in the following common laboratory sanitizing solutions: •...
Page 23 Unplug from main power and press membrane dispense button to check battery charge indica- tors. Plugged into Battery failing to charge Contact Cytiva. main power source, blue battery status indi- cator not illu- minated, only left most...
Page 24 Tear off web at properly on perforation and reload per the spool. instructions (see Installing the filter refill pack, on page 18). If the above corrective actions do not remedy the problem, contact Cytiva Sentino filter dispenser Operating Instructions 89965 AA...
Page 25 7 Reference information Reference information About this chapter This chapter lists the technical specifications of the Sentino filter dispenser. The chapter also includes recycling information, regulatory information and ordering infor- mation. In this chapter Section See page Specifications Recycling information Regulatory information Ordering information Sentino filter dispenser Operating Instructions 89965 AA...
Page 26 7 Reference information 7.1 Specifications Specifications Parameter Specification Materials of construction Housing material: Polycarbonate ABS-blended polymer Keypad and label: polyester Bottom plate: anodized aluminum Upright: anodized aluminum Spools: anodized aluminum Guide plates: anodized aluminum Retainer clips: stainless steel with anodized aluminum knobs Box retainer: stainless steel Foot pads: rubber...
Page 27 Recycling of hazardous substances The product contains hazardous substances. Detailed information is available from your Cytiva representative. Disposal of electrical components Waste electrical and electronic equipment must not be disposed of as unsorted munic- ipal waste and must be collected separately.
Page 28 7 Reference information 7.3 Regulatory information Regulatory information Introduction This section lists the regulations and standards that apply to the product. Your product is marked or listed according to the applicable regulatory requirements for your region. Local language translations are only provided according to regulatory requirements. In this section Section See page...
Page 29 To find local contact information for support and sending troubleshooting reports, visit cytiva.com/contact. Manufacturing information The table below summarizes the required manufacturing information. Requirement Information Name and address of manufacturer Cytiva Puerto Rico Pall Boulevard Road 194 KM 0.4 Fajardo, PR 00738 Sentino filter dispenser Operating Instructions 89965 AA...
Page 30 7 Reference information 7.3 Regulatory information 7.3.2 European Union and European Economic Area 7.3.2 European Union and European Economic Area Introduction This section describes the information that applies to the product in the European Union and European Economic Area. Conformity with EU Directives Refer to the EU Declaration of Conformity for the directives and regulations that apply for the CE marking.
Page 31 7 Reference information 7.3 Regulatory information 7.3.3 South Korea 7.3.3 South Korea Introduction This section describes the information that applies to the product in the Republic of Korea. Compliance statement NOTICE Class A equipment (equipment for business use). This equipment has been evaluated for its suitability for use in a business environment.
Page 32 7 Reference information 7.3 Regulatory information 7.3.4 General regulatory statements 7.3.4 General regulatory statements Introduction This section describes the information that is applicable to more than one geograph- ical region. EMC emission, CISPR 11: Group 1, Class A statement NOTICE This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments.
Page 33 7 Reference information 7.4 Ordering information Ordering information Sentino filter dispenser Part Description 13184 (1) Power transformer (1) European power cord with CEE 7/7 plug (1) UK power cord with BS1363 plug (1) NA power cord with NEMA 5-15P (1) Operating Instructions Accessories (dispenser pack refills) Part Description...
Page 34 QR code. cytiva.com Cytiva and the Drop logo are trademarks of Life Sciences IP Holdings Corporation or an affiliate doing business as Cytiva. Merticel, Sentino, and Supor are trademarks of Global Life Sciences Solutions USA LLC or an affiliate doing business as Cytiva.
