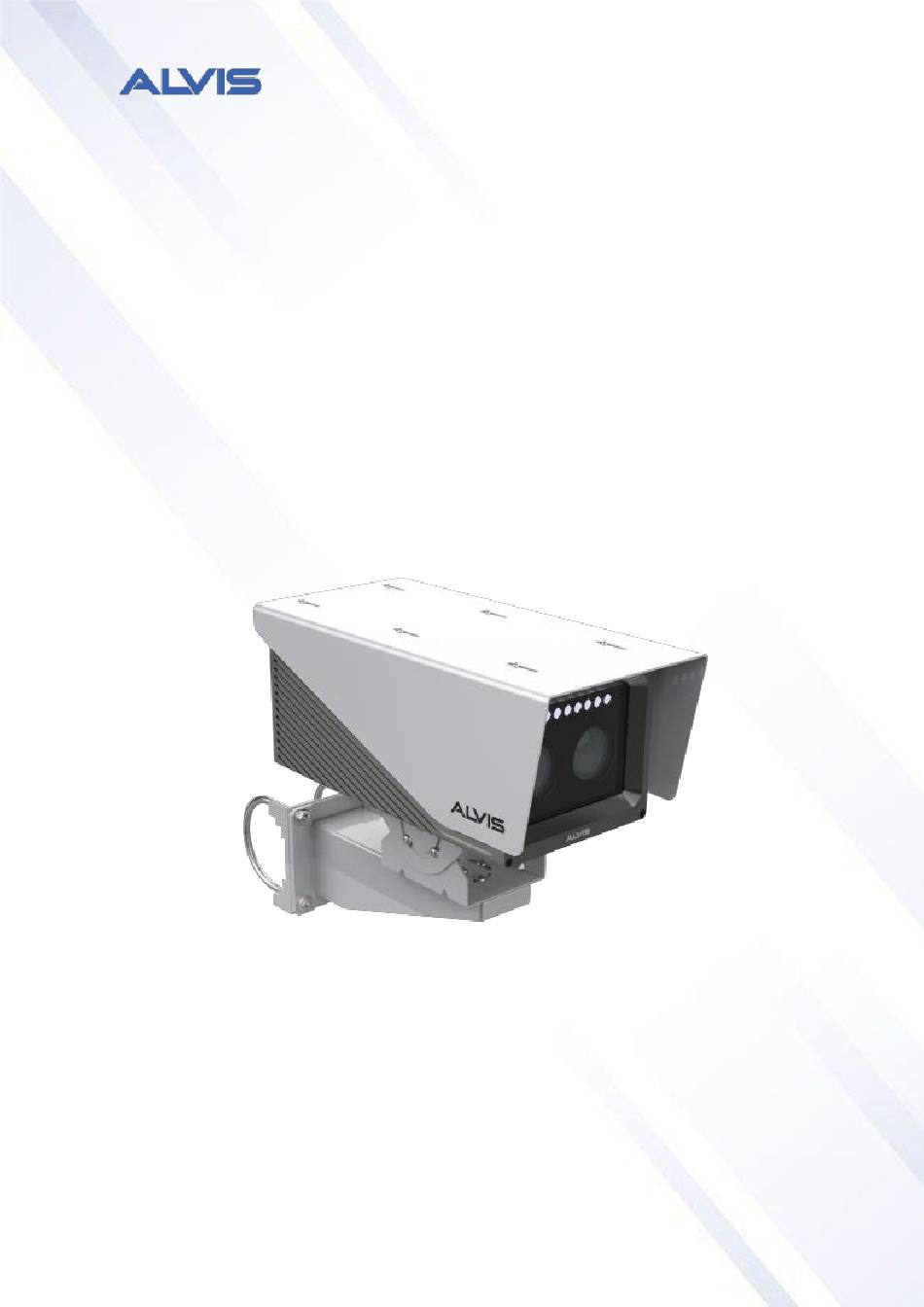

- Page 1 INSTALLATION GUIDE Models: ALVIS T1B Intersection Enforcement Camera ALVIS S1B Smart Box Camera WWW.ERABYTE.US...
- Page 2 Document version: 2022.10.20 TABLE OF CONTENTS Step 1: Check list of camera accessories ..................2 Step 2: Assemble the bracket into the camera ................2 Step 3: Mounting the camera to the pole ..................3 Step 4: Roll and pitch camera to the required position ..............4 Step 5: Install safety cable ........................
- Page 3 Step 1: Check list of camera accessories Accessory Image Quantity Hex Socket Button M6×10 6 Pcs Hex Socket Button M4×10 4 Pcs U-bolt M8 2 Pcs Bracket base 1 Pcs Bracket body 1 Pcs Power Cable 1 Pcs Safety cable 1 Pcs Waterproof RJ Plug Cable 1 Pcs...
- Page 4 Place the bracket on the camera as shown in Figure 2, and use the hex key wrench to twist the bolt so that it is tight and firm. Figure 1. Bracket assembly Step 3: Mounting the camera to the pole Accessories used: ●...
- Page 5 Figure 2. Pole mounting Step 4: Roll and pitch camera to the required position α: Camera installation angle (4° to 18°) ØD: Diameter of tapered Mast Arm (Max 90mm)
- Page 6 Figure 3. Camera installation angle...
- Page 7 Step 5: Install safety cable Accessories used ● Safety cable: 1 pcs Figure 4. Safety cable installation 1 Unlock a safety cable head, thread the cable into the hole on the camera bottom (Figure 4).
- Page 8 Figure 5. Safety cable installation 2 Unlock the other safety cable head, wrap the cable around the pole, then lock it (Figure 5). CONTACT INFORMATION Erabyte Inc. PNC Plaza, 20 S 3rd St, Suite 210, Columbus, OH 43215 Web: www.erabyte.ai Email: support@erabyte.us...
